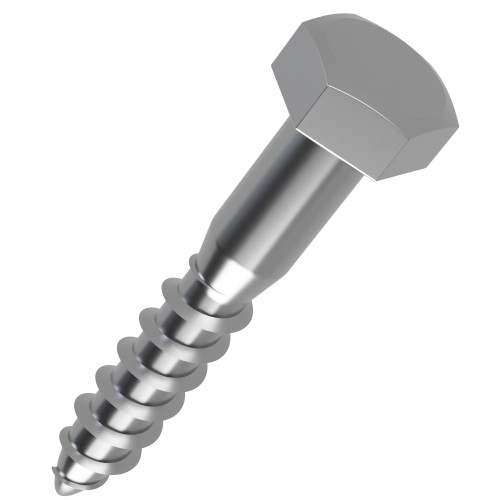

10mm x 140mm Coach Screw (DIN 571) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £2.52 | £3.02 |
| 50 - 99 | £2.27 | £2.72 |
| 100 - 499 | £2.04 | £2.45 |
| 500 - 999 | £1.89 | £2.27 |
| 1000 + | £1.73 | £2.08 |
£3.02 / each
.png)
Product Specification
| Size | 10mm |
| Length | 140mm |
| Head Height | 7mm |
| Thread Length | 84mm |
| Material | A4 Stainless Steel |
| Across Flats | 17mm |
| Shank Diameter | 10mm |
| Standard | DIN 571 |
Frequently Bought Together
Total Price: £0.00
M10 x 140mm Coach Screw DIN 571 | A4 Stainless Steel
For projects needing a a4 stainless steel coach screw with measurable grip, this M10 x 140mm coach screw uses a 10mm shank diameter, 7mm head height and 84mm thread length to secure timber-to-timber or metal-to-timber joints. It gives specifiers a precise a4 stainless steel coach screw option for timber projects requiring A4 Stainless Steel.
Marine grade A4 stainless steel is well suited to wet, coastal and high exposure locations where stronger corrosion resistance is needed around timber frameworks. The dimensions make it easier to match the fixing to brackets, timber members and washers where additional load spread is needed. The 10mm diameter gives a balanced option for everyday joinery, fencing and support frame installation.
Common Applications
- Fencing, gates and timber access structures
- Securing hinges, plates and straps to timber
- Coastal timber frameworks and exposed garden structures
- Landscape carpentry and sleeper assembly

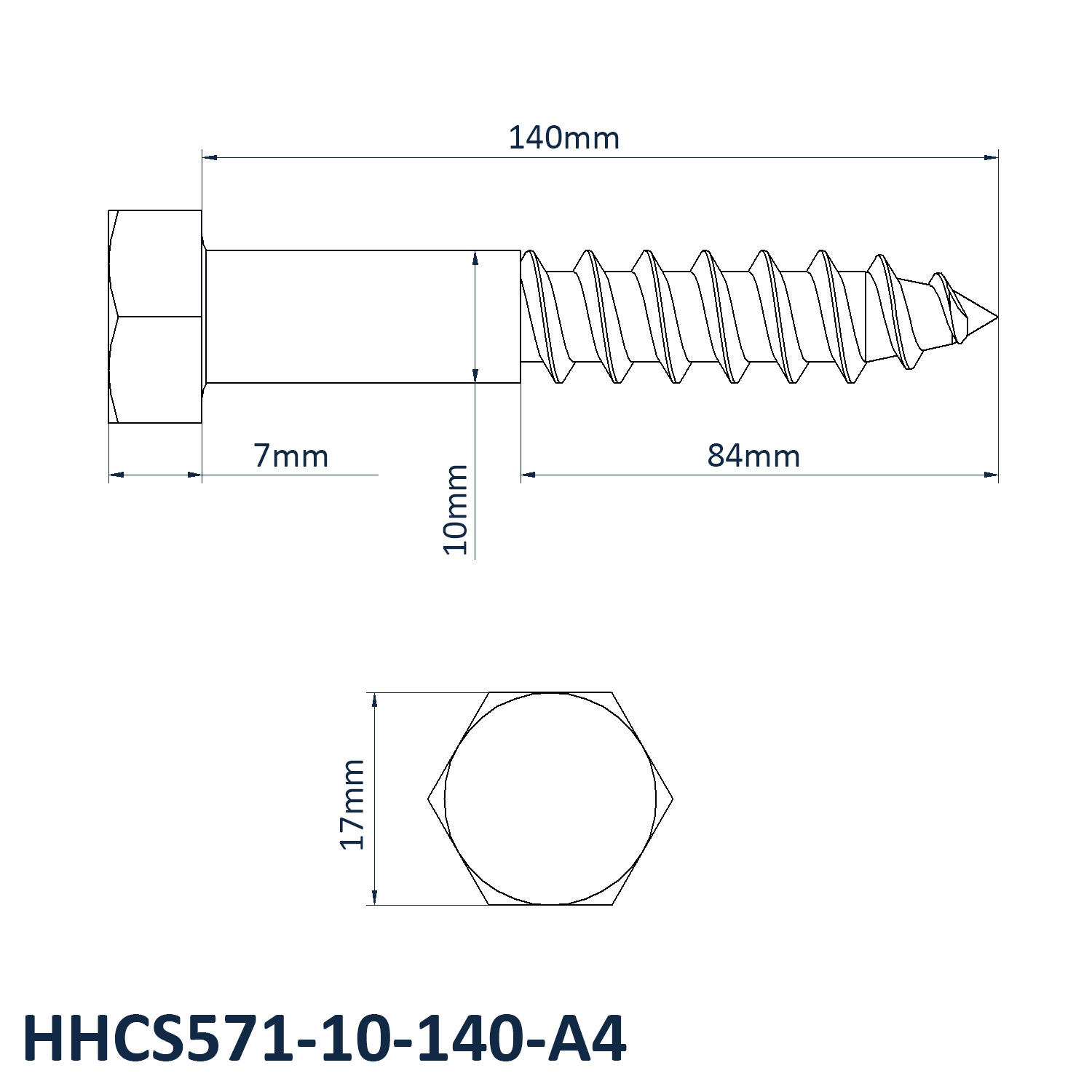

M10 x 140mm Coach Screw Dimensions
- Size: 10mm
- Length: 140mm
- Across Flats: 17mm
- Head Height: 7mm
- Thread Length: 84mm
- Shank Diameter: 10mm
- Material: A4 Stainless Steel
- Standard: DIN 571
Coach Screw Buying Guide
Match the across flats value to the correct spanner or socket before fitting. A controlled installation helps protect the head and gives a more secure fixing. Click here to read our coach screws guide.
For matching sizes and material options, view our Coach Screws DIN 571 page or read the Vital Parts coach screws guide.
