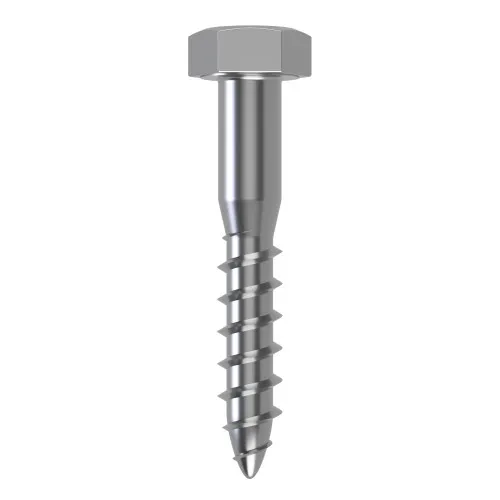

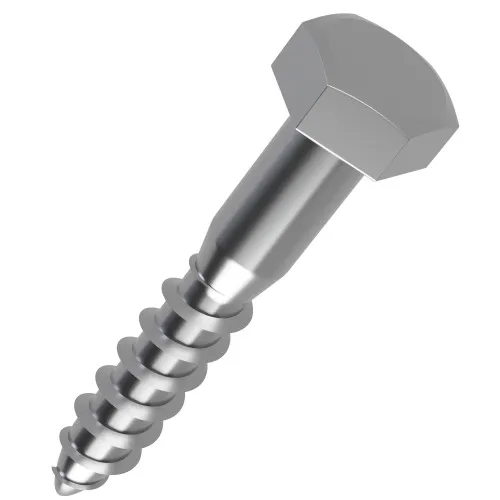

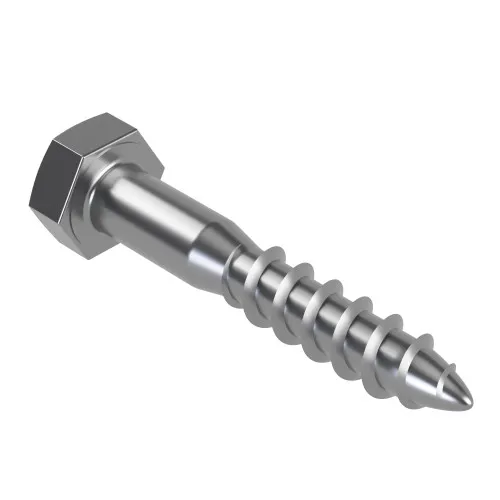

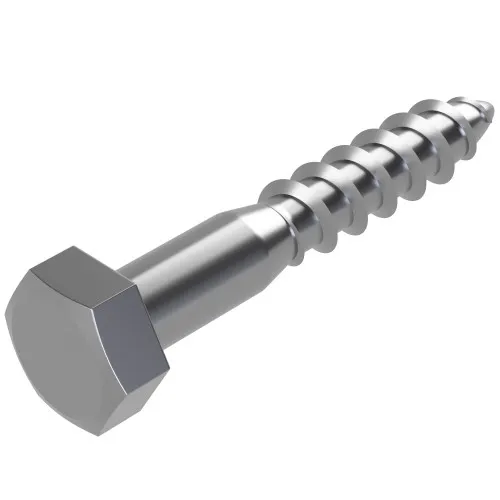

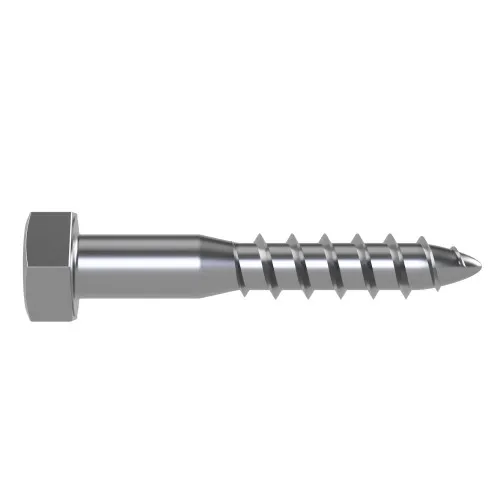

10mm x 160mm Coach Screw (DIN 571) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £4.44 | £5.33 |
| 50 - 99 | £4.00 | £4.80 |
| 100 - 499 | £3.60 | £4.32 |
| 500 - 999 | £3.33 | £4.00 |
| 1000 + | £3.06 | £3.67 |
£5.33 / each
.png)
Product Specification
| Size | 10mm |
| Length | 160mm |
| Head Height | 7mm |
| Thread Length | 96mm |
| Material | A4 Stainless Steel |
| Across Flats | 17mm |
| Shank Diameter | 10mm |
| Standard | DIN 571 |
Frequently Bought Together
Total Price: £0.00
M10 x 160mm Coach Screw DIN 571 | A4 Stainless Steel
This M10 x 160mm coach screw is a 10mm coach screw for timber platform construction, combining DIN 571 dimensional control with A4 Stainless Steel construction and a 7mm high hex head. It is particularly useful for coastal timberwork, marine-adjacent joinery and exposed outdoor structures where a 10mm coach screw needs a clear measurable specification.
Marine grade A4 stainless steel is well suited to wet, coastal and high exposure locations where stronger corrosion resistance is needed around timber frameworks. The long shank and threaded section work together to provide bite in timber while leaving enough plain body for alignment through the upper component. The 10mm diameter gives a balanced option for everyday joinery, fencing and support frame installation.
Common Applications
- Roofing battens, bearers and heavy timber fixings
- Joinery projects requiring a hex head wood screw
- Coastal timber frameworks and exposed garden structures
- Agricultural sheds and timber equipment surrounds

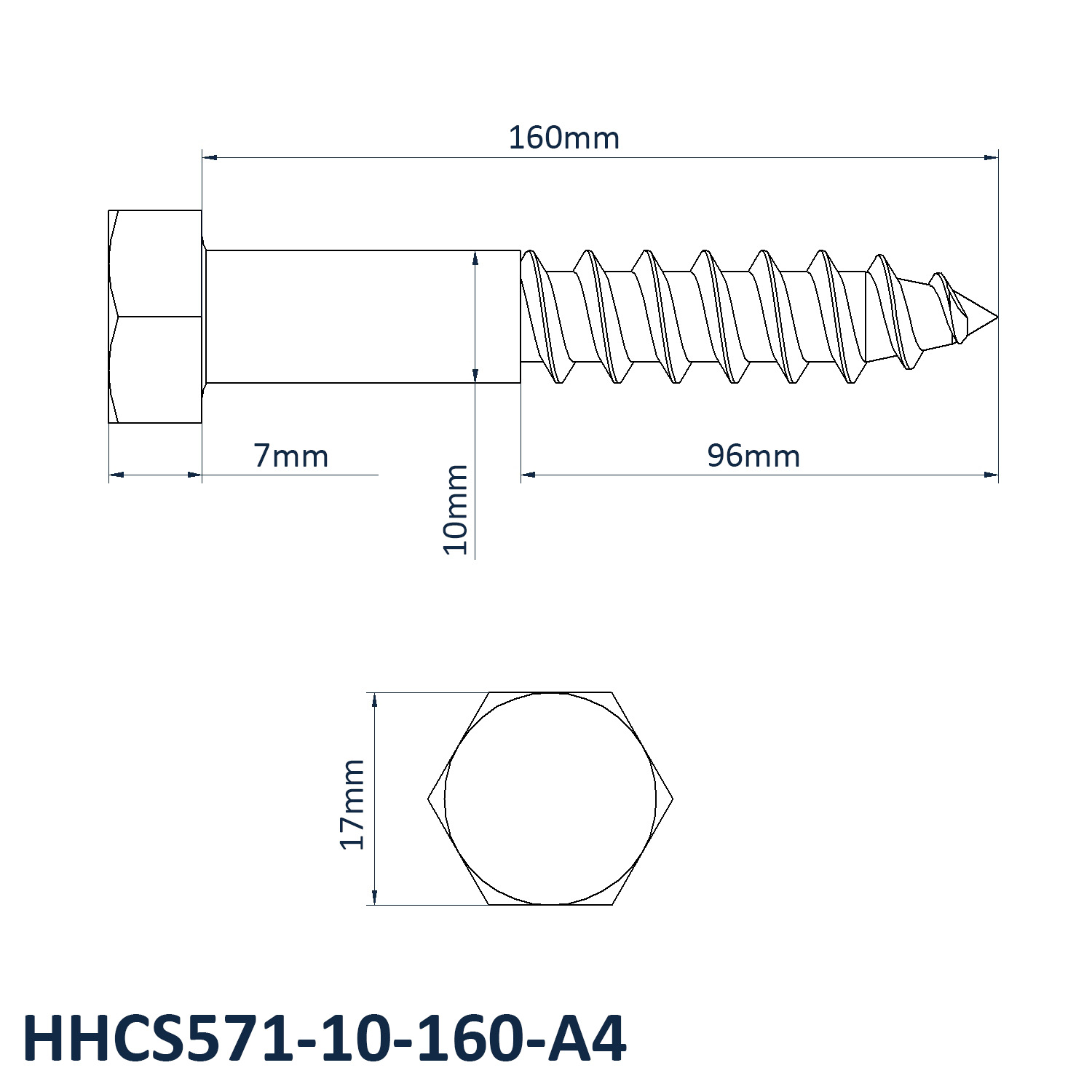

M10 x 160mm Coach Screw Dimensions
- Size: 10mm
- Length: 160mm
- Across Flats: 17mm
- Head Height: 7mm
- Thread Length: 96mm
- Shank Diameter: 10mm
- Material: A4 Stainless Steel
- Standard: DIN 571
Coach Screw Buying Guide
For best results, drill a pilot hole before installation. Our coach screw guide explains sizing, pilot hole selection and typical uses for timber fixing work. Click here to read our coach screws guide.
View our full Coach Screws DIN 571 range or read our coach screws guide for extra advice on sizes, materials and installation.
