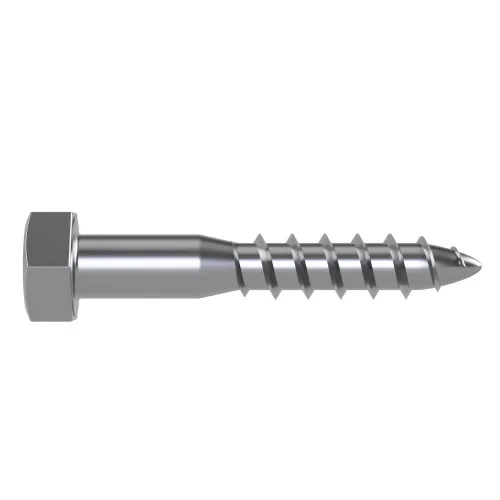

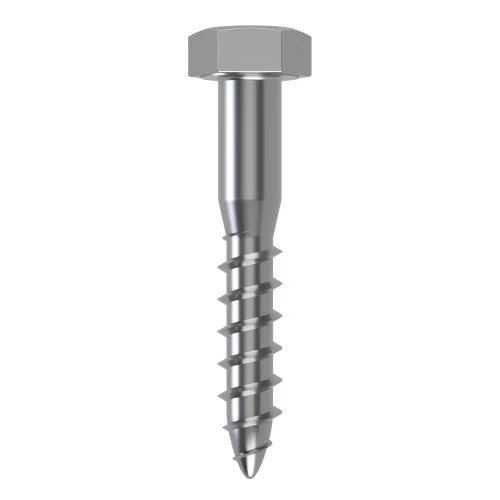

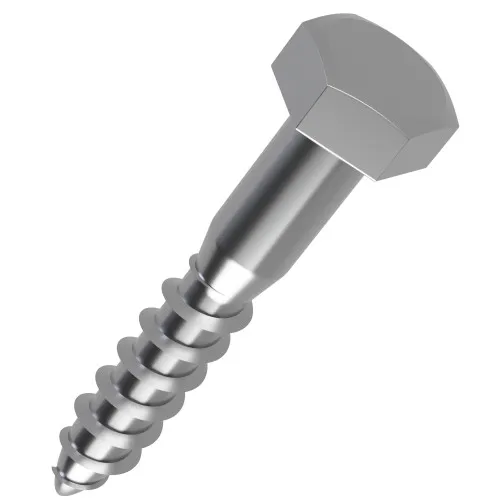

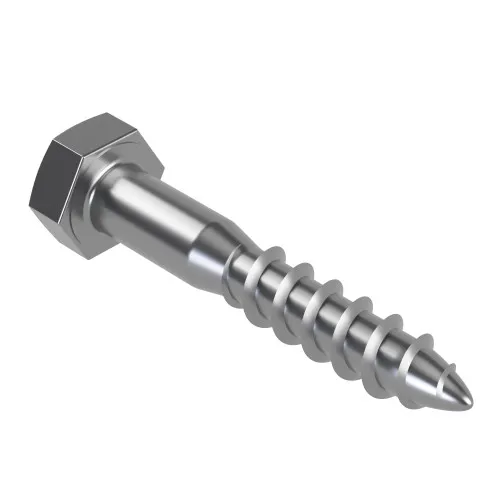

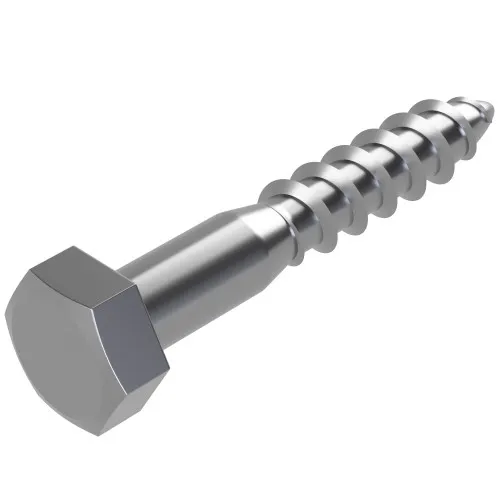

12mm x 180mm Coach Screw (DIN 571) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £5.36 | £6.43 |
| 50 - 99 | £4.83 | £5.79 |
| 100 - 499 | £4.34 | £5.21 |
| 500 - 999 | £4.02 | £4.82 |
| 1000 + | £3.69 | £4.43 |
£6.43 / each
.png)
Product Specification
| Size | 12mm |
| Length | 180mm |
| Head Height | 8mm |
| Thread Length | 108mm |
| Material | A4 Stainless Steel |
| Across Flats | 19mm |
| Shank Diameter | 12mm |
| Standard | DIN 571 |
Frequently Bought Together
Total Price: £0.00
M12 x 180mm Coach Screw DIN 571 | A4 Stainless Steel
A useful option for gate strap hinge fixing, this M12 x 180mm coach screw provides a hex head fixing with 19mm across flats and a tapered point that helps start the screw into prepared timber. The 180mm length helps provide the reach required for gate strap hinge fixing without moving away from the DIN 571 coach screw pattern.
Marine grade A4 stainless steel is well suited to wet, coastal and high exposure locations where stronger corrosion resistance is needed around timber frameworks. It is useful for repairs and new builds where the installer needs a serviceable hex head fixing that can be tightened with common hand tools. The larger 12mm shank makes it suitable for heavier timber sections, support posts and bracket assemblies.
Common Applications
- Large timber brackets and beam fixings
- Framework repairs in workshops and yards
- Coastal timber frameworks and exposed garden structures
- Structural-looking timber assemblies needing a bold hex head

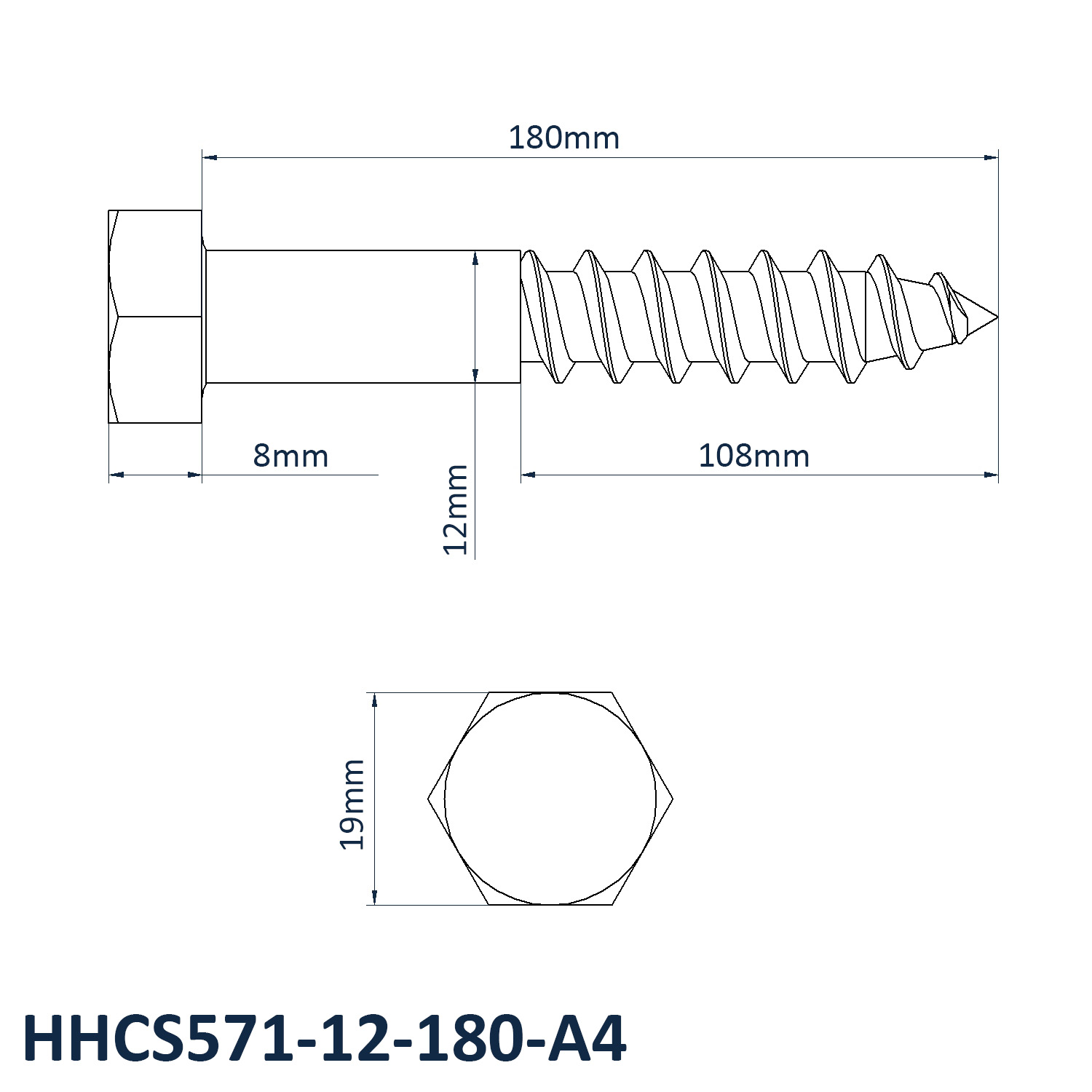

M12 x 180mm Coach Screw Dimensions
- Size: 12mm
- Length: 180mm
- Across Flats: 19mm
- Head Height: 8mm
- Thread Length: 108mm
- Shank Diameter: 12mm
- Material: A4 Stainless Steel
- Standard: DIN 571
Coach Screw Buying Guide
Match the across flats value to the correct spanner or socket before fitting. A controlled installation helps protect the head and gives a more secure fixing. Click here to read our coach screws guide.
View our full Coach Screws DIN 571 range or read our coach screws guide for extra advice on sizes, materials and installation.
