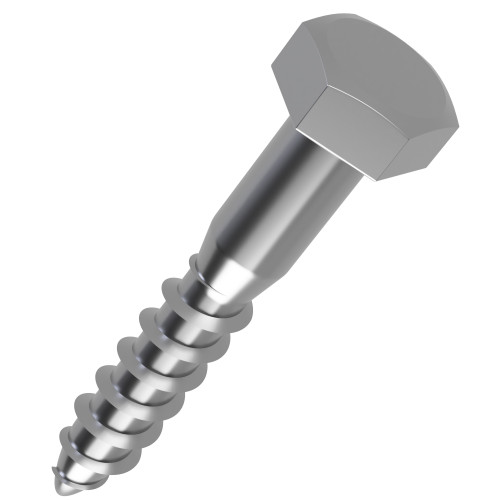

12mm x 220mm Coach Screw (DIN 571) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £6.09 | £7.31 |
| 50 - 99 | £5.48 | £6.58 |
| 100 - 499 | £4.93 | £5.92 |
| 500 - 999 | £4.57 | £5.48 |
| 1000 + | £4.19 | £5.03 |
£7.31 / each
.png)
Product Specification
| Size | 12mm |
| Length | 220mm |
| Head Height | 8mm |
| Thread Length | 132mm |
| Material | A2 Stainless Steel |
| Across Flats | 19mm |
| Shank Diameter | 12mm |
| Standard | DIN 571 |
Frequently Bought Together
Total Price: £0.00
M12 x 220mm Coach Screw DIN 571 | A2 Stainless Steel
Built for repeatable timber fastening, this 12mm x 220mm Coach Screw provides a 132mm thread length and 19mm hex head size so the correct socket or spanner can be selected before fitting. The 220mm length helps provide the reach required for wooden display structure assembly without moving away from the DIN 571 coach screw pattern.
A2 stainless steel provides good corrosion resistance for damp, external and decorative joinery applications without the need for an additional plated finish. The DIN 571 form gives a familiar coach screw profile for specifiers replacing like-for-like fasteners in existing timber assemblies. The larger 12mm shank makes it suitable for heavier timber sections, support posts and bracket assemblies.
Common Applications
- Landscape sleepers and external timber retaining work
- Fence posts, rails and support brackets
- Decking, sheds and damp workshop areas
- Site installation where spanner access is available

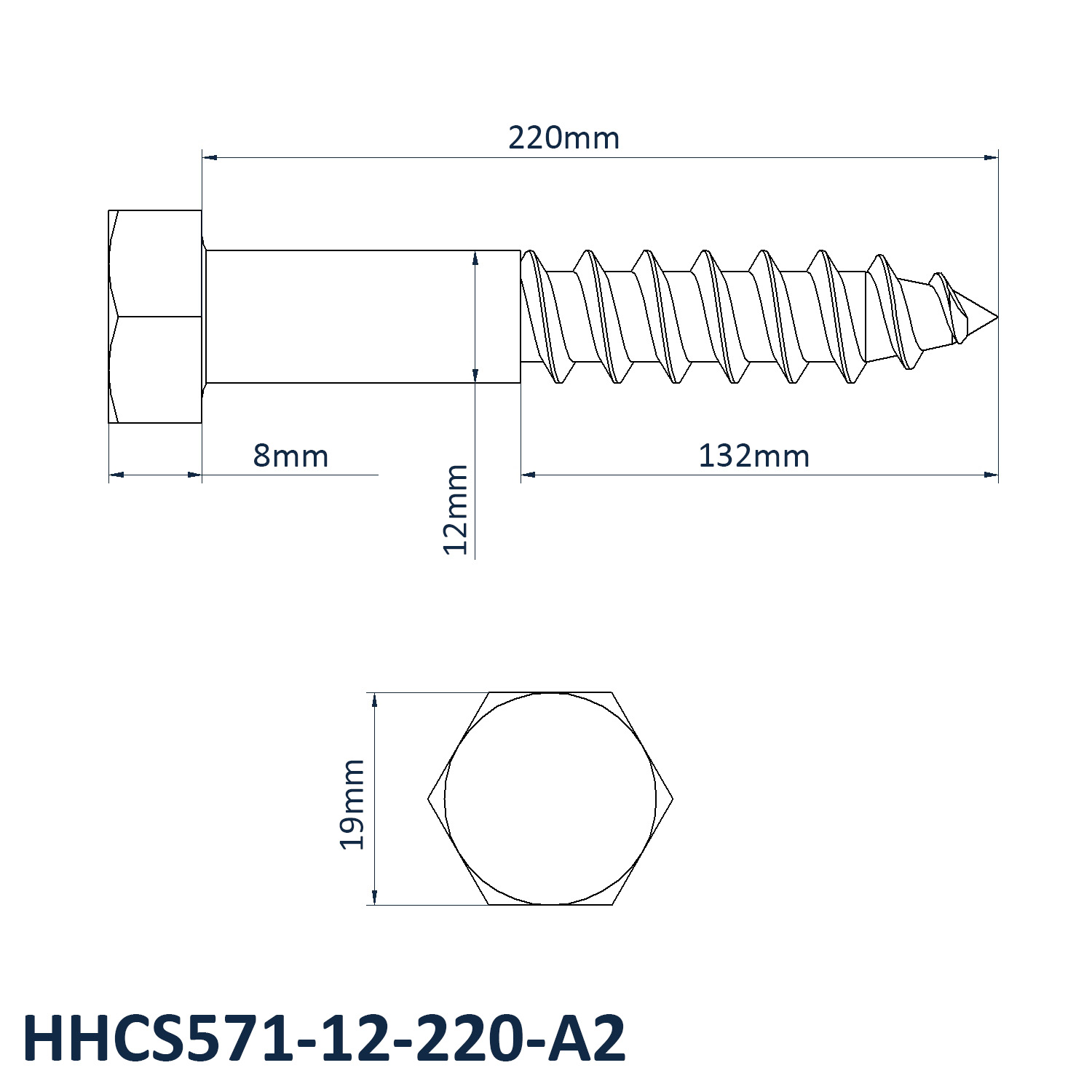

M12 x 220mm Coach Screw Dimensions
- Size: 12mm
- Length: 220mm
- Across Flats: 19mm
- Head Height: 8mm
- Thread Length: 132mm
- Shank Diameter: 12mm
- Material: A2 Stainless Steel
- Standard: DIN 571
Coach Screw Buying Guide
Check the screw size, material grade and installation environment before ordering. The coach screw guide gives extra help for selecting the correct length and finish. Click here to read our coach screws guide.
Explore the full DIN 571 Coach Screws range and use our coach screw guide when comparing sizes, pilot holes and applications.
