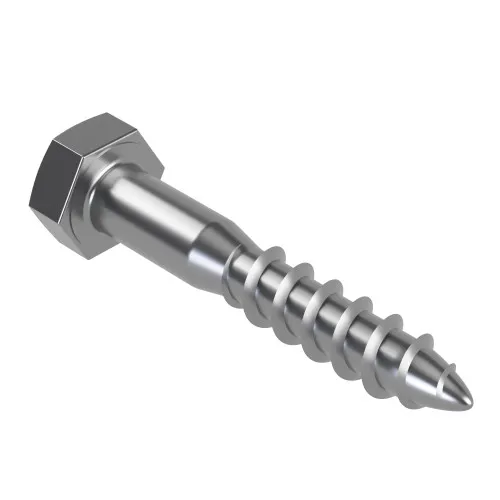

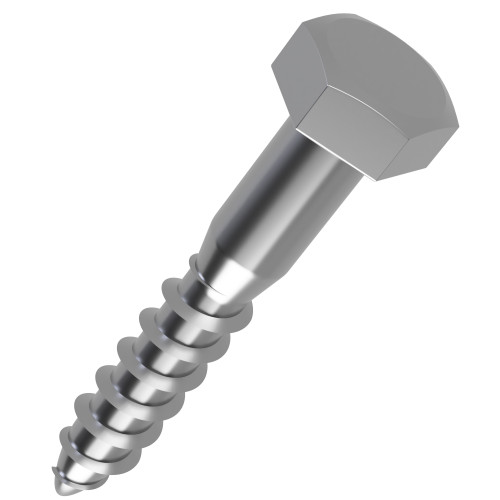

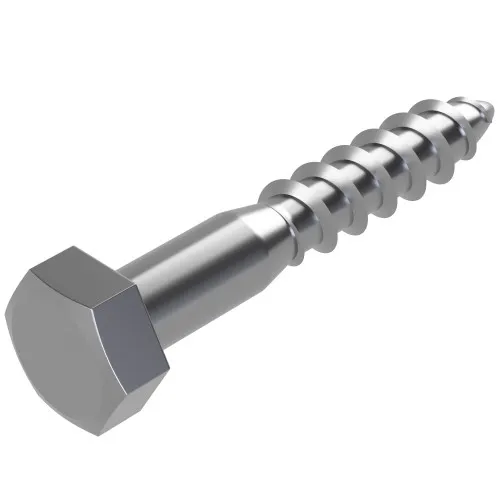

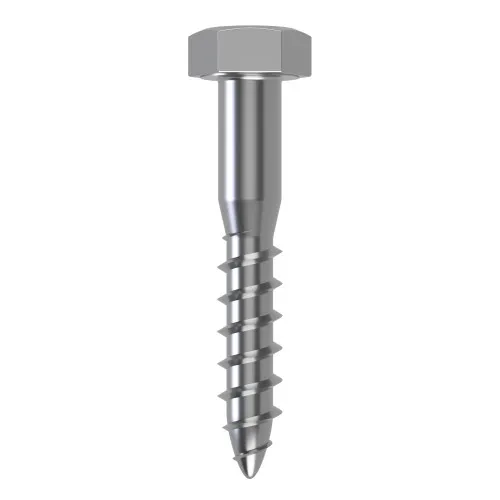

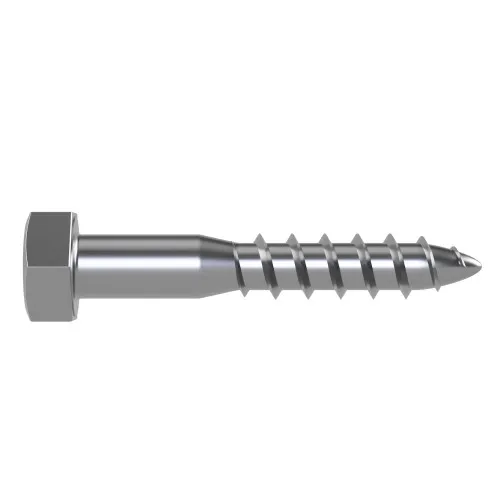

16mm x 100mm Coach Screw (DIN 571) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £7.02 | £8.42 |
| 50 - 99 | £6.32 | £7.58 |
| 100 - 499 | £5.68 | £6.82 |
| 500 - 999 | £5.27 | £6.32 |
| 1000 + | £4.83 | £5.80 |
£8.42 / each
.png)
Product Specification
| Size | 16mm |
| Length | 100mm |
| Head Height | 10mm |
| Thread Length | 60mm |
| Material | A4 Stainless Steel |
| Across Flats | 24mm |
| Shank Diameter | 16mm |
| Standard | DIN 571 |
Frequently Bought Together
Total Price: £0.00
M16 x 100mm Coach Screw DIN 571 | A4 Stainless Steel
Where commercial fit-out timberwork needs a strong timber fixing, this M16 x 100mm coach screw offers a 60mm threaded section, 16mm shank diameter and A4 Stainless Steel construction for dependable holding power. The 100mm length helps provide the reach required for commercial fit-out timberwork without moving away from the DIN 571 coach screw pattern.
Marine grade A4 stainless steel is well suited to wet, coastal and high exposure locations where stronger corrosion resistance is needed around timber frameworks. It is useful for repairs and new builds where the installer needs a serviceable hex head fixing that can be tightened with common hand tools. The larger 16mm shank makes it suitable for heavier timber sections, support posts and bracket assemblies.
Common Applications
- Timber frame assembly and strengthening work
- Garden structures, pergolas and fencing rails
- Coastal timber frameworks and exposed garden structures
- Metal brackets fixed back to timber posts

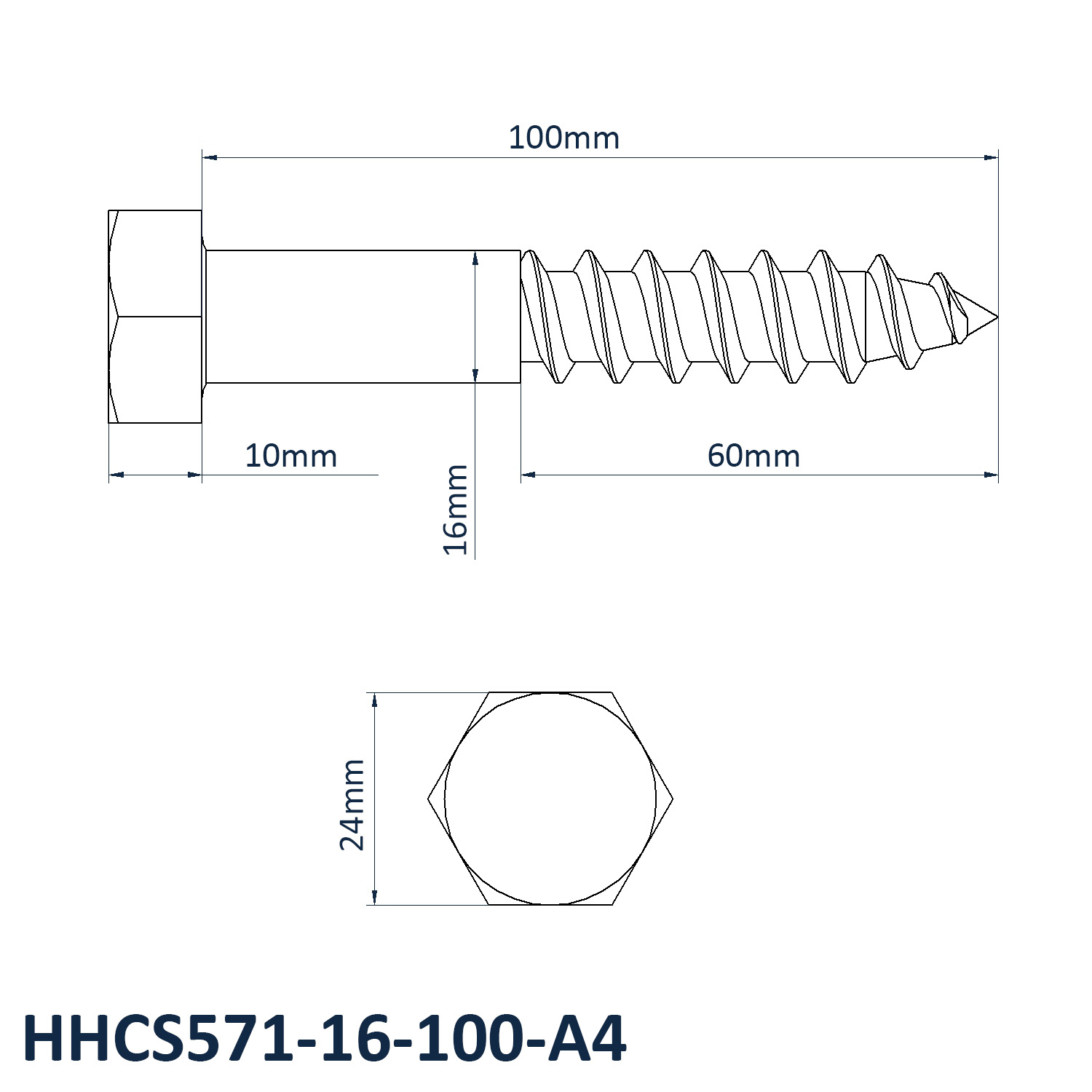

M16 x 100mm Coach Screw Dimensions
- Size: 16mm
- Length: 100mm
- Across Flats: 24mm
- Head Height: 10mm
- Thread Length: 60mm
- Shank Diameter: 16mm
- Material: A4 Stainless Steel
- Standard: DIN 571
Coach Screw Buying Guide
Match the across flats value to the correct spanner or socket before fitting. A controlled installation helps protect the head and gives a more secure fixing. Click here to read our coach screws guide.
For matching sizes and material options, view our Coach Screws DIN 571 page or read the Vital Parts coach screws guide.
