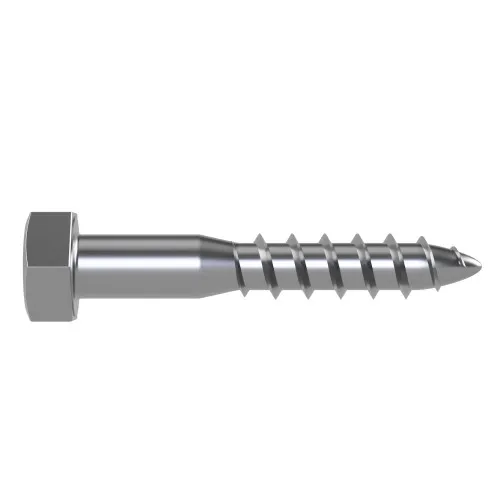

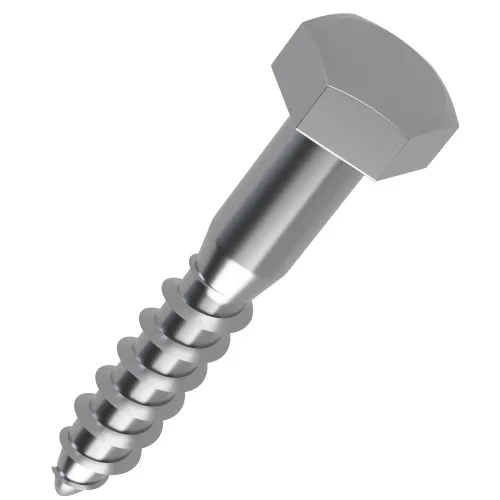

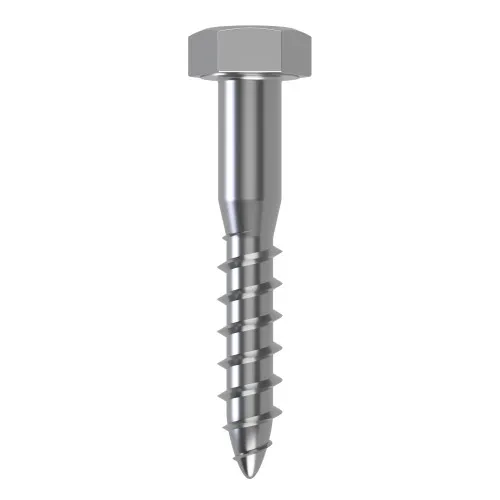

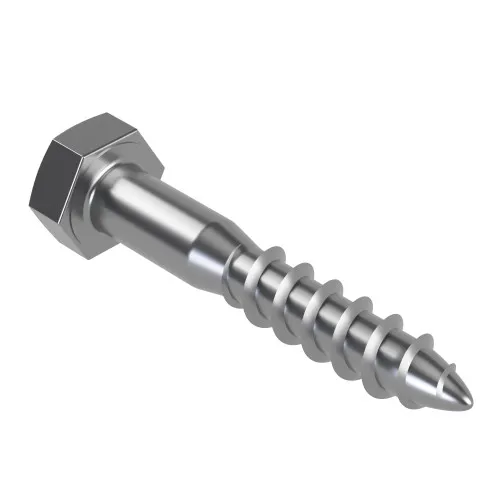

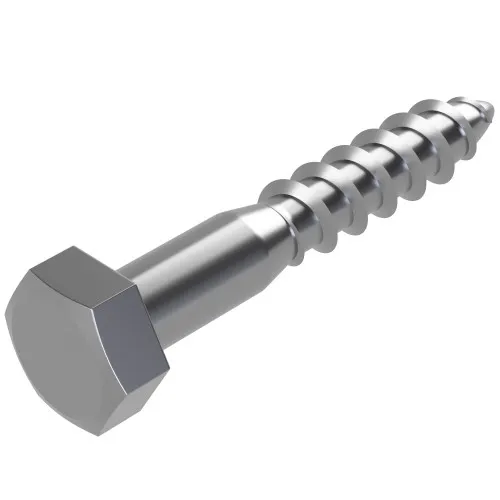

16mm x 120mm Coach Screw (DIN 571) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £5.28 | £6.34 |
| 50 - 99 | £5.17 | £6.21 |
| 100 - 499 | £5.08 | £6.09 |
| 500 - 999 | £4.97 | £5.97 |
| 1000 + | £4.88 | £5.85 |
£6.34 / each
.png)
Product Specification
| Size | 16mm |
| Length | 120mm |
| Head Height | 10mm |
| Thread Length | 72mm |
| Material | A2 Stainless Steel |
| Across Flats | 24mm |
| Shank Diameter | 16mm |
| Standard | DIN 571 |
Frequently Bought Together
Total Price: £0.00
M16 x 120mm Coach Screw DIN 571 | A2 Stainless Steel
This a2 stainless steel coach screw gives fabricators and installers a dependable DIN 571 wood screw with a hexagon head, suitable when transport crate manufacturing requires a stronger fixing than a standard woodscrew. This makes the fixing a strong match for installers searching for a dependable a2 stainless steel coach screw.
A2 stainless steel provides good corrosion resistance for damp, external and decorative joinery applications without the need for an additional plated finish. The partly threaded body helps pull mating components together, which is useful when clamping brackets, plates or timber sections into position. The larger 16mm shank makes it suitable for heavier timber sections, support posts and bracket assemblies.
Common Applications
- Cabinetwork and shopfitting where a visible hex head is acceptable
- Display frames, timber plinths and support blocks
- Outdoor timber joinery where stainless steel is preferred
- Light fabrication work involving timber backing

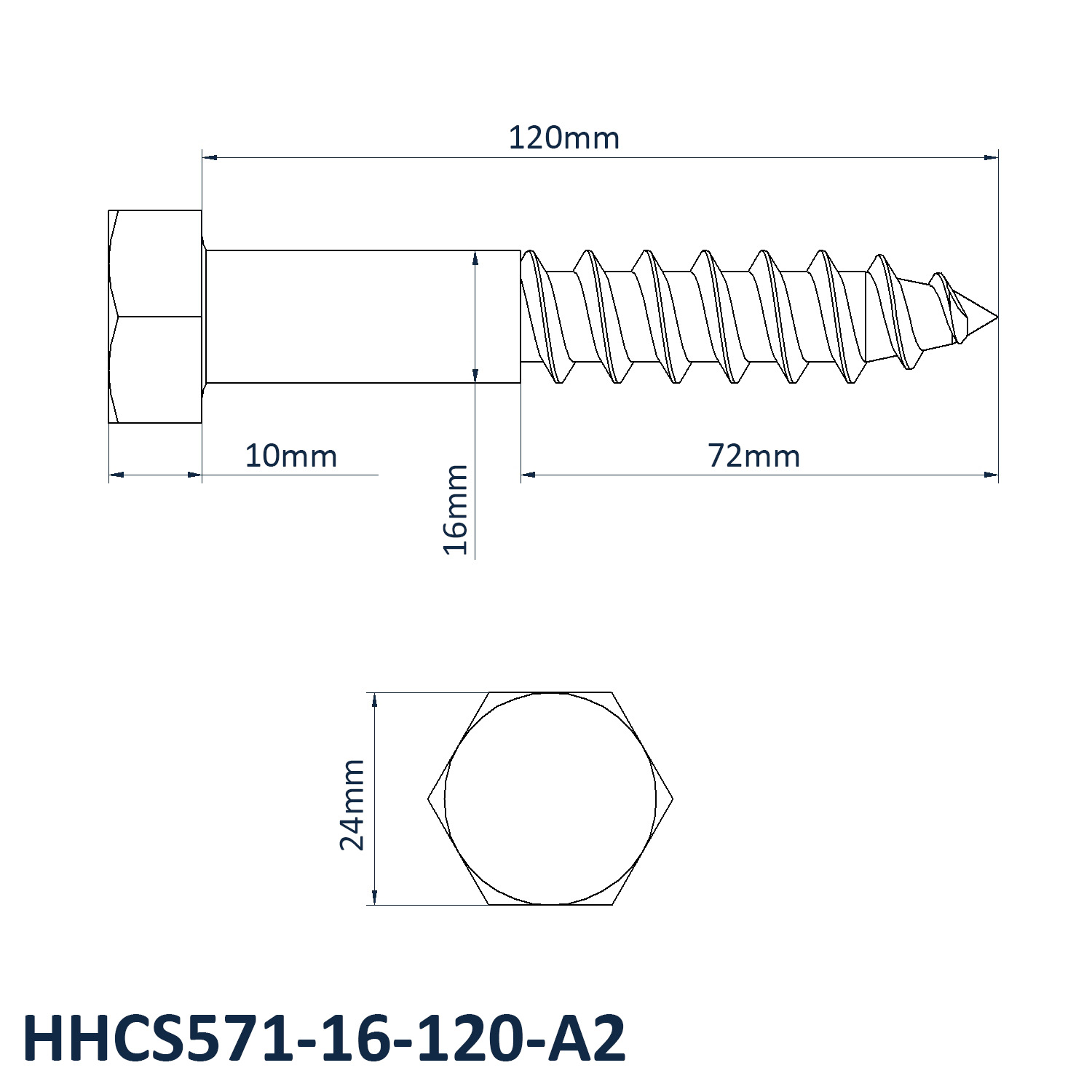

M16 x 120mm Coach Screw Dimensions
- Size: 16mm
- Length: 120mm
- Across Flats: 24mm
- Head Height: 10mm
- Thread Length: 72mm
- Shank Diameter: 16mm
- Material: A2 Stainless Steel
- Standard: DIN 571
Coach Screw Buying Guide
Match the across flats value to the correct spanner or socket before fitting. A controlled installation helps protect the head and gives a more secure fixing. Click here to read our coach screws guide.
For matching sizes and material options, view our Coach Screws DIN 571 page or read the Vital Parts coach screws guide.
