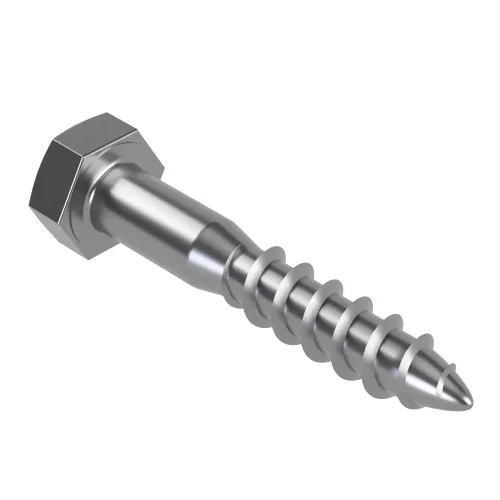

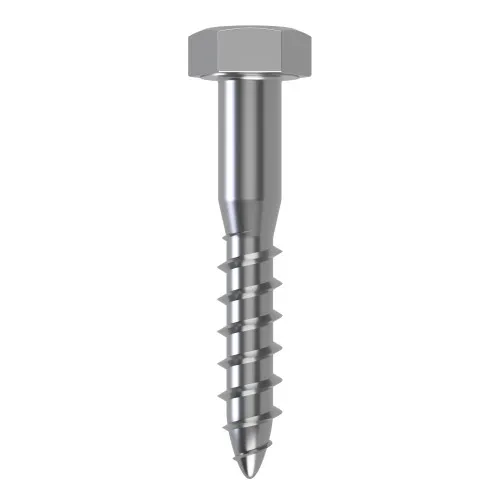

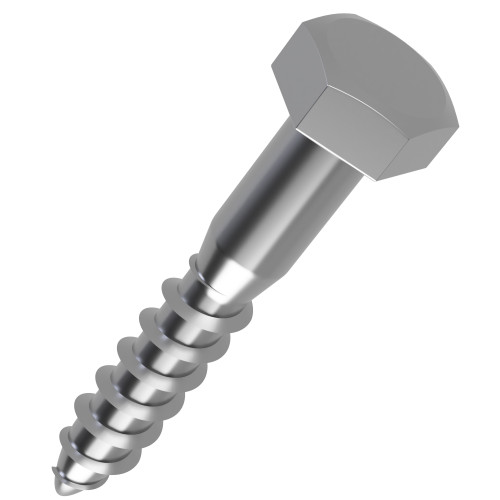

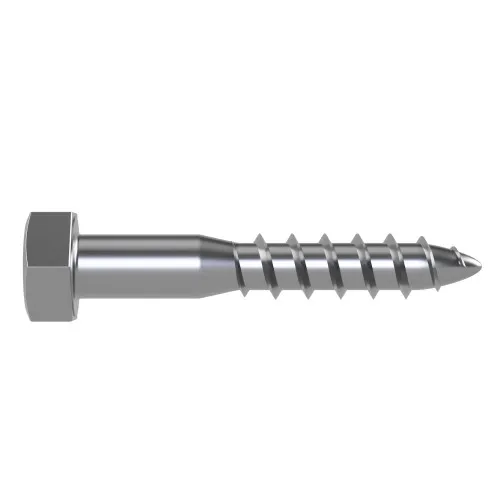

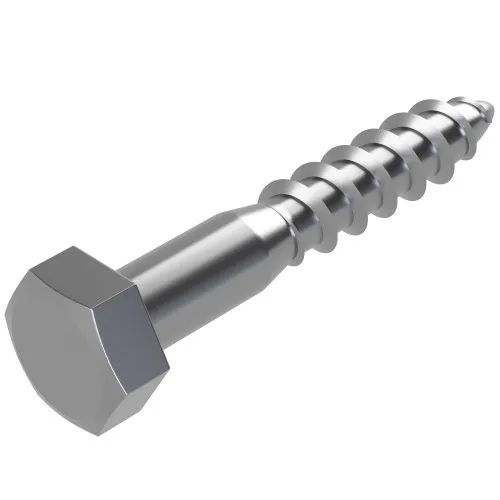

16mm x 180mm Coach Screw (DIN 571) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £10.03 | £12.04 |
| 50 - 99 | £9.83 | £11.80 |
| 100 - 499 | £9.63 | £11.56 |
| 500 - 999 | £9.44 | £11.33 |
| 1000 + | £9.26 | £11.11 |
£12.04 / each
.png)
Product Specification
| Size | 16mm |
| Length | 180mm |
| Head Height | 10mm |
| Thread Length | 108mm |
| Material | A2 Stainless Steel |
| Across Flats | 24mm |
| Shank Diameter | 16mm |
| Standard | DIN 571 |
Frequently Bought Together
Total Price: £0.00
M16 x 180mm Coach Screw DIN 571 | A2 Stainless Steel
This M16 x 180mm coach screw is a DIN 571 hex head wood fastener manufactured from A2 Stainless Steel, with a 108mm thread length and 24mm across flats for controlled spanner or socket installation. The A2 stainless steel finish gives this 16mm coach screw a focused role in gate strap hinge fixing.
A2 stainless steel provides good corrosion resistance for damp, external and decorative joinery applications without the need for an additional plated finish. Its 24mm across flats head makes tool selection straightforward for site work, maintenance benches and production assembly areas. The larger 16mm shank makes it suitable for heavier timber sections, support posts and bracket assemblies.
Common Applications
- Construction timberwork requiring a DIN 571 profile
- Steel plates secured into structural timber
- Outdoor timber joinery where stainless steel is preferred
- Heavy shelving, racking and timber supports

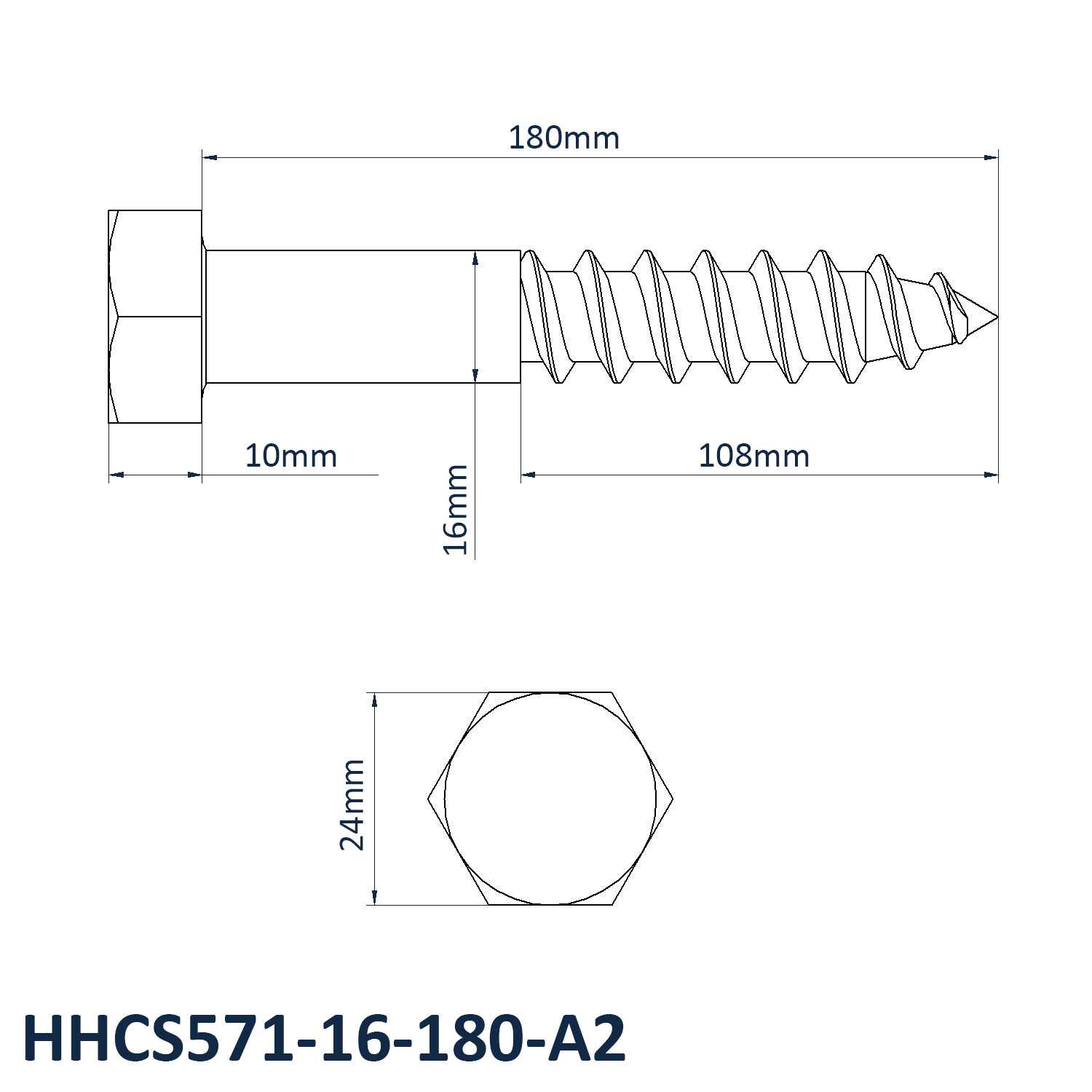

M16 x 180mm Coach Screw Dimensions
- Size: 16mm
- Length: 180mm
- Across Flats: 24mm
- Head Height: 10mm
- Thread Length: 108mm
- Shank Diameter: 16mm
- Material: A2 Stainless Steel
- Standard: DIN 571
Coach Screw Buying Guide
For best results, drill a pilot hole before installation. Our coach screw guide explains sizing, pilot hole selection and typical uses for timber fixing work. Click here to read our coach screws guide.
View our full Coach Screws DIN 571 range or read our coach screws guide for extra advice on sizes, materials and installation.
