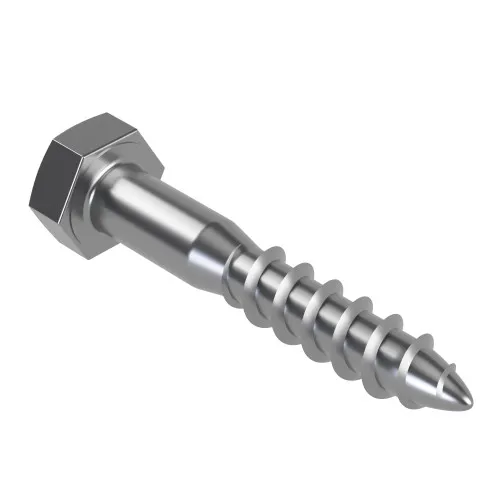

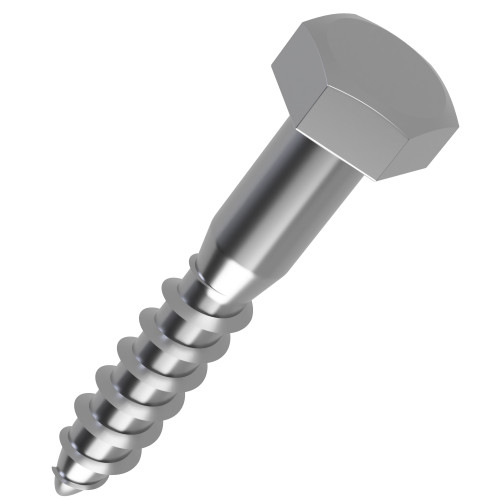

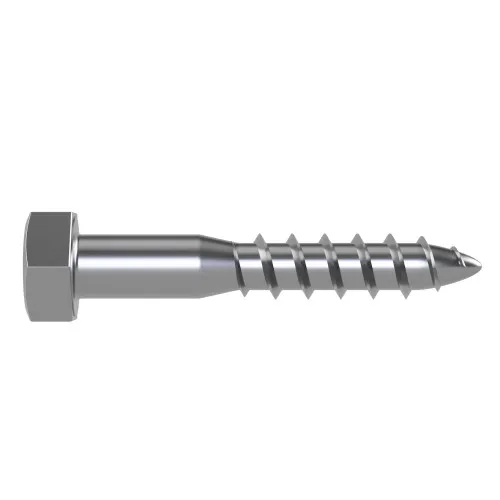

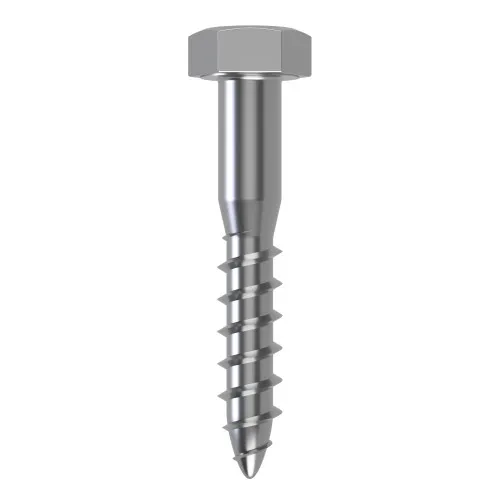

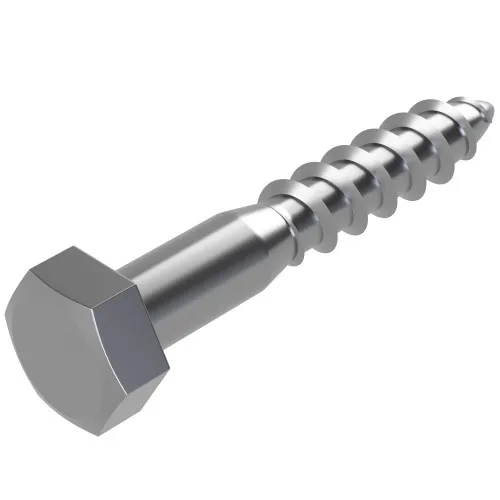

16mm x 80mm Coach Screw (DIN 571) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £6.41 | £7.69 |
| 50 - 99 | £5.77 | £6.92 |
| 100 - 499 | £5.19 | £6.23 |
| 500 - 999 | £4.80 | £5.76 |
| 1000 + | £4.42 | £5.30 |
£7.69 / each
.png)
Product Specification
| Size | 16mm |
| Length | 80mm |
| Head Height | 10mm |
| Thread Length | 48mm |
| Material | A4 Stainless Steel |
| Across Flats | 24mm |
| Shank Diameter | 16mm |
| Standard | DIN 571 |
Frequently Bought Together
Total Price: £0.00
M16 x 80mm Coach Screw DIN 571 | A4 Stainless Steel
For heavier timber fixing work, this M16 x 80mm coach screw offers A4 Stainless Steel construction, a 48mm thread and a 16mm shank diameter to support a firm mechanical hold in prepared timber. It gives specifiers a precise M16 x 80mm coach screw option for timber projects requiring A4 Stainless Steel.
Marine grade A4 stainless steel is well suited to wet, coastal and high exposure locations where stronger corrosion resistance is needed around timber frameworks. The partly threaded body helps pull mating components together, which is useful when clamping brackets, plates or timber sections into position. The larger 16mm shank makes it suitable for heavier timber sections, support posts and bracket assemblies.
Common Applications
- Marine-adjacent timber assemblies where the right grade is selected
- Boardwalks, pontoons and external timber fixtures
- Marine-adjacent decking, posts and timber rails
- Replacement of corroded coach bolts or wood screws

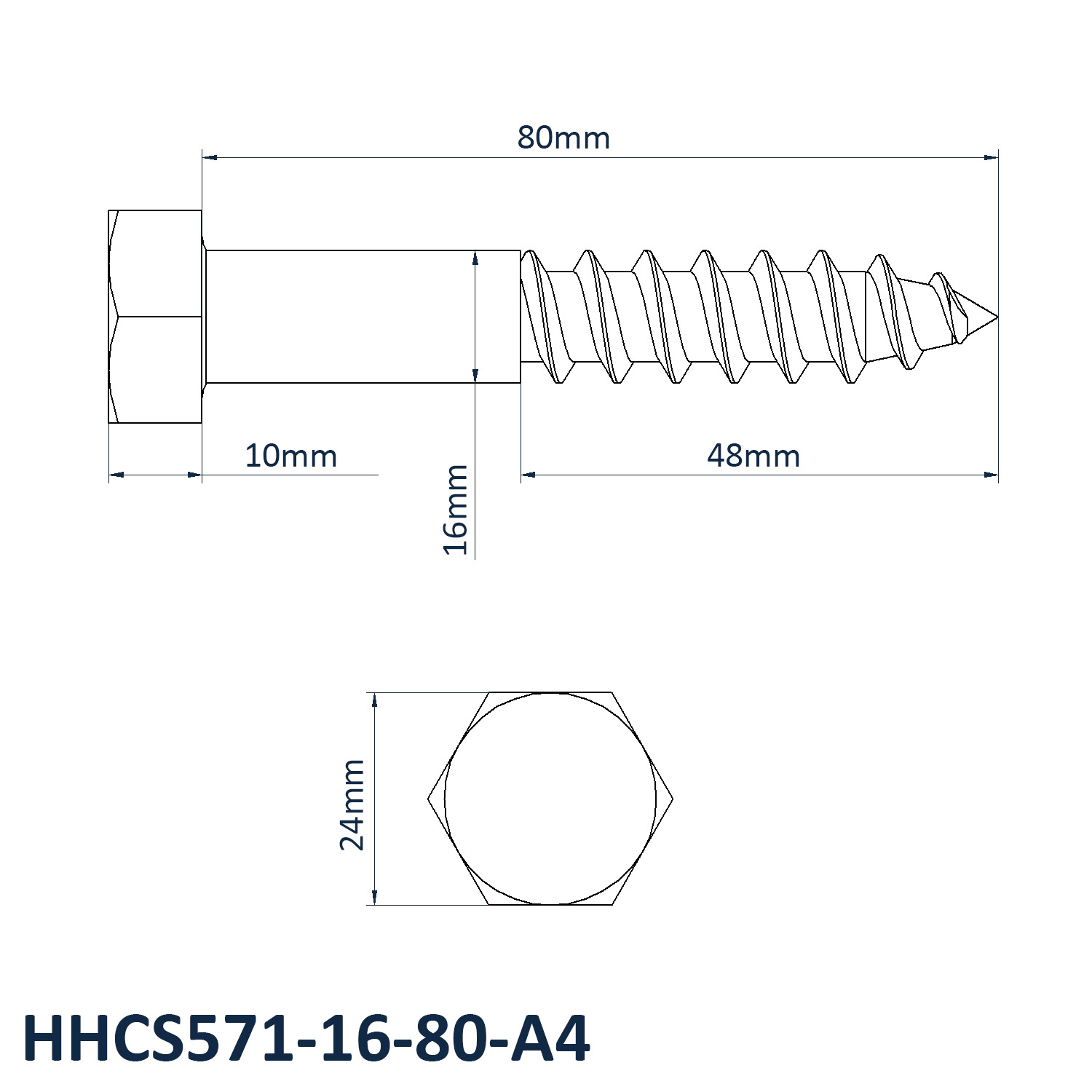

M16 x 80mm Coach Screw Dimensions
- Size: 16mm
- Length: 80mm
- Across Flats: 24mm
- Head Height: 10mm
- Thread Length: 48mm
- Shank Diameter: 16mm
- Material: A4 Stainless Steel
- Standard: DIN 571
Coach Screw Buying Guide
Check the screw size, material grade and installation environment before ordering. The coach screw guide gives extra help for selecting the correct length and finish. Click here to read our coach screws guide.
Browse the complete Coach Screws DIN 571 range and visit our coach screws blog guide for installation guidance.
