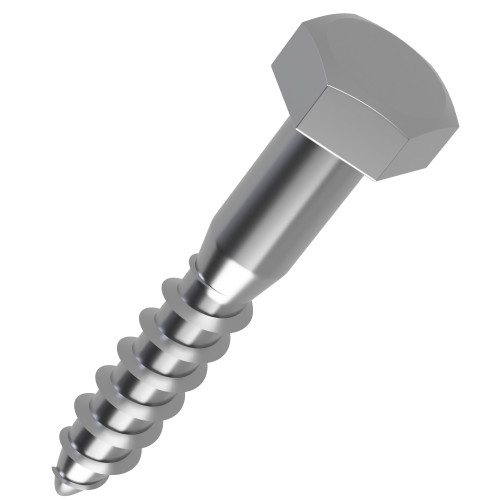

8mm x 55mm Coach Screw (DIN 571) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £1.32 | £1.58 |
| 50 - 99 | £1.18 | £1.42 |
| 100 - 499 | £1.07 | £1.28 |
| 500 - 999 | £0.91 | £1.09 |
| 1000 + | £0.66 | £0.79 |
£1.58 / each
.png)
Product Specification
| Size | 8mm |
| Length | 55mm |
| Head Height | 5.5mm |
| Thread Length | 33mm |
| Material | A4 Stainless Steel |
| Across Flats | 13mm |
| Shank Diameter | 8mm |
| Standard | DIN 571 |
Frequently Bought Together
Total Price: £0.00
M8 x 55mm Coach Screw DIN 571 | A4 Stainless Steel
This M8 x 55mm coach screw gives fabricators and installers a dependable DIN 571 wood screw with a hexagon head, suitable when balustrade support timberwork requires a stronger fixing than a standard woodscrew. The A4 stainless steel finish gives this M8 x 55mm coach screw a focused role in balustrade support timberwork.
Marine grade A4 stainless steel is well suited to wet, coastal and high exposure locations where stronger corrosion resistance is needed around timber frameworks. Use a pilot hole suited to the timber density before driving the screw, especially on hardwoods or near board edges. The 8mm diameter gives a balanced option for everyday joinery, fencing and support frame installation.
Common Applications
- Cabinetwork and shopfitting where a visible hex head is acceptable
- Display frames, timber plinths and support blocks
- Coastal timber frameworks and exposed garden structures
- Light fabrication work involving timber backing

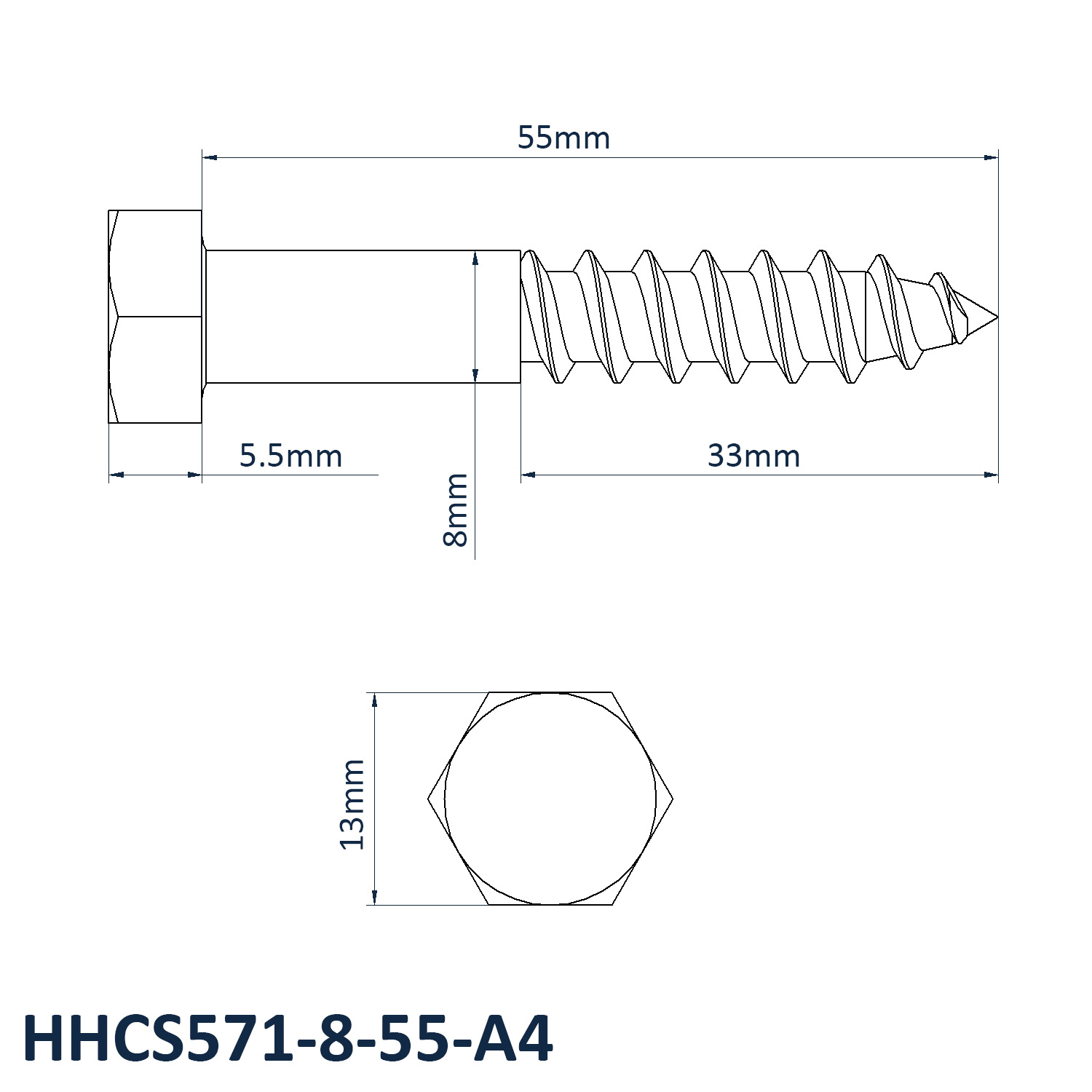

M8 x 55mm Coach Screw Dimensions
- Size: 8mm
- Length: 55mm
- Across Flats: 13mm
- Head Height: 5.5mm
- Thread Length: 33mm
- Shank Diameter: 8mm
- Material: A4 Stainless Steel
- Standard: DIN 571
Coach Screw Buying Guide
Pilot holes are especially important in hardwoods, dense treated timber and fixings close to an edge. This helps improve alignment and reduce splitting. Click here to read our coach screws guide.
For matching sizes and material options, view our Coach Screws DIN 571 page or read the Vital Parts coach screws guide.
