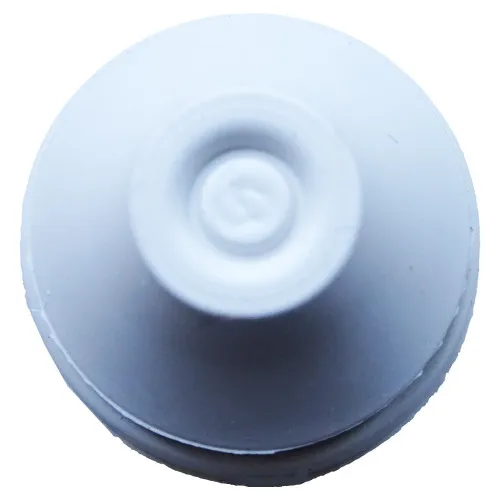

M16 Conical Sealing Grommet IP67 for 1mm - 4mm Panel & 5mm - 9mm Cable, Light Grey EPDM

M16 Conical Sealing Grommets IP67 for 1mm - 4mm Panel & 5mm - 9mm Cable - Light Grey (RAL7035) EPDM | Vital Parts - IPG-C-M16-4-EPDM-LG

Our Conical Sealing Grommets are designed to provide exceptional protection against water, dust, and debris when passing cables through sheet metal panels. Rated to IP67, these grommets are ideal for demanding applications where environmental sealing is critical. Suitable for both indoor and outdoor use, they are engineered to seal against full water immersion and complete dust ingress, making them the most durable IP-rated grommet option we offer.

What are Conical Sealing Grommets IP67?

Conical Sealing Grommets IP67 are high-performance rubber grommets used to create a sealed pass-through for cables and wires. They are designed to meet the IP67 rating, meaning they provide complete protection against dust and can withstand immersion in water for up to 30 minutes at depths of up to 1 metre, as per EN 60529. Made from premium-grade EPDM, these grommets ensure long-lasting resistance to weathering, UV exposure, ozone, and chemicals. The conical design provides sealing at two separate points along the cable for maximum retention and protection.

Key Features:

• Rated to IP67 for full dust protection and water submersion
• Conical body seals cable at two separate points for enhanced protection
• Withstands temperatures from -40°C to +110°C (EPDM) or -30°C to +100°C (Neoprene)
• Offered in multiple RAL colours: Black (RAL9005), Dark Grey (RAL7001), Light Grey (RAL7035)
• Designed to suit metric and PG-sized panel holes

Key Applications and Industries

Our IP67-rated Conical Sealing Grommets are widely used across the UK in electrical engineering, telecommunications, outdoor lighting systems, control cabinets, and industrial machinery. Their superior sealing makes them ideal for environments where equipment is exposed to moisture, dust, or varying weather conditions. They are frequently installed in automotive, rail, marine, and outdoor electrical enclosures requiring high ingress protection.

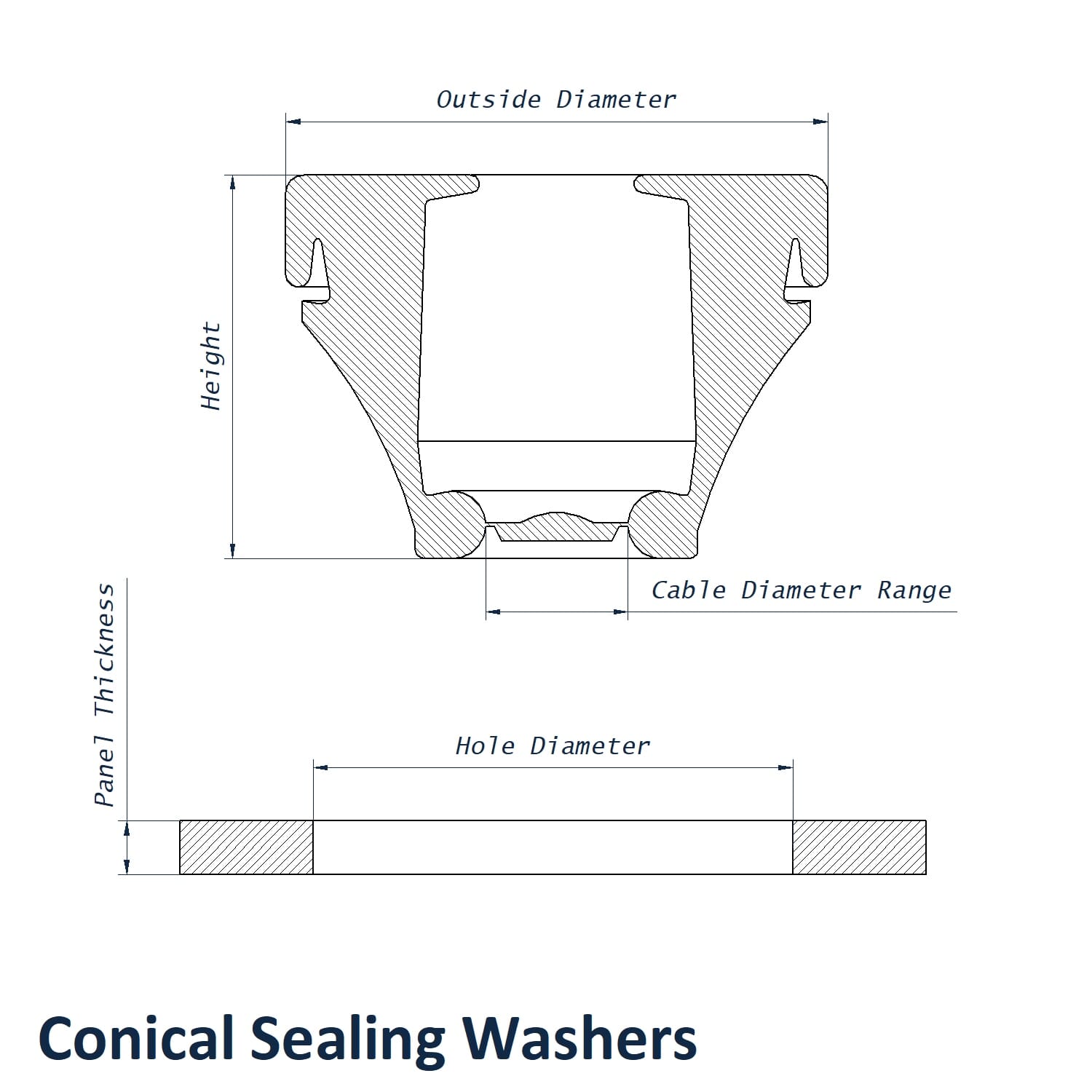

Technical Specifications

• Size : M16
• Mounting Hole Diameter : 16.5mm
• Panel Thickness : 1mm - 4mm
• Cable Diameter Range : 5mm - 9mm
• Height : 18mm
• Diameter : 21mm
• Material : EPDM
• Temperature Resistance: -40°C to +110°C (EPDM), -30°C to +100°C (Neoprene)
• Colour Options: RAL9005 (Black), RAL7001 (Dark Grey), RAL7035 (Light Grey)
• IP Rating: IP67 (EN 60529 certified)
• Hole Compatibility: Metric and PG panel sizes

Our Conical Sealing Grommets IP67 are ideal for:

• Sealing cables passing through metal enclosures
• Outdoor or exposed electrical installations
• Control panels, telecoms, and machinery junction boxes
• Applications requiring oil, grease, or UV resistance

Benefits:

• Prevents ingress of dust, dirt, and water for IP67-certified protection
• Provides reliable, long-term environmental sealing
• Offers mechanical strain relief and cable retention
• Withstands harsh environments and industrial exposure
• Easy installation with a secure grip on both panel and cable

Why Buy from Vital Parts?

As a trusted UK supplier of high-quality fasteners and industrial components, Vital Parts offers a customer-first experience with benefits that include:

• Same-Day Dispatch: Fast and reliable shipping to keep your projects on track.
• Competitive Trade Pricing: Enjoy bulk discounts on larger orders to save more.
• Expert Technical Support: Our knowledgeable team is here to help with product selection and application advice.

Click here to view our full Guide to Rubber Grommets

Conical Sealing Grommets IP67 provide a highly protective and reliable solution for sealing cables in harsh environments. If you need assistance selecting the right size or would like to discuss custom options, contact our expert team at 01233 713581.
