Constant Torque Positioning Hinge - HIN020
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £13.81 | £16.57 |
| 10 - 24 | £12.82 | £15.39 |
| 25 - 49 | £11.84 | £14.21 |
| 50 - 99 | £10.26 | £12.31 |
| 100 - 499 | £8.28 | £9.94 |
| 500 + | £7.10 | £8.52 |

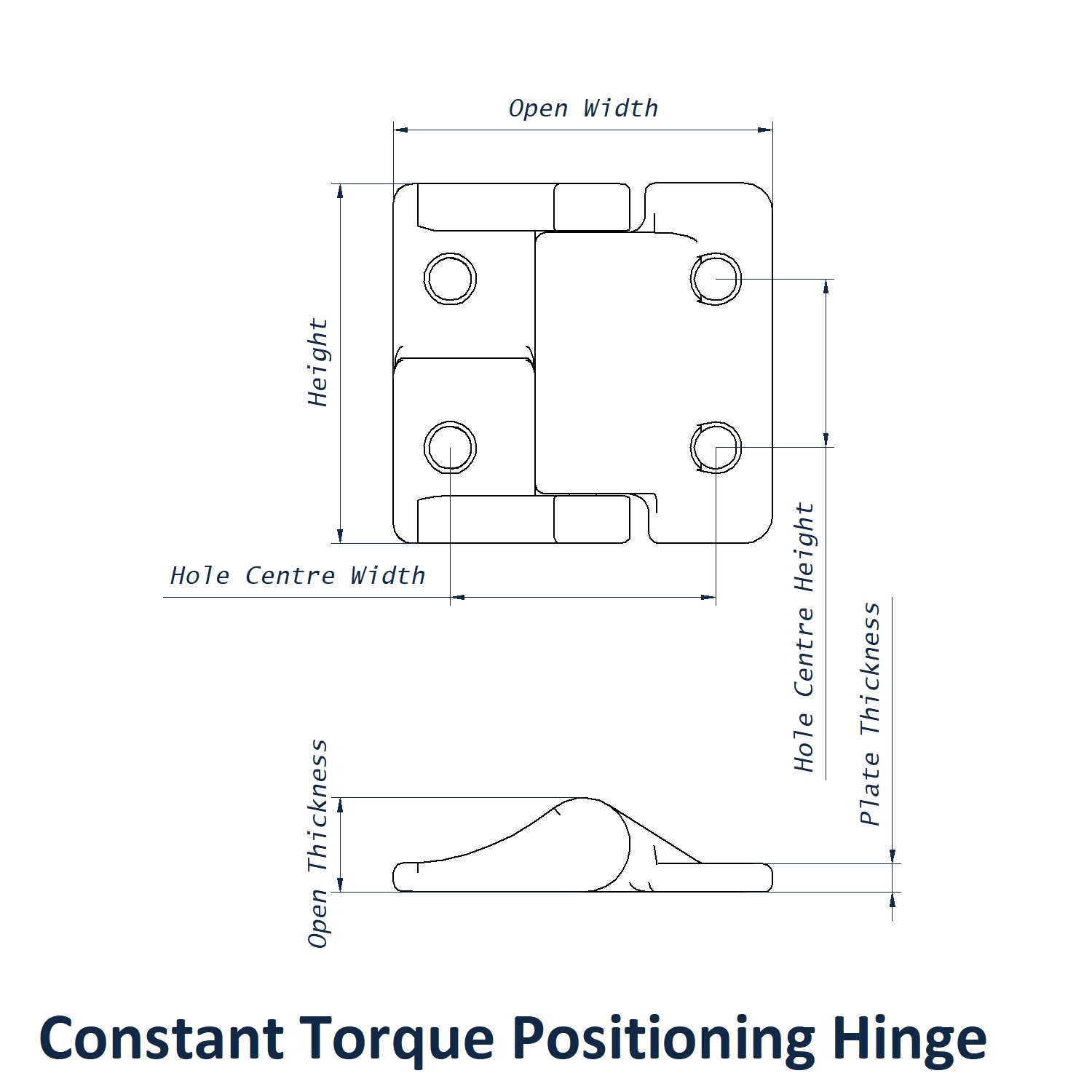

Product Specification
| Height | 38mm |
| Open Width | 40mm |
| Hole Centre Height | 18mm |
| Hole Centre Width | 28mm |
| Open Thickness | 10mm |
| Plate Thickness | 3mm |
| Hole Size | 4.5mm |
| Colour | Black |
| Material | Powder Coated Zinc & A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
Constant torque positioning hinges are used to hold doors or lids in position at any desired angle, fully open, fully closed, or anywhere in-between. They provide a constant torque throughout their motion, allowing the user to access the enclosure or cabinet while the door or lid is held in a convenient position. The hinge is mounted using two thru-hole mounts, and has high strength and durability, with a hinge torque of 0.4Nm.

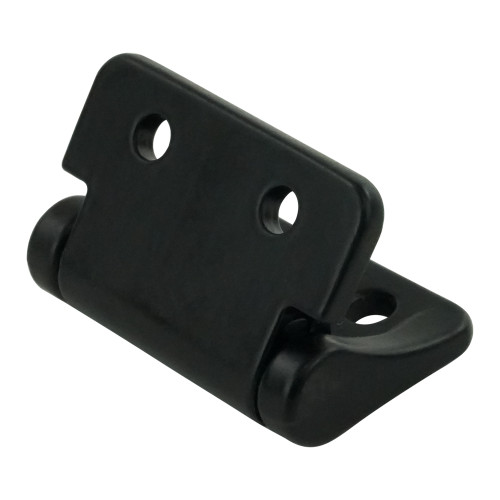

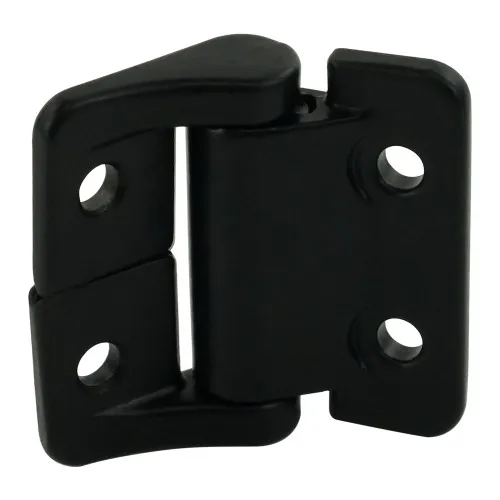

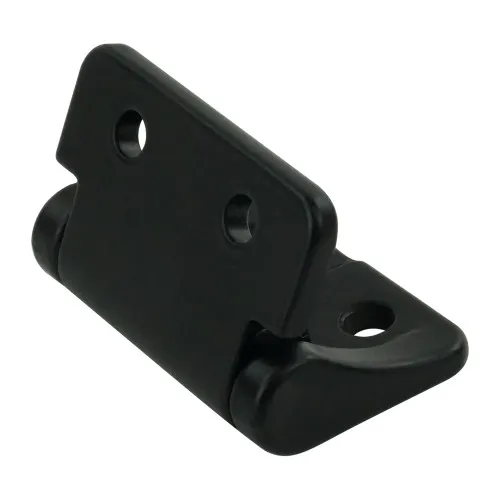

This black Constant Torque Position Control Hinge has a height of 38mm and a width of 40mm. The 4.5mm mounting holes are spaced out by a height of 18mm and a width of 28mm. The hinge has an open thickness of 10mm and a plate thickness of 3mm. It is constructed from die-cast aluminum with a pin made from 304 Stainless Steel.
They are commonly used for cabinets, enclosures, HVAC equipment, and processing equipment. Customers with a Vital Parts Business Account may request a free product sample.
This Hinge has a Radial Load of 1100N and an Axial Load of 2100N.
