M6 Cross Dowel Nut | 14mm Length Zinc Alloy
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.45 | £0.54 |
| 100 - 249 | £0.34 | £0.41 |
| 250 - 499 | £0.28 | £0.34 |
| 500 - 999 | £0.24 | £0.29 |
| 1000 + | £0.17 | £0.21 |
Product Specification
| Thread Size | M6 |
| Diameter | 10mm |
| Length | 14mm |
| To Suit Board Thickness | 7mm |
| Material | Zinc Alloy |
Frequently Bought Together
Total Price: £0.00

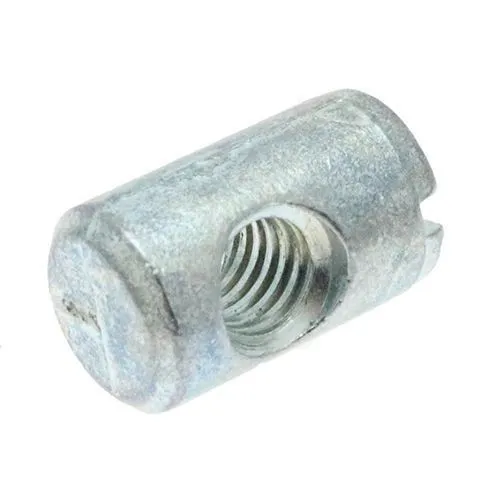

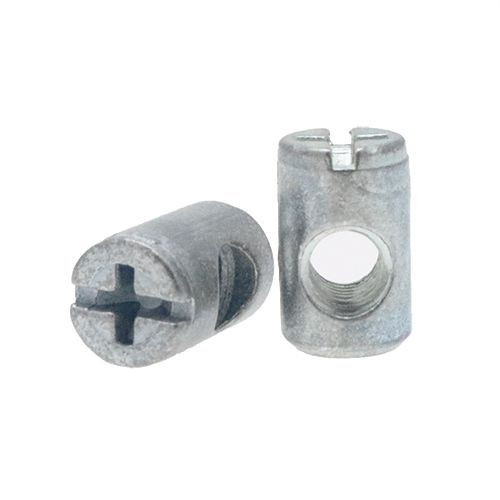

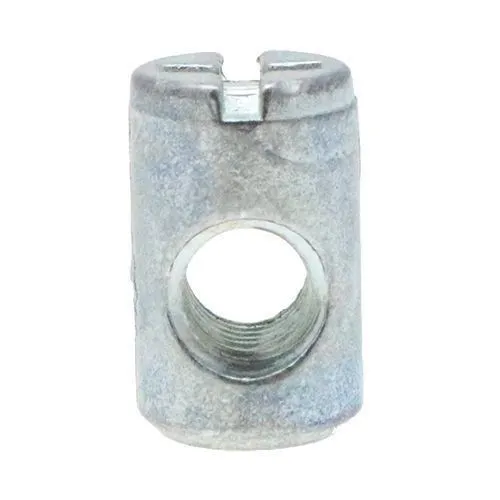

M6 x 14mm Cross Dowel Barrel Nut | Zinc Alloy | For 7mm Board Thickness
These M6 x 14mm Cross Dowel Barrel Nuts are designed for strong furniture frame joints where a concealed machine thread is needed inside timber or board materials. With a 10mm diameter and compatibility with 7mm board thicknesses, this fixing is suited to furniture frame assembly.
Manufactured from Zinc Alloy, these 14mm barrel fixings create a strong threaded connection when used with compatible connector bolts. The short barrel length is well suited to slimmer board sections, helping create a reliable connection without adding unnecessary depth. They are particularly useful when furniture needs to be assembled, tightened and dismantled without wearing out the surrounding timber.
Common Applications
- Bed frame construction
- Cabinet side panels
- Flat pack furniture manufacture
- Timber furniture joints

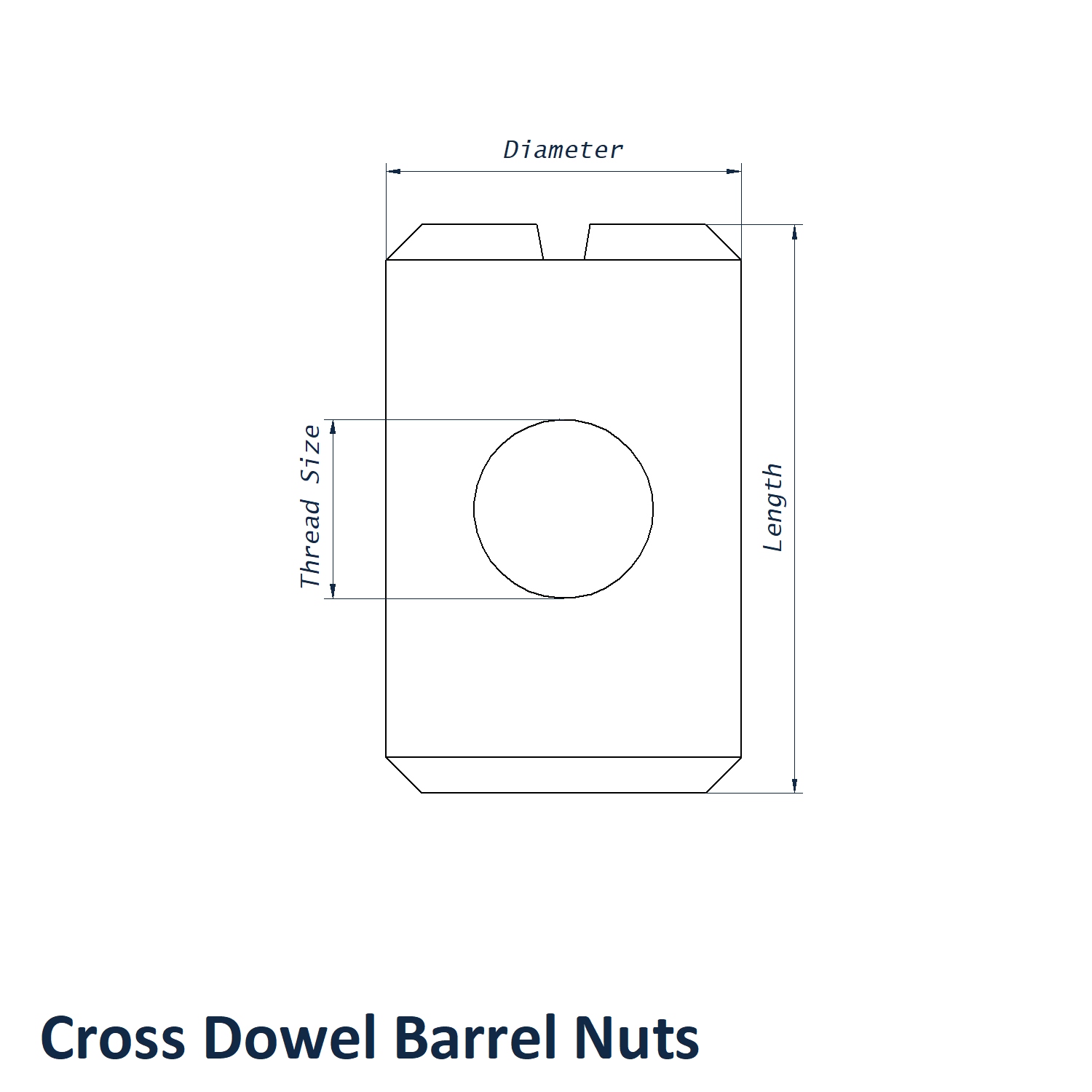

M6 x 14mm Cross Dowel Barrel Nut Dimensions
- Thread Size: M6
- Diameter: 10mm
- Length: 14mm
- To Suit Board Thickness: 7mm
- Material: Zinc Alloy
Commonly Used with Connector Bolts
Cross Dowel Barrel Nuts are designed to work with connector bolts, creating strong reusable joints for timber furniture, cabinets, bed frames and structural board assemblies.
Click here to view our full range of Connector Bolts.
View our full Cross Dowel Barrel Nut range or browse our Furniture Fixings collection.
