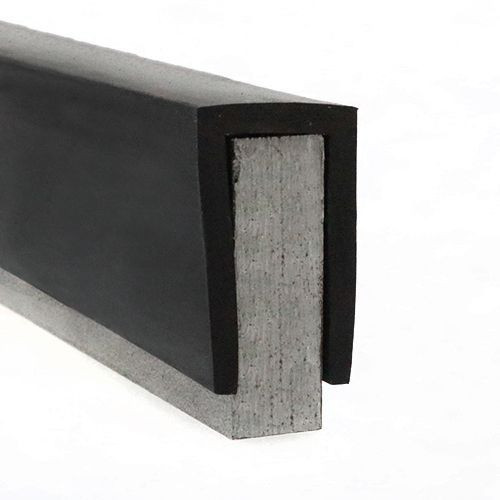

24mm x 17mm Square Channel Rubber Edge Trim (For 11mm Panel) 30m EPDM
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £198.05 | £237.66 |
| 2 - 5 | £182.20 | £218.64 |
| 6 - 10 | £167.62 | £201.15 |
| 11 + | £154.22 | £185.06 |
Product Specification
| To Fit Panel Thickness | 11mm |
| Roll Length | 30m |
| Overall Depth | 27mm |
| Width | 17mm |
| Panel Depth | 24mm |
| Profile | Square |
| Colour | Black |
| Material | EPDM |
Frequently Bought Together
Total Price: £0.00
24mm x 17mm Square Channel Rubber Edge Trim (For 11mm Panel) 30m EPDM
Designed for 11mm panels with a 24mm panel depth, 27mm overall depth, 17mm width and 30m roll length, this black EPDM square channel rubber edge trim provides rubber edging for thick boards, capping applications and robust edge finishing work. The profile uses a straight sided channel for flat edged panels that need a firm protective cap and a tidy finish while the deep edge coverage for substantial profiles and wide exposed sections pairs with a broader contact face for increased edge coverage.
For the 24mm x 17mm profile in a 30m roll, the 11mm panel fit and 27mm overall depth make this trim suitable for production batches, workshop fitting and larger panel finishing work. It pushes over the prepared edge without specialist tooling and the rubber profile helps reduce vibration noise along panel edges, helping protect exposed edges from handling damage, vibration marks and unfinished surfaces.
To learn more about Edge Protection, see our Guide to Rubber Edge Trim.
Common Applications
- Thicker panels, boards and heavy duty capping work
- Vehicle, trailer and industrial bodywork edges
- Straight panel edges needing a square channel finish
- Batch fabrication, site work and planned maintenance

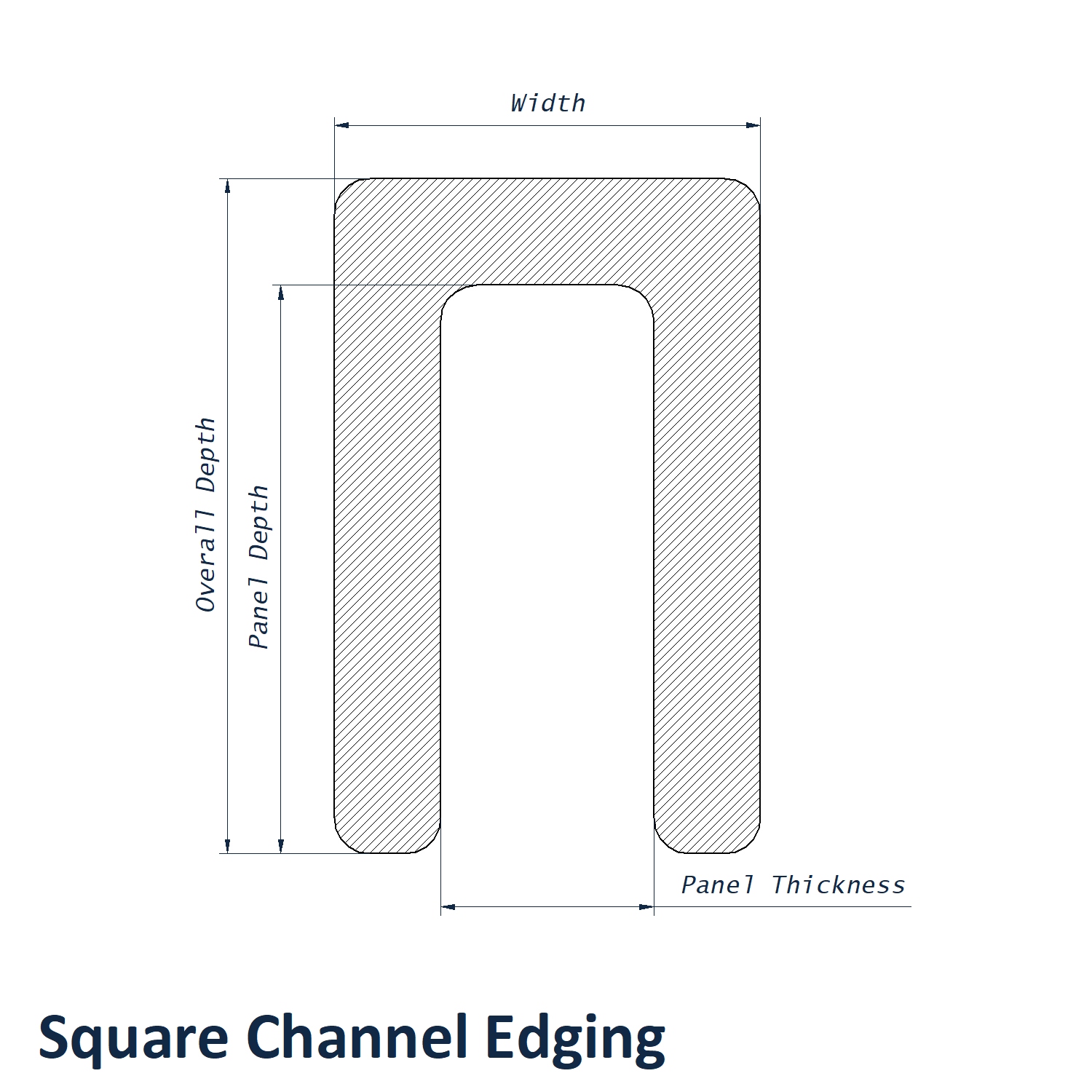

11mm Square Channel Rubber Edge Trim Dimensions
- To Fit Panel Thickness: 11mm
- Roll Length: 30m
- Overall Depth: 27mm
- Width: 17mm
- Panel Depth: 24mm
- Profile: Square
- Material: EPDM
- Colour: Black
