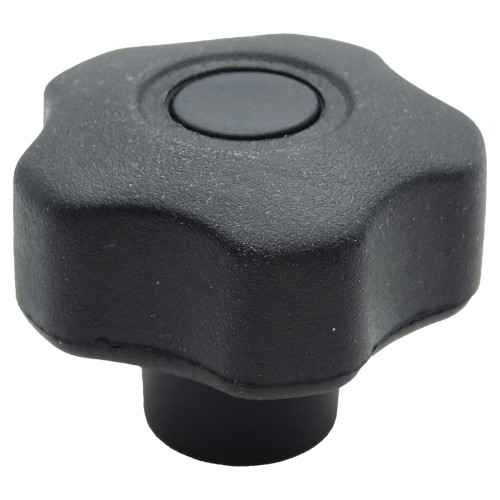

40mm x M6 Polypropylene & TPE Female Brass Threaded Handwheel - 5 Lobed

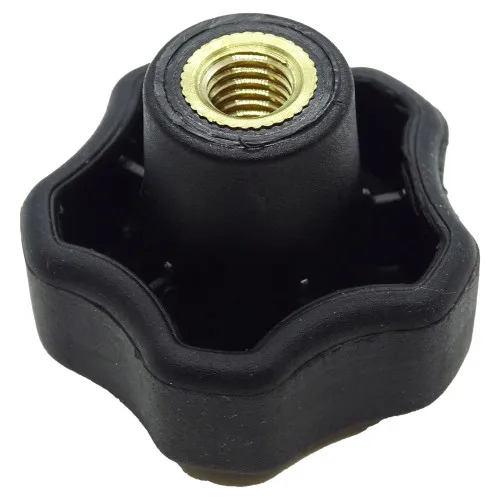

40mm x M6 Brass Female Threaded Handwheel – 29mm Total Height , 12mm Shank Height – 5 lobed | Vital Parts – HW610

Our Female Threaded Handwheels are designed for secure adjustment, clamping and positioning within a wide range of mechanical and industrial applications. These handwheels feature internal threads that allow direct connection to a matching male thread providing simple manual control without the need for tools.

What are Female Threaded Handwheels?

Female Threaded Handwheels are round operating knobs or handles with an internally threaded hub. This internal thread known as a female thread engages with a male threaded shaft bolt or stud to form a reliable and adjustable connection. They are often used to control motion clamp assemblies or make precise adjustments on machinery. Their removable nature means they can be unscrewed or replaced by hand reducing downtime and improving maintenance efficiency.

Handwheel Key Features:

• Available in a range of finishes to suit industrial and commercial environments
• Female threaded design for easy manual installation
• Rust and corrosion resistant options for durability
• Toolless operation for quick adjustment and replacement

Key Applications and Industries

Female Threaded Handwheels are widely used across manufacturing mechanical engineering furniture production and equipment assembly. They provide reliable grip and precision control on machine tools jigs fixtures control panels and laboratory devices. Their smooth surface and replaceable design also make them ideal for environments where appearance and cleanliness are important such as medical or food processing equipment.

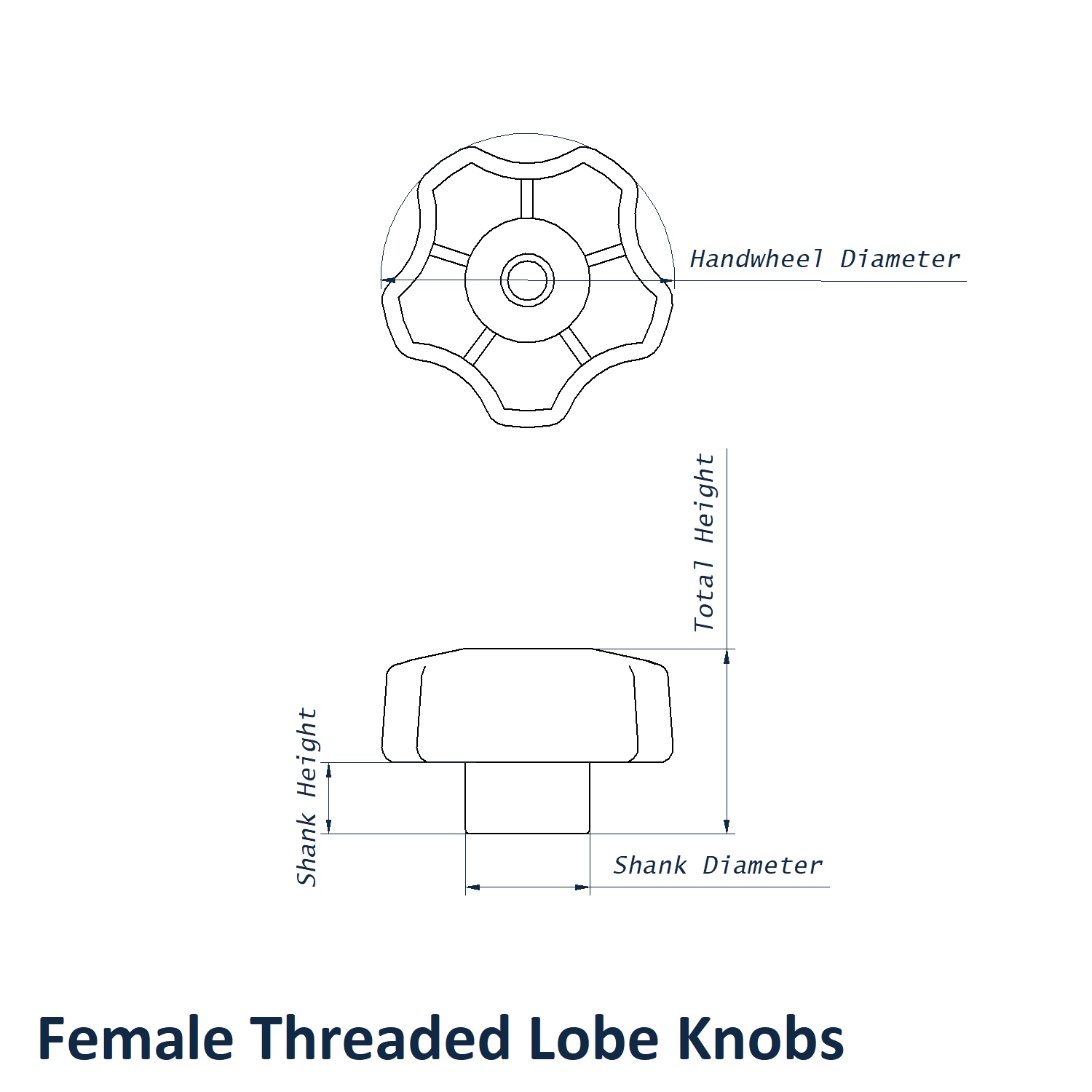

Technical Specifications

• Handwheel Diameter: 40mm
• Thread: M6
• Total Height: 29mm
• Shank Height: 12mm
• Shank Diameter: 18mm
• Lobes: 5
• Handle Material: Polypropylene & TPE
• Thread Material: Brass
• Thread Type: Female internal thread
• Finish Options: Natural Black Polished or Anodised
• Installation: Manual fitment toolless operation
• Function: Clamping adjustment and fixing
• Operating Temperature: Dependent on material (Nylon up to 120°C Stainless Steel up to 300°C)
• Compliance: RoHS REACH and California Prop 65 compliant

Benefits:

• Strong internal thread ensures secure attachment and control
• Easy installation and removal without tools
• Excellent resistance to wear and corrosion
• Available in multiple materials to suit varied applications
• Lightweight and low maintenance for everyday use

Why Buy from Vital Parts?

At Vital Parts we supply a complete range of high quality handwheels suitable for industrial and commercial use. Our Female Threaded Handwheels are produced to precise standards ensuring reliability and ease of operation. With a large UK stock and material variety we offer both standard and custom options to meet your project needs.

• Fast UK delivery on stocked handwheel types
• Consistent quality across all materials
• Technical support to assist with product selection
