6.6 -7.6mm Finned Pull Tab Plug (7.9mm Fin Diameter) | Bio LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.28 | £0.33 |
| 100 - 499 | £0.20 | £0.24 |
| 500 - 999 | £0.15 | £0.18 |
| 1000 - 4999 | £0.12 | £0.14 |
| 5000 + | £0.07 | £0.08 |
Product Specification
| For Hole ID | 6.6 -7.6mm |
| Finned Diameter | 7.9mm |
| Finned Depth | 6.0mm |
| Finned Width | 5.5mm |
| Pull Tab Length | 25mm |
| Flange Diameter | 11mm |
| Material | Bio LDPE |
| Colour | Green |
Frequently Bought Together
Total Price: £0.00

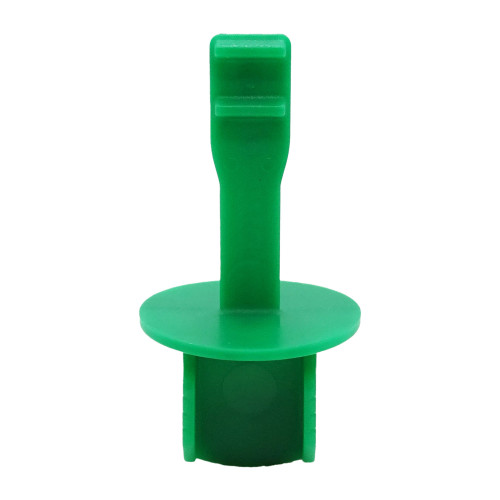

6.6-7.6mm Green Bio LDPE Finned Pull Tab Plug
Designed for compact bores, this 6.6-7.6mm green finned pull tab plug provides temporary internal protection without making removal difficult. Its flexible Bio LDPE body uses several fins to grip the hole wall while the 11mm flange covers the surrounding face. The 25mm pull tab remains easy to locate during assembly, inspection or unpacking.
What Are Finned Pull Tab Plugs?
A finned pull tab plug is pressed into an internal opening so the flexible ribs create an interference fit across a defined hole range. On this smaller size, the 7.9mm finned diameter is suited to narrow ports where a plain cap would not protect the bore. The external flange helps stop the plug being pushed too deeply and the tab allows controlled removal without tools.
Common Applications
- Compact Fluid Connectors: Protects small connector openings from dust and handling debris before final assembly.
- Automotive Subassemblies: Useful for temporarily closing narrow injector, sensor and brake-system ports during production.
- Precision Machining: Keeps finished bores covered while components move between machining, inspection and packing.
- Small Hydraulic Fittings: Provides visible protection for compact valve and manifold openings during storage.

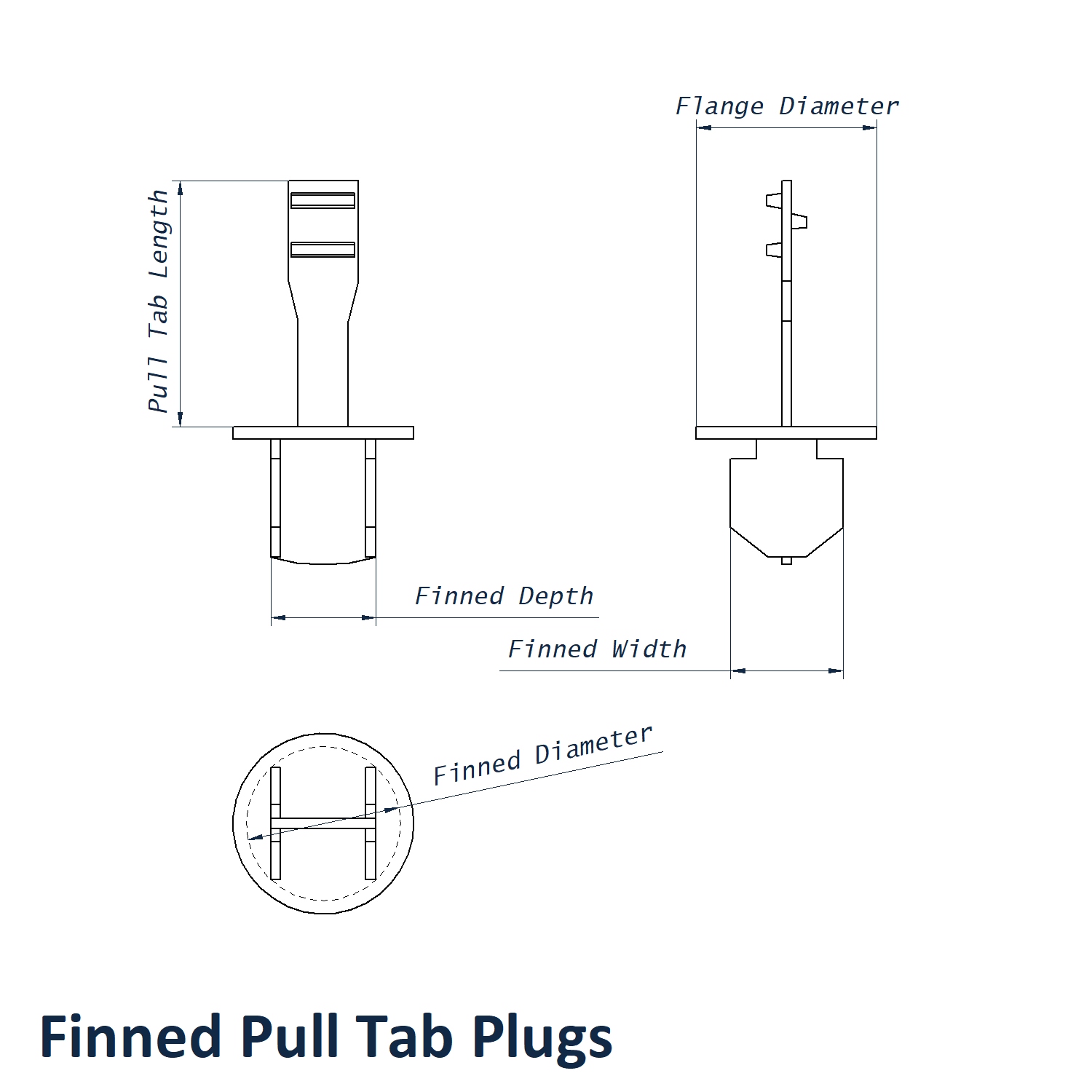

6.6 -7.6mm Green Bio LDPE Finned Pull Tab Plug Dimensions
- Finned Depth: 6.0mm
- Finned Width: 5.5mm
- Pull Tab Length: 25mm
- Flange Diameter: 11mm
- Finned Diameter: 7.9mm
- For Hole ID: 6.6 -7.6mm
- Colour: Green
- Material: Bio LDPE
Key Benefits
- Small finned profile suits hole IDs from 6.6 -7.6mm
- Green Bio LDPE provides flexibility with a plant-derived material option
- Long pull tab supports quick hand removal in restricted assemblies
- Flange shields the entry face from light contact and contamination
View the complete Finned Pull Tab Plugs range to compare this compact size with larger bore options. For help checking the correct fit against a measured hole, speak with the Vital Parts technical sales team on 01233 713 581.
