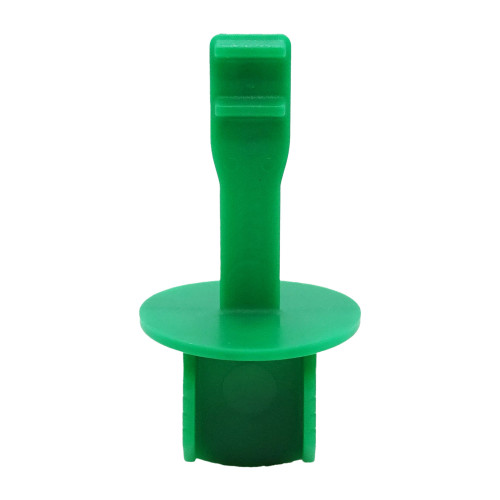

11.2 -14.8mm Finned Pull Tab Plug (15.2mm Fin Diameter) | Bio LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.28 | £0.33 |
| 100 - 499 | £0.20 | £0.24 |
| 500 - 999 | £0.16 | £0.19 |
| 1000 - 4999 | £0.12 | £0.15 |
| 5000 + | £0.08 | £0.10 |
Product Specification
| For Hole ID | 11.2 -14.8mm |
| Finned Diameter | 15.2mm |
| Finned Depth | 10.7mm |
| Finned Width | 11.3mm |
| Pull Tab Length | 25mm |
| Flange Diameter | 18mm |
| Material | Bio LDPE |
| Colour | Green |
Frequently Bought Together
Total Price: £0.00
11.2-14.8mm Green Bio LDPE Finned Pull Tab Plug
Suitable for holes measuring 11.2-14.8mm, this flexible green pull tab stopper protects both the internal bore and the surrounding face. Its 15.2mm finned diameter provides the working interference fit while the 18mm flange acts as a positive stop. The Bio LDPE material offers useful flexibility for repeated fitting and removal.
What Are Finned Pull Tab Plugs?
The plug is installed by pressing its tapered finned body into the opening until the flange rests against the component. Each fin flexes independently, allowing the product to accommodate the stated range rather than one single hole diameter. When access is required, the extended tab can be gripped and pulled without damaging the protected bore.
Common Applications
- Hydraulic Manifolds: Temporarily closes open galleries and connection points during assembly or servicing.
- Agricultural Equipment: Protects fluid-system ports on components stored before installation onto machinery.
- Production Line Protection: Keeps prepared openings covered between cleaning, inspection and final build stages.
- Transport Packaging: Reduces the chance of dirt entering components while parts are boxed or palletised.

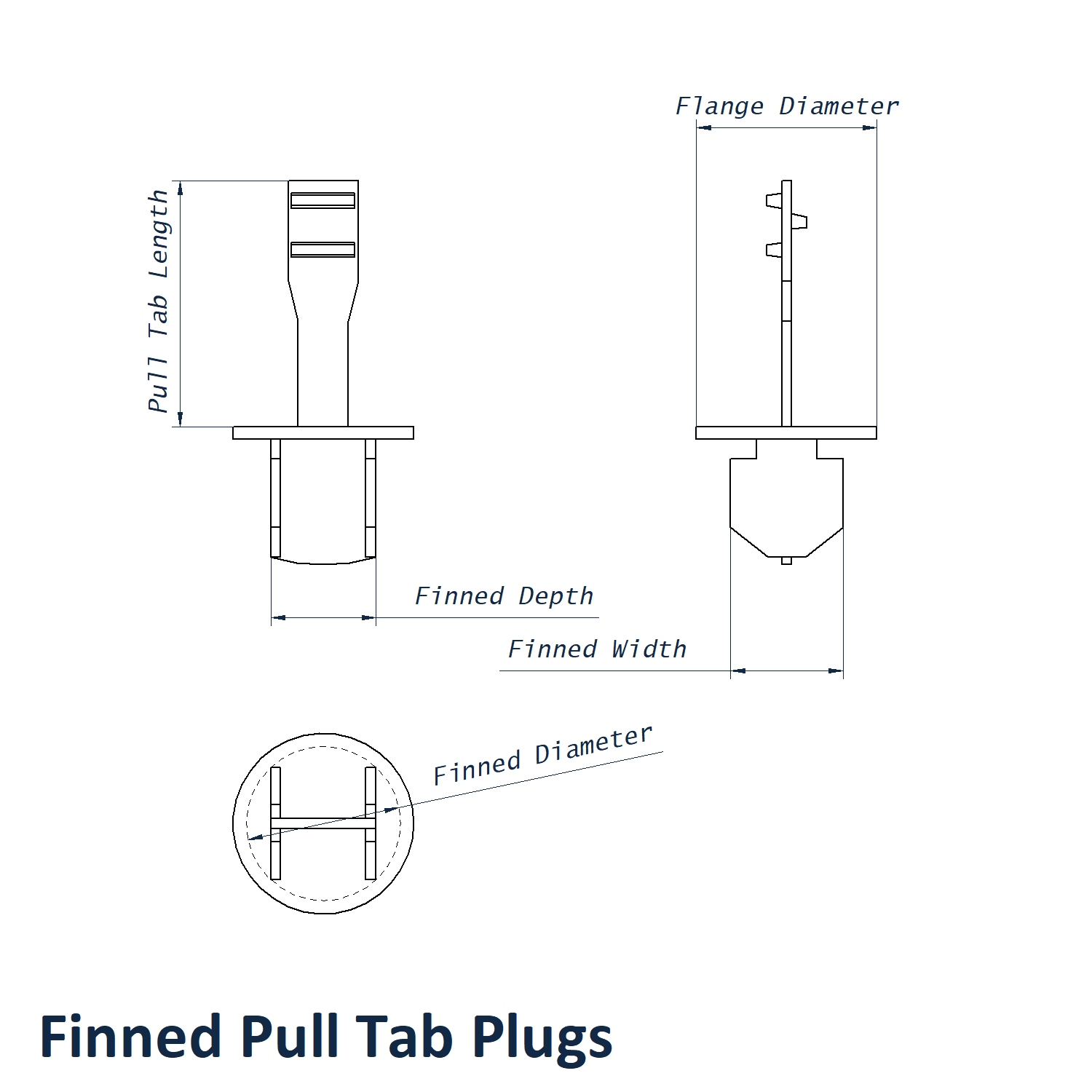

11.2 -14.8mm Green Bio LDPE Finned Pull Tab Plug Dimensions
- Finned Depth: 10.7mm
- Finned Width: 11.3mm
- Pull Tab Length: 25mm
- Flange Diameter: 18mm
- Finned Diameter: 15.2mm
- For Hole ID: 11.2 -14.8mm
- Colour: Green
- Material: Bio LDPE
Key Benefits
- Broad 11.2 -14.8mm fit range can reduce the number of plug sizes required
- 18mm flange covers the hole edge and limits insertion depth
- Bio LDPE remains flexible for practical push-fit installation
- Textured pull feature is accessible when protective gloves are worn
The supplied size forms part of the wider Finned Pull Tab Plug collection for fluid handling and component protection. For help assessing bore tolerance or quantity requirements, call 01233 713 581.
