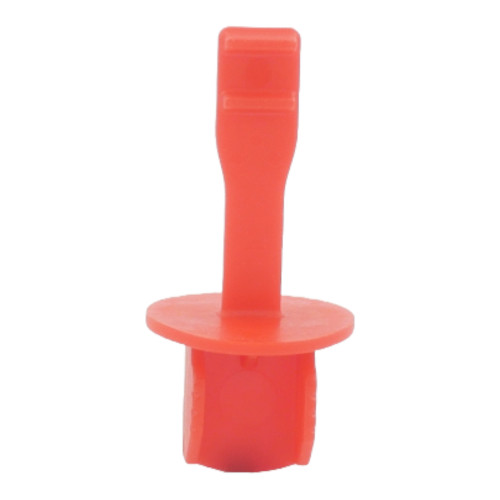

20 -22.5mm Finned Pull Tab Plug (23.6mm Fin Diameter) | Recycled LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.29 | £0.35 |
| 100 - 499 | £0.22 | £0.26 |
| 500 - 999 | £0.17 | £0.21 |
| 1000 - 4999 | £0.14 | £0.17 |
| 5000 + | £0.08 | £0.10 |
£0.35 / each
.png)

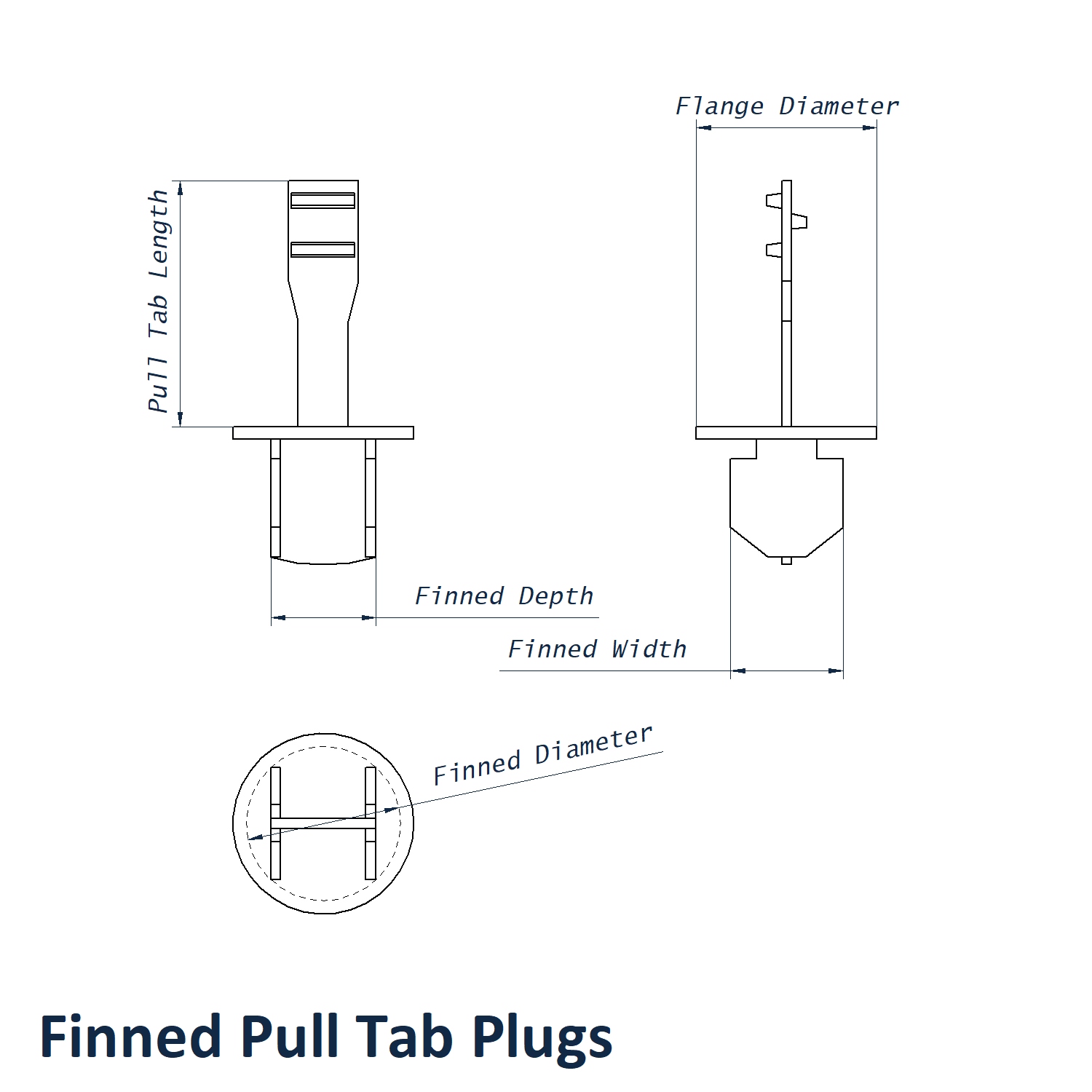

Product Specification
| For Hole ID | 20.0 -22.5mm |
| Finned Diameter | 23.6mm |
| Finned Depth | 15.9mm |
| Finned Width | 17.7mm |
| Pull Tab Length | 25mm |
| Flange Diameter | 26mm |
| Material | Recycled LDPE |
| Colour | Red |
Frequently Bought Together
Total Price: £0.00
20.0-22.5mm Red Recycled LDPE Finned Pull Tab Plug
Made to protect substantial 20.0-22.5mm openings, this red finned pull tab plug is the largest Recycled LDPE option in the uploaded range. The 23.6mm finned section creates flexible internal contact and the 26mm flange covers the outer face. A prominent tab supports fast removal during installation or servicing.
What Are Finned Pull Tab Plugs?
The plug works as a temporary push-fit closure for unthreaded bores and ports. Its sequence of fins deforms to suit the measured hole while the flange remains outside the component as a depth stop. Because the design is removed by its own tab, operators do not need to lever against the machined surface.
Common Applications
- Heavy Hydraulic Assemblies: Protects large connection points on pumps, manifolds and cylinders.
- Marine Equipment Manufacture: Covers suitable component bores during workshop storage and transport.
- Industrial Plant Spares: Keeps larger replacement parts protected until maintenance teams require them.
- Machinery Protection: Provides a visible temporary barrier during rebuilds, relocation and commissioning.
20.0 -22.5mm Red Recycled LDPE Finned Pull Tab Plug Dimensions
- Finned Depth: 15.9mm
- Finned Width: 17.7mm
- Pull Tab Length: 25mm
- Flange Diameter: 26mm
- Finned Diameter: 23.6mm
- For Hole ID: 20.0 -22.5mm
- Colour: Red
- Material: Recycled LDPE
Key Benefits
- Designed for 20.0 -22.5mm internal diameters
- 26mm flange offers the widest face coverage in this product set
- Red Recycled LDPE combines flexible fitting with easy visual identification
- Pull-tab removal avoids contact between tools and the protected bore
The full selection of hole ranges can be reviewed on the Vital Parts Finned Pull Tab Plugs category page. For assistance with size selection, samples or regular order quantities, telephone 01233 713 581.
