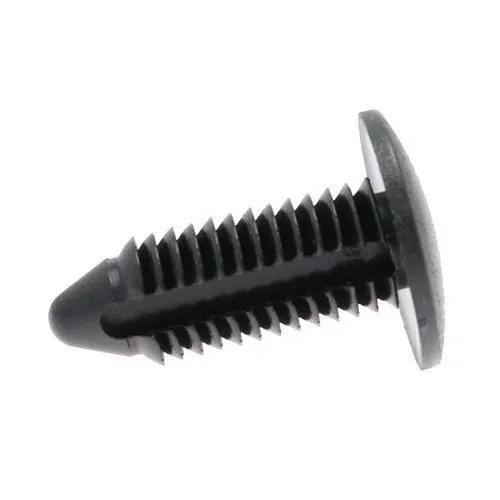

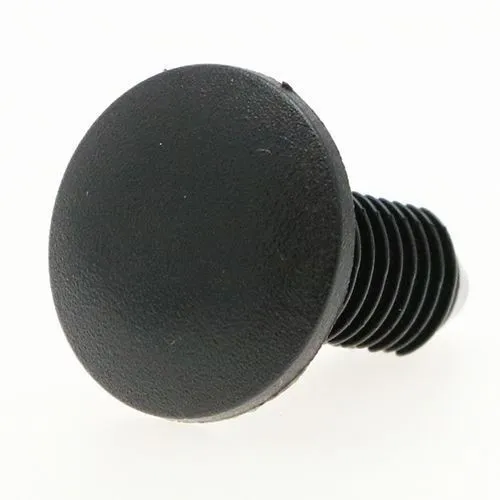

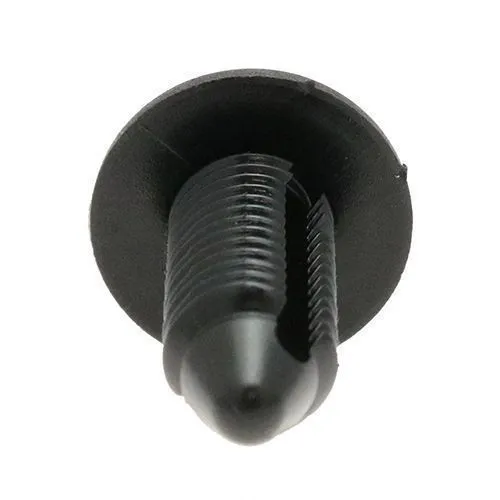

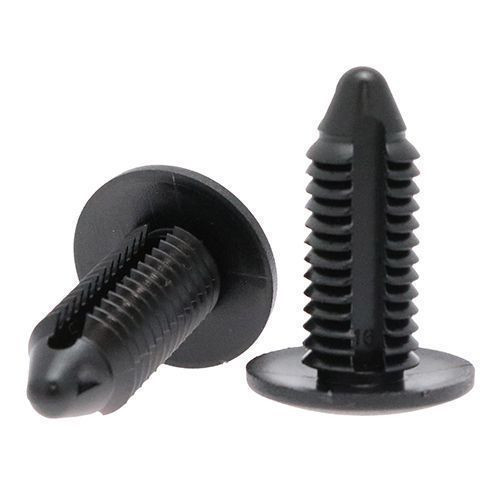

4.8mm x 17.3mm Fir Tree Clip (0.7mm-13mm Panel Thickness) Black | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.44 | £0.53 |
| 100 - 499 | £0.35 | £0.42 |
| 500 - 999 | £0.28 | £0.34 |
| 1000 - 4999 | £0.23 | £0.28 |
| 5000 + | £0.18 | £0.22 |
£0.53 / each
.png)
Product Specification
| Hole Diameter | 4.80mm |
| Min Panel Thickness | 0.7mm |
| Max Panel Thickness | 13.0mm |
| Length | 17.30mm |
| Head Diameter | 11.0mm |
| Head Height | 1.7mm |
| Material | Nylon |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
4.8mm x 17.3mm Fir Tree Plug (0.7mm-13mm Panel Thickness) | Black Nylon
Providing a secure option for blind-hole fixing and panel retention, this Nylon fir tree plug with a 4.8mm hole diameter and 17.3mm length, with a 11mm head diameter is suitable for agricultural equipment panels. The one-piece push-fit design keeps installation simple on production lines and repair work.
This style of barbed panel fastener the moulded Nylon body provides a cost-effective fastener for high-volume production and maintenance work and Nylon construction gives a lightweight fixing with good durability for everyday industrial use. It is a practical Nylon fixing for repetitive assembly work, maintenance replacement and light duty panel retention.
Common Applications
- Retaining plastic housings where metal screws are unsuitable
- Fastening light covers and guards into pre-drilled holes
- Panel fastening for HVAC ductwork covers and housings
- Finishing visible holes on cabinets, casings and enclosures

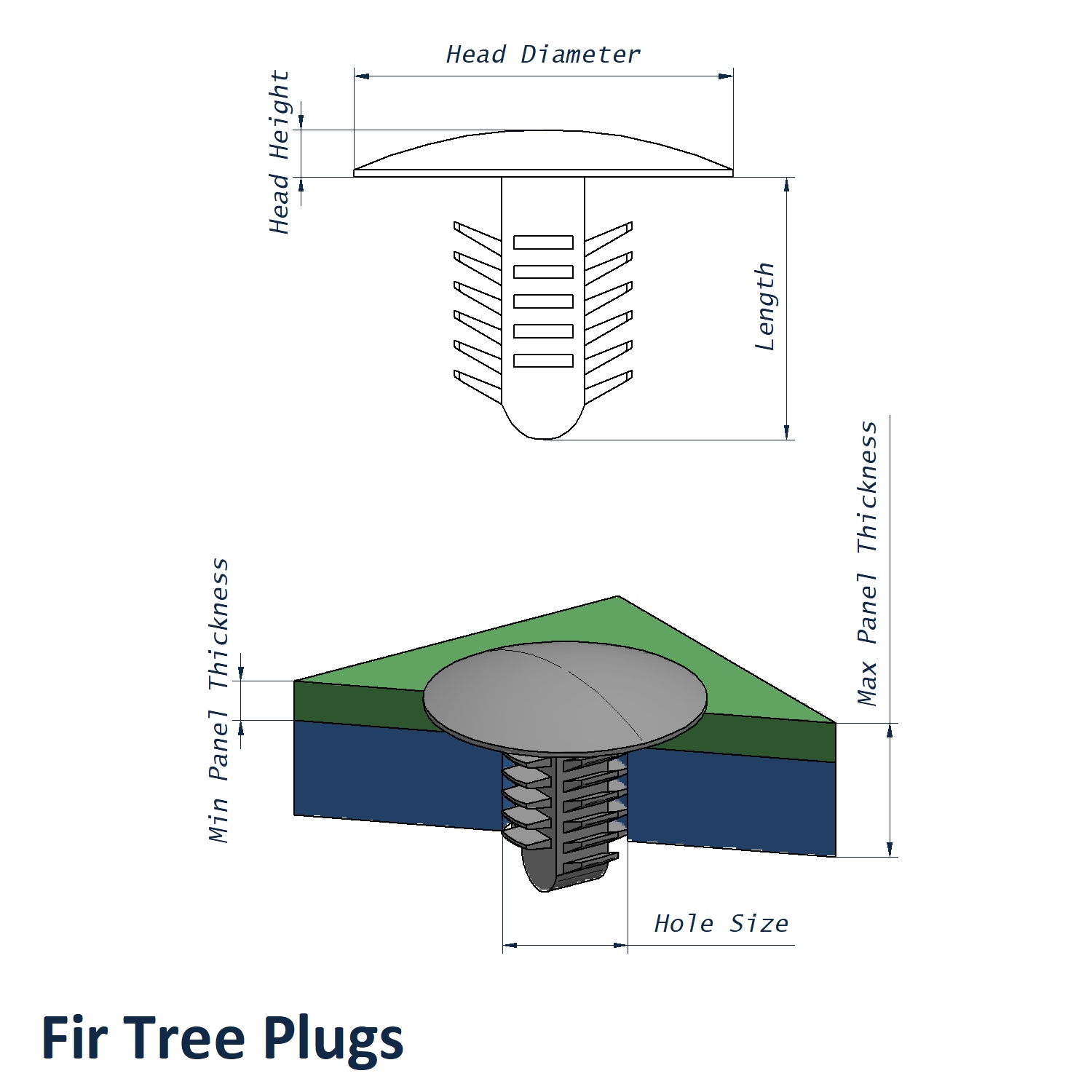

4.8mm x 17.3mm Black Fir Tree Plug Dimensions
- Hole Diameter: 4.80mm
- Min Panel Thickness: 0.7mm
- Max Panel Thickness: 13.0mm
- Length: 17.30mm
- Head Diameter: 11.0mm
- Head Height: 1.7mm
- Colour: Black
- Material: Nylon
Fir Tree Plug Selection Guidance
When selecting a fir tree plug, check the hole diameter, panel thickness range and head diameter against your panel design. These barbed plugs are intended for push-fit installation into prepared holes and are commonly chosen where a secure, low-cost panel fixing is needed.
View our full Fir Tree Plugs range.
Product Support and Trade Orders
For project quantities, replacement fastener checks or help selecting the right barbed plug size, contact Vital Parts on 01233 713581. Our team can advise on fit, samples where available and trade supply options.
