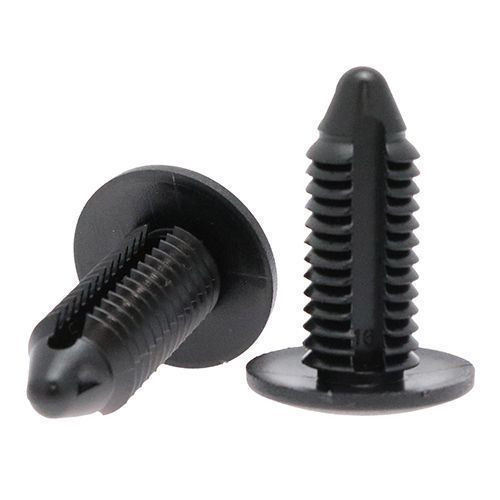

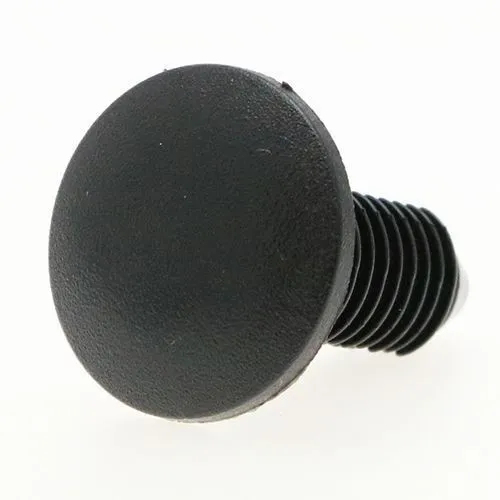

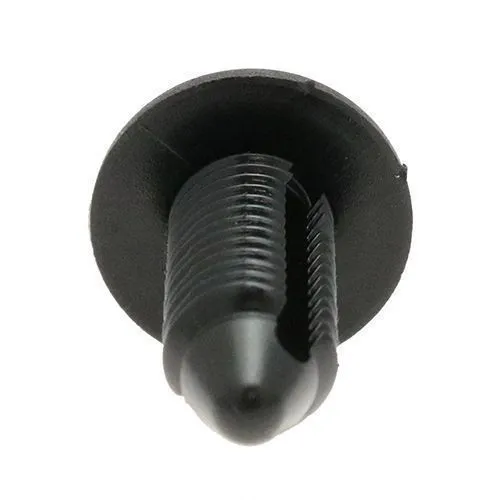

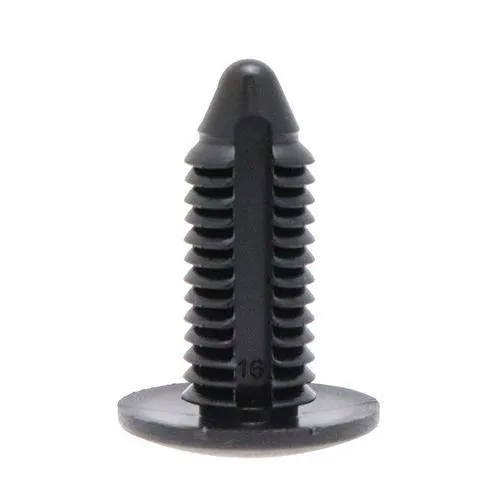

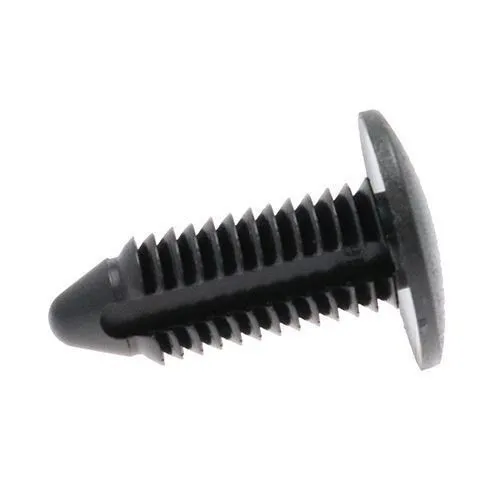

8.7mm x 19.1mm Fir Tree Clip (1.4mm-13mm Panel Thickness) Black | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.44 | £0.53 |
| 100 - 499 | £0.43 | £0.52 |
| 500 - 999 | £0.42 | £0.51 |
| 1000 - 4999 | £0.42 | £0.50 |
| 5000 + | £0.41 | £0.49 |
Product Specification
| Hole Diameter | 8.70mm |
| Min Panel Thickness | 1.4mm |
| Max Panel Thickness | 13.0mm |
| Length | 19.10mm |
| Head Diameter | 16.6mm |
| Head Height | 2.1mm |
| Material | Nylon |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
8.7mm x 19.1mm Fir Tree Plug (1.4mm-13mm Panel Thickness) | Black Nylon
This barbed fir tree plug is a black Nylon push-fit fastening component with a 8.7mm hole diameter and 19.1mm length, with a 16.6mm head diameter. It is a useful choice for machine guard fixing where panels need to be retained without a threaded fixing or rear-side access.
As a Nylon panel plug, it the one-way ribbed stem creates a firm mechanical hold without needing a nut, screw or rear access and can also be used to blank off unused apertures. This makes it useful for enclosure panels, trim covers and fabricated assemblies where a clean surface finish is required.
Common Applications
- Retaining electrical enclosure covers and access panels
- Blind-hole fixing in machinery panels and equipment covers
- Light duty fastening for marine interior panels and covers
- Assembly of appliance panels, service flaps and trim sections

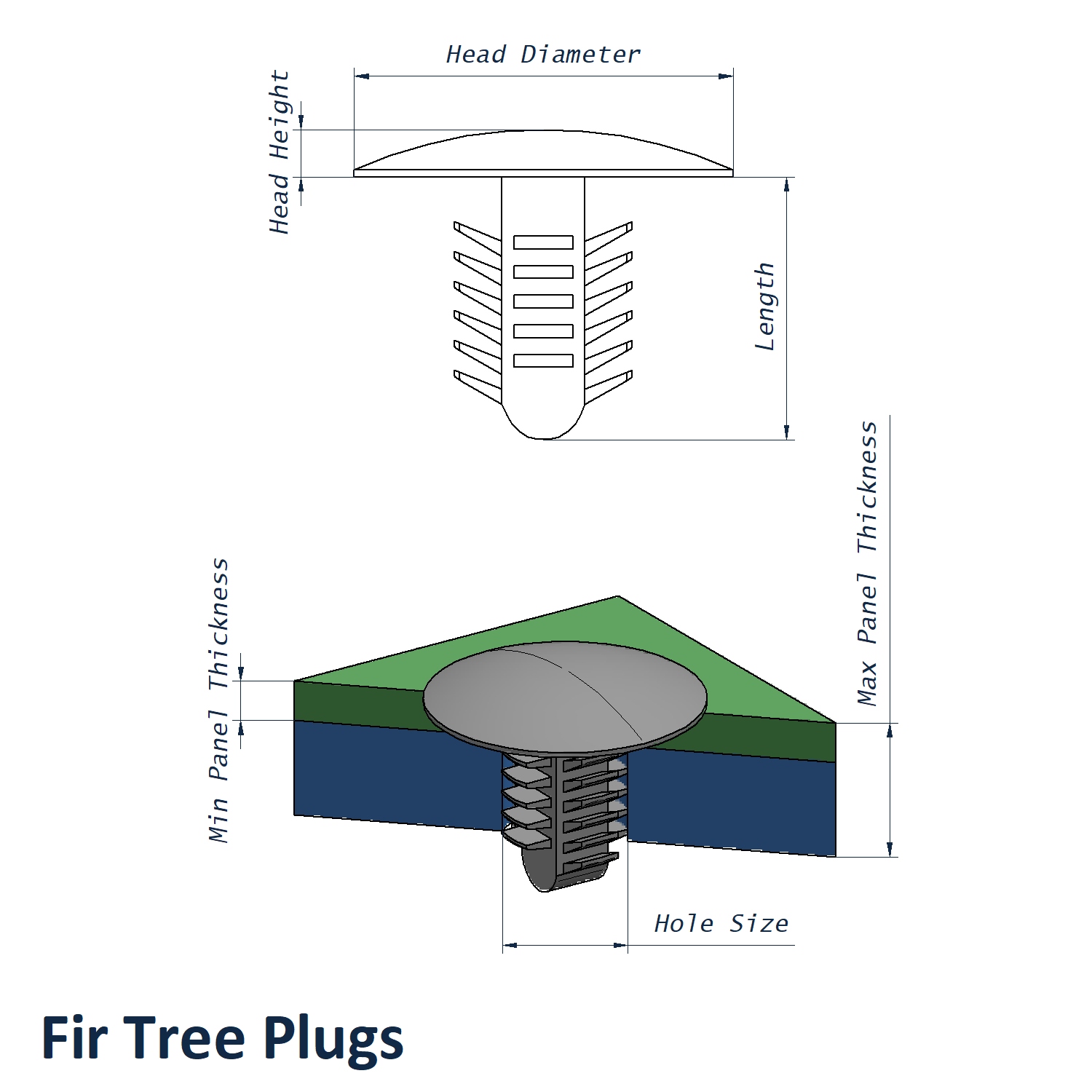

8.7mm x 19.1mm Black Fir Tree Plug Dimensions
- Hole Diameter: 8.70mm
- Min Panel Thickness: 1.4mm
- Max Panel Thickness: 13.0mm
- Length: 19.10mm
- Head Diameter: 16.6mm
- Head Height: 2.1mm
- Colour: Black
- Material: Nylon
Fir Tree Plug Selection Guidance
When selecting a fir tree plug, check the hole diameter, panel thickness range and head diameter against your panel design. These barbed plugs are intended for push-fit installation into prepared holes and are commonly chosen where a secure, low-cost panel fixing is needed.
View our full Fir Tree Plugs range.
Product Support and Trade Orders
If you are matching a fir tree plug to an existing panel hole or replacing a current fastener, contact the Vital Parts team on 01233 713581 for sizing advice, sample support where available and trade order help.
