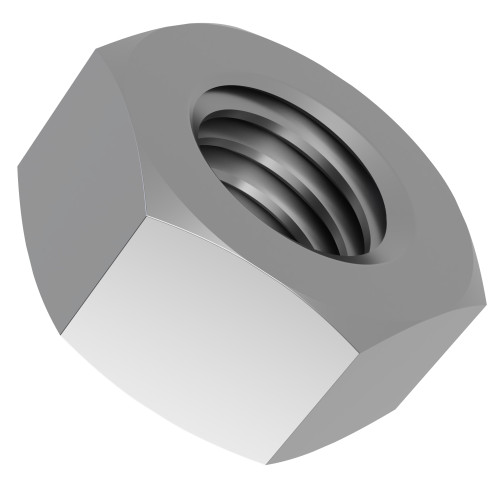

M10 Hex Nut (DIN 934) | Marine Grade A4-70 Stainless Steel

Product code: HN934-M10-A4-70
View All Specifications
M10 Hex Nut (DIN 934) | Marine Grade A4-70 Stainless Steel
M10 Hex Nut (DIN 934) | Marine Grade A4-70 Stainless Steel
M10 Hex Nut (DIN 934) | Marine Grade A4-70 Stainless Steel
M10 Hex Nut (DIN 934) | Marine Grade A4-70 Stainless Steel
M10 Hex Nut (DIN 934) | Marine Grade A4-70 Stainless Steel
M10 Hex Nut (DIN 934) | Marine Grade A4-70 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £0.21 £0.25
100 - 999 £0.17 £0.21
1000 - 5999 £0.15 £0.18
6000 + £0.13 £0.16

£0.25 / each


Up to 144 units
In Stock
Vital Parts Tick
Order within for same day dispatch.
Up to 684,843 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
684,843 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M10
Thread Pitch 1.50mm
Material A4-70 Stainless Steel
Across Flats 17.0mm
Height 8.00mm
Standard DIN 934

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M10 Full Hex Nut (DIN 934) | A4-70 Stainless Steel

For a removable M10 threaded connection, this full hexagon nut combines stainless steel construction with the dimensions specified for DIN 934. For machinery, panels and fabrication in environments suited to the selected stainless steel grade, confirm the mating fastener thread and chosen material are appropriate for the assembly.

What Are Full Hex Nuts?

Full hex nuts are internally threaded fasteners with six external flats. A matching bolt or machine screw passes through an assembly and the nut is tightened to hold the components together. Different types of standard hex nuts can be selected according to thread size, material and available installation space. For a complete threaded joint, select a matching fastener from our bolts and screws alongside appropriately sized steel washers where required. Compare metric nut dimensions when replacing a worn or missing fastener.

Common Applications

  • Machinery Assembly: Fastening compatible M10 bolts through equipment frames where the specified A4-70 Stainless Steel is suitable.
  • Fabrication: Joining metal or non-metal components using a matching threaded fastener and the correct material pairing in fixture supports.
  • Equipment Maintenance: Replacing an existing M10 nut on a compatible threaded rod or screw while checking 17mm spanner clearance.
  • General Engineering: Providing a removable threaded connection for mechanical subassemblies with a nut of the specified grade.

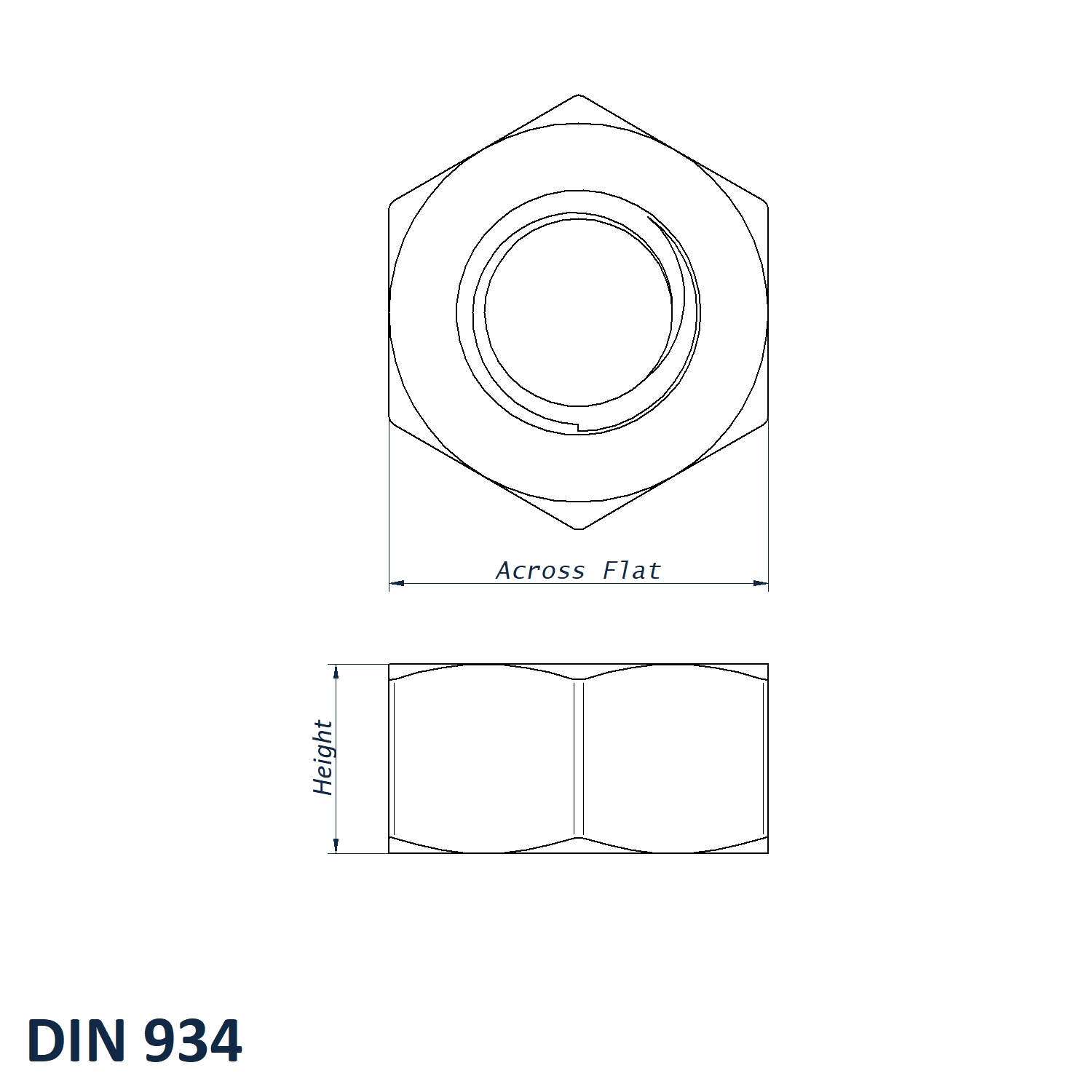

M10 Full Hex Nut Dimensions

  • Thread Size: M10
  • Thread Pitch: 1.50mm
  • Across Flats: 17.0mm
  • Height: 8.00mm
  • Material: A4-70 Stainless Steel
  • Standard: DIN 934

Key Benefits

  • The M10 metric thread offers a defined fit for matching external threads.
  • Six external flats provide contact surfaces for a suitable spanner or socket.
  • 17mm across flats helps determine tool fit and surrounding clearance.
  • Supplied in A4-70 Stainless Steel to meet the chosen material specification.

Our DIN 934 full hex nuts cover alternative dimensions and materials for matching bolts and threaded rods. If you need help selecting the correct size, call us on 01233 713581.
