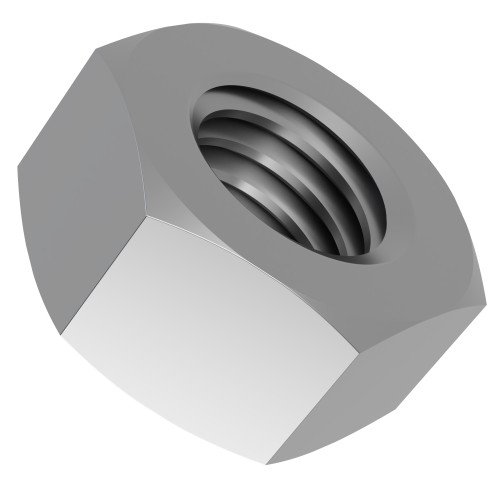

M16 Hex Nut (DIN 934) | Marine Grade A4-70 Stainless Steel

Product code: HN934-M16-A4-70
View All Specifications
M16 Hex Nut (DIN 934) | Marine Grade A4-70 Stainless Steel
M16 Hex Nut (DIN 934) | Marine Grade A4-70 Stainless Steel
M16 Hex Nut (DIN 934) | Marine Grade A4-70 Stainless Steel
M16 Hex Nut (DIN 934) | Marine Grade A4-70 Stainless Steel
M16 Hex Nut (DIN 934) | Marine Grade A4-70 Stainless Steel
M16 Hex Nut (DIN 934) | Marine Grade A4-70 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £0.38 £0.45
100 - 999 £0.33 £0.40
1000 - 2499 £0.29 £0.35
2500 + £0.27 £0.32

£0.45 / each


Up to 487,108 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
487,108 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M16
Thread Pitch 2.00mm
Material A4-70 Stainless Steel
Across Flats 24.0mm
Height 13.00mm
Standard DIN 934

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M16 Full Hex Nut (DIN 934) | A4-70 Stainless Steel

Designed for M16 threaded fixings, this DIN 934 hexagonal nut uses stainless steel construction and a six-sided profile for spanner or socket installation. Its 24mm across-flats measurement provides a reference when selecting the correct spanner or socket.

What Are Full Hex Nuts?

A DIN 934 hex nut is used on a threaded rod, bolt or compatible machine screw to provide a removable joint. Its hexagonal exterior is designed for tightening with an appropriate hand tool. Different types of standard hex nuts can be selected according to thread size, material and available installation space. For a complete threaded joint, select a matching fastener from our bolts and screws alongside appropriately sized steel washers where required. This M16 hexagonal nut is an option for assemblies using corresponding metric hardware.

Common Applications

  • Machinery Assembly: Fastening compatible M16 bolts through fabricated brackets where the specified A4-70 Stainless Steel is suitable.
  • Fabrication: Joining metal or non-metal components using a matching threaded fastener and the correct material pairing in serviceable fittings.
  • Equipment Maintenance: Replacing an existing M16 nut on a compatible threaded rod or screw while checking 24mm spanner clearance.
  • General Engineering: Providing a removable threaded connection for panel brackets with a nut of the specified grade.

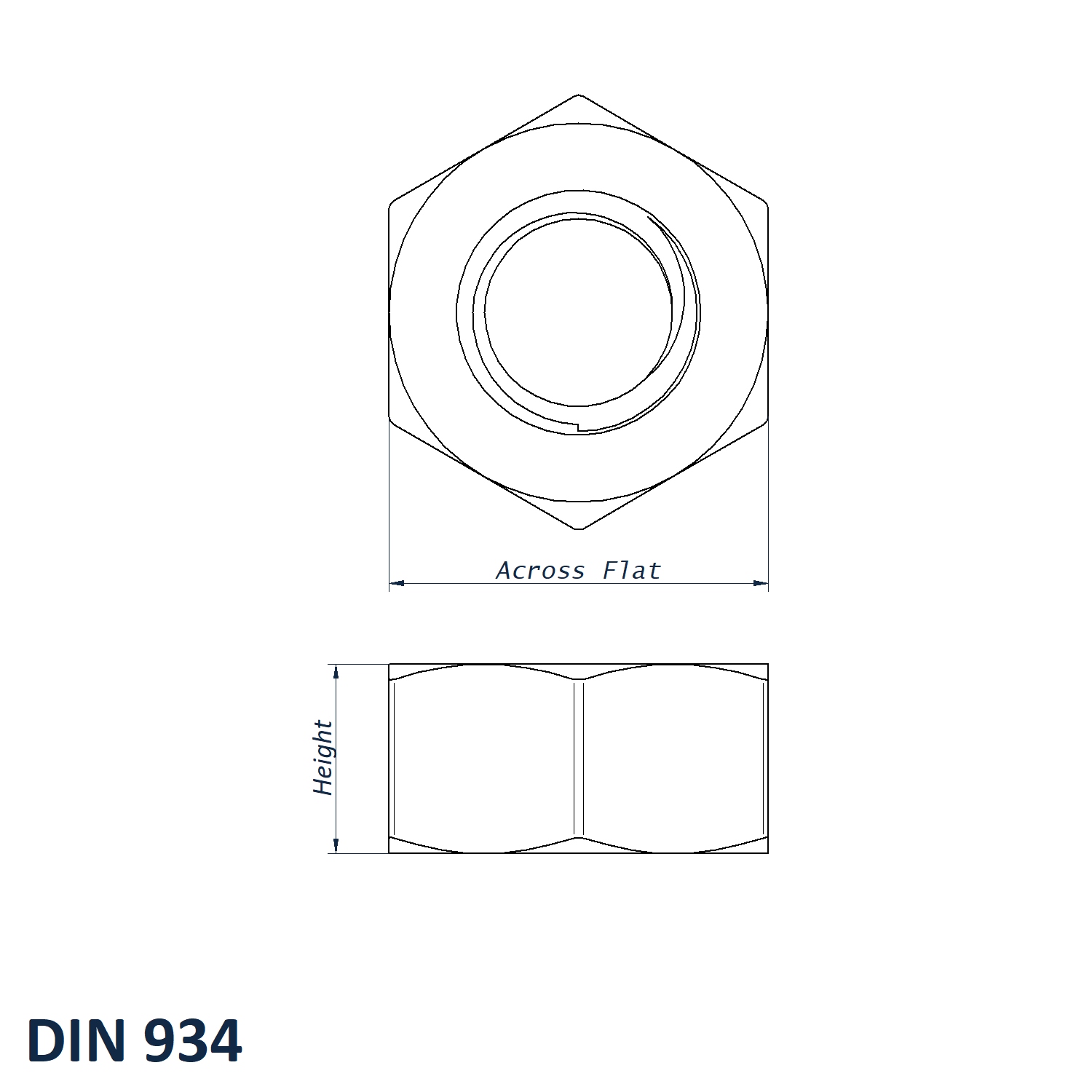

M16 Full Hex Nut Dimensions

  • Thread Size: M16
  • Thread Pitch: 2.00mm
  • Across Flats: 24.0mm
  • Height: 13.00mm
  • Material: A4-70 Stainless Steel
  • Standard: DIN 934

Key Benefits

  • The M16 metric thread offers a defined fit for matching external threads.
  • Six external flats provide contact surfaces for a suitable spanner or socket.
  • 24mm across flats helps determine tool fit and surrounding clearance.
  • Supplied in A4-70 Stainless Steel to meet the chosen material specification.

Our DIN 934 full hex nuts cover alternative dimensions and materials for matching bolts and threaded rods. If you need help selecting the correct size, call us on 01233 713581.
