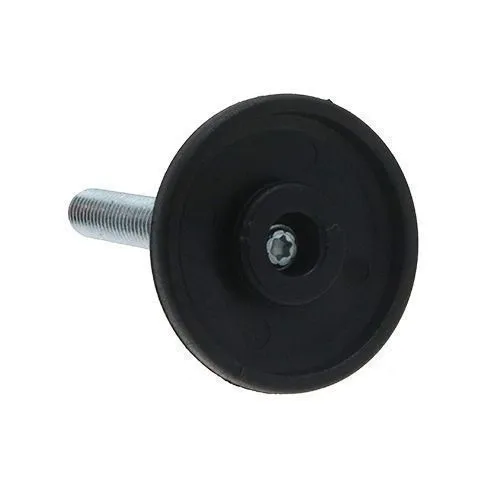

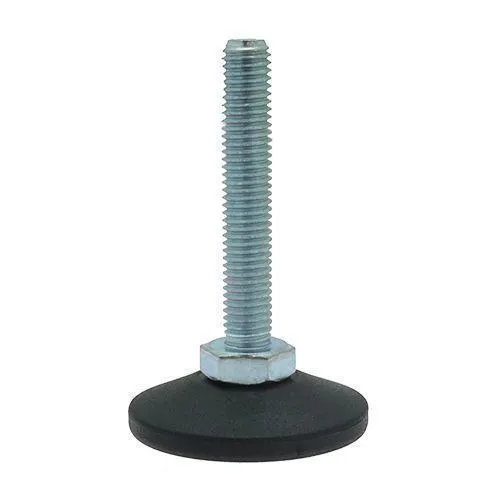

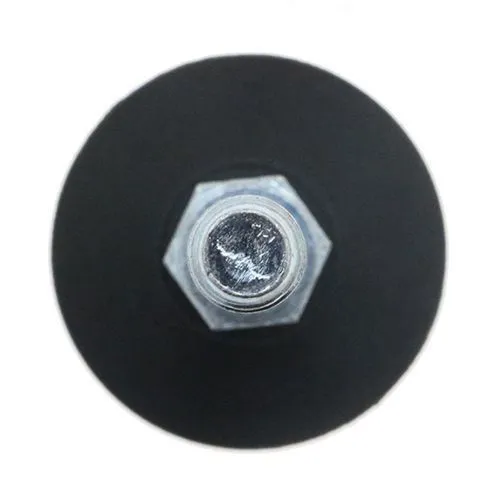

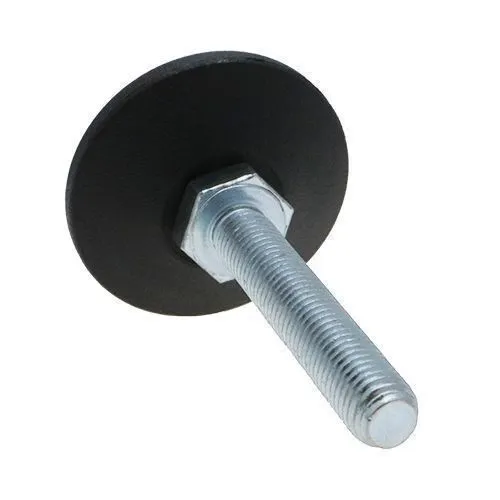

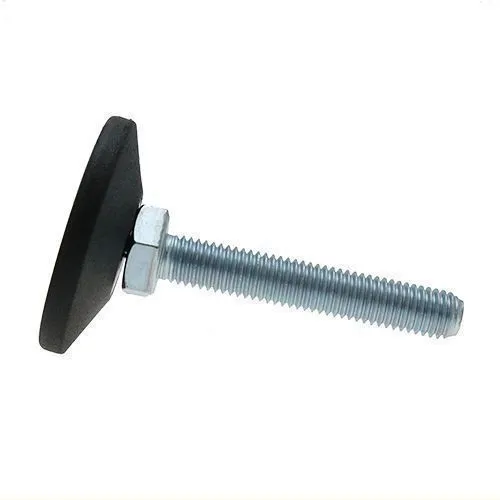

M12 x 60mm Articulating Foot - 38mm Base (650kg Load) | Polypropylene & Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.30 | £1.56 |
| 100 - 249 | £1.20 | £1.44 |
| 250 - 499 | £1.11 | £1.33 |
| 500 - 999 | £1.02 | £1.22 |
| 1000 + | £0.93 | £1.11 |
£1.56 / each
Product Specification
| Thread Size | M12 |
| Thread Length | 60mm |
| Base Diameter | 38mm |
| Base Height | 10mm |
| Weight Rating | 650kg |
| Material | Polypropylene & Steel BZP |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
M12 x 60mm General Articulating Foot – 38mm Black Polyethylene Base (650kg)
This general-purpose M12 articulating foot has a 60mm threaded stem for height adjustment and a 38mm polyethylene base for floor contact. It can be fitted into a compatible internal thread beneath a cabinet, support frame or equipment housing.
What Are General Articulating Feet?
An articulating adjustable foot combines a male steel thread for mounting and height setting with a polyethylene contact pad. Unlike a rigid fixed foot, the pad can adjust its angle by up to 8° on an uneven surface. Select the M12 thread and 38mm footprint to match the assembly.
Common Applications
- Maintenance replacements: Specify a compatible foot by thread size, stud length and base diameter for existing equipment.
- Fabricated frames: Support a fabricated steel or aluminium frame with a 38mm floor-contact base.
- Storage furniture: Correct minor floor unevenness beneath cupboards or storage units using matching threaded fittings.
- Equipment cabinets: Set the height of a cabinet fitted with M12 threaded mounting points where minor floor variation needs accommodating.
M12 x 60mm General Articulating Foot Dimensions
- Base Diameter: 38mm
- Base Height: 10mm
- Thread Size: M12
- Thread Length: 60mm
- Weight Rating: 650kg
- Colour: Black
- Material: Polyethylene
- Threaded Stem Material: Steel
Key Benefits
- The male threaded connection allows the level to be adjusted during installation.
- The 38mm black polyethylene base provides a defined contact footprint beneath the assembly.
- The combination of steel threaded mounting and a polyethylene base separates the fixing and floor-contact functions.
- Up to 8° of base articulation helps the foot make contact with slightly uneven floor surfaces.
Explore more articulating feet for equipment to compare base sizes, thread lengths and weight ratings. If you need help selecting the correct foot, call us on 01233 713581.
