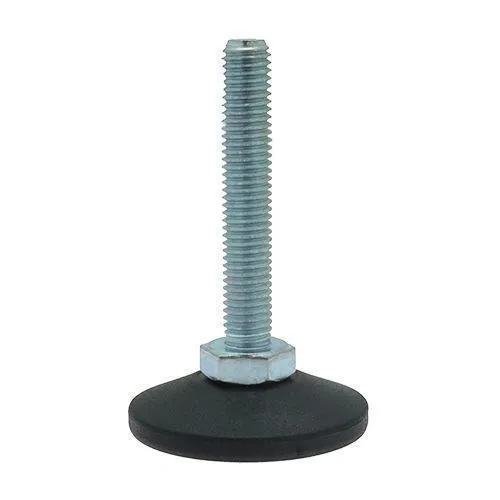

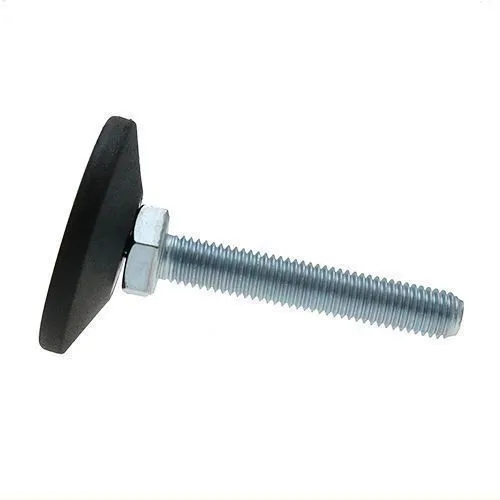

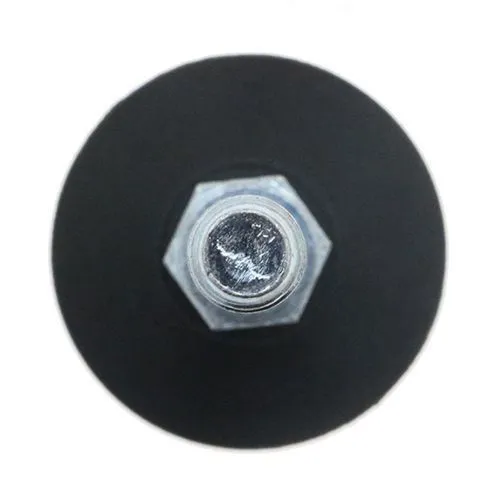

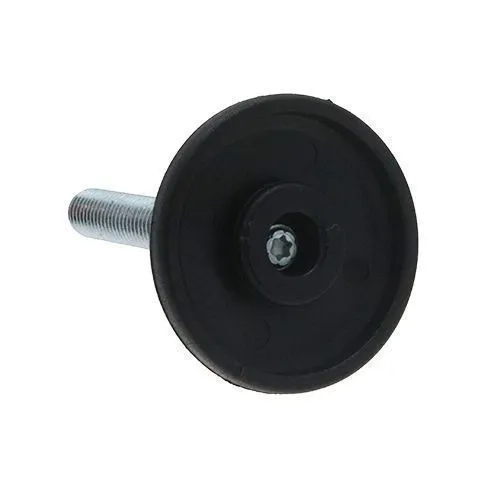

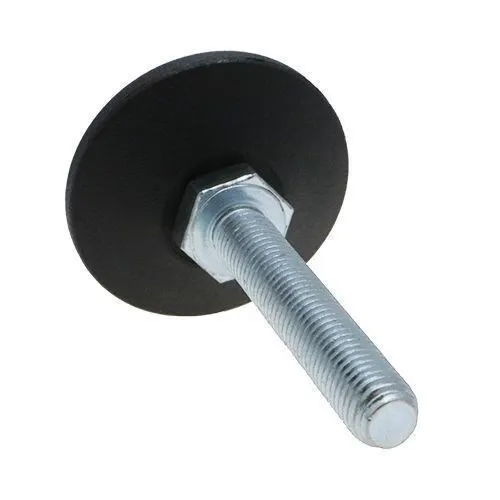

M12 x 30mm Articulating Foot - 48mm Base (650kg Load) | Polypropylene & Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.68 | £0.81 |
| 100 - 249 | £0.67 | £0.80 |
| 250 - 499 | £0.65 | £0.78 |
| 500 - 999 | £0.64 | £0.77 |
| 1000 + | £0.62 | £0.75 |
£0.81 / each
Product Specification
| Thread Size | M12 |
| Thread Length | 30mm |
| Base Diameter | 48mm |
| Base Height | 10mm |
| Weight Rating | 650kg |
| Material | Polypropylene & Steel BZP |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
M12 x 30mm General Articulating Foot – 48mm Black Polyethylene Base (650kg)
Designed for supporting equipment on floors that are not completely level, this M12 x 30mm adjustable foot uses a 48mm polyethylene base and steel mounting thread. Screw the stud into a matching threaded fitting and adjust its position to bring the supported item level.
What Are General Articulating Feet?
A general articulating foot is a screw-in support that can help steady equipment on an irregular floor. Its steel male thread provides vertical adjustment and its 48mm polyethylene base can swivel to suit floor angles of up to 8°. Check the full installation and load distribution when selecting feet.
Common Applications
- Maintenance replacements: Specify a compatible foot by thread size, stud length and base diameter for existing equipment.
- Fabricated frames: Support a fabricated steel or aluminium frame with a 48mm floor-contact base.
- Storage furniture: Correct minor floor unevenness beneath cupboards or storage units using matching threaded fittings.
- Equipment cabinets: Set the height of a cabinet fitted with M12 threaded mounting points where minor floor variation needs accommodating.

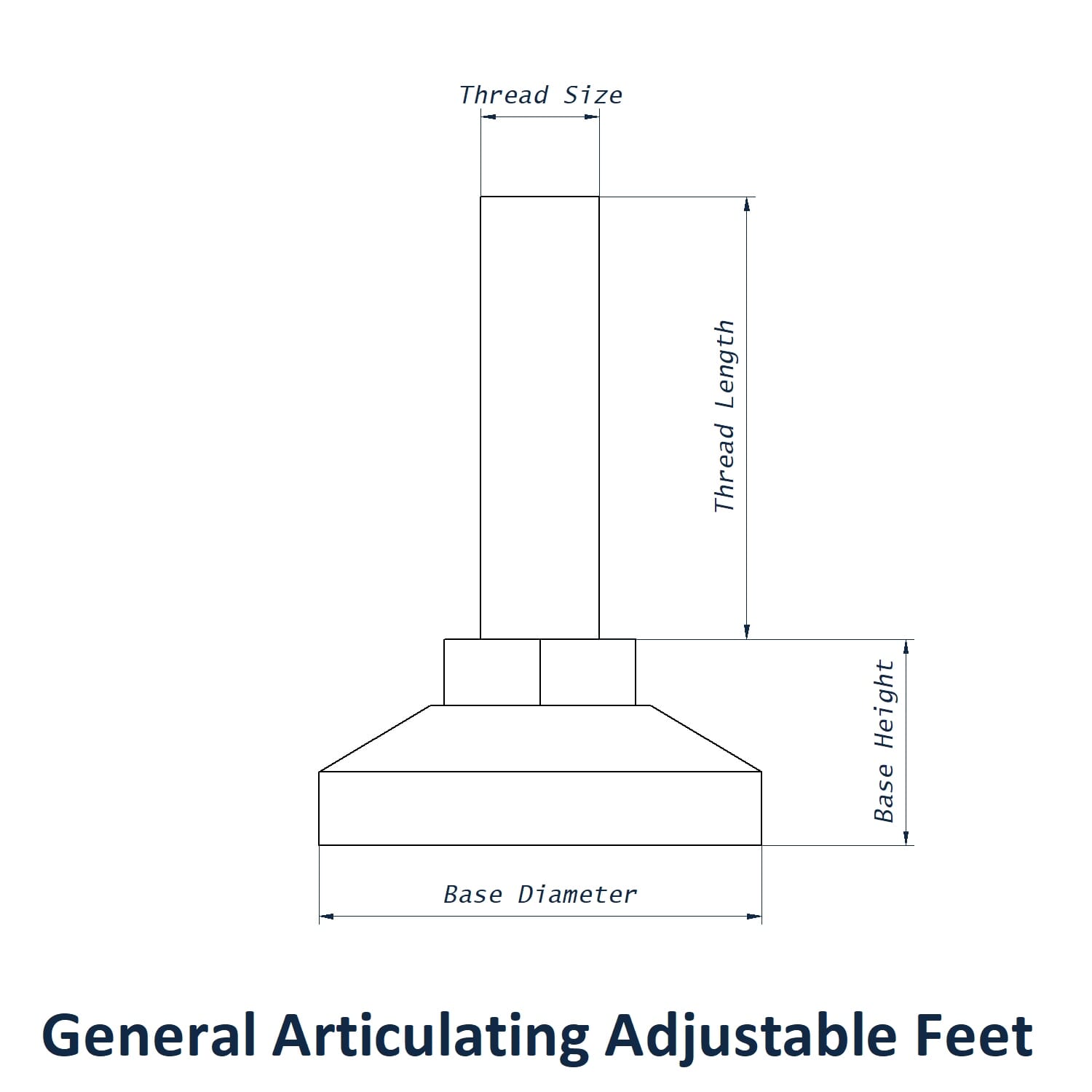

M12 x 30mm General Articulating Foot Dimensions
- Base Diameter: 48mm
- Base Height: 10mm
- Thread Size: M12
- Thread Length: 30mm
- Weight Rating: 650kg
- Colour: Black
- Material: Polyethylene
- Threaded Stem Material: Steel
Key Benefits
- The male threaded connection allows the level to be adjusted during installation.
- The 48mm black polyethylene base provides a defined contact footprint beneath the assembly.
- The combination of steel threaded mounting and a polyethylene base separates the fixing and floor-contact functions.
- Up to 8° of base articulation helps the foot make contact with slightly uneven floor surfaces.
Explore more general articulating adjustable feet to compare base sizes, thread lengths and weight ratings. If you need help selecting the correct foot, call us on 01233 713581.
