Black 2:1 Heat Shrink, 4.8mm x 10m - HS2-4.8-10B
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 14 | £7.00 | £8.40 |
| 15 - 49 | £6.00 | £7.20 |
| 50 + | £5.25 | £6.30 |
Product Specification
| Supplied Internal Diameter | 4.8mm |
| Recovered Internal Diameter | 2.4mm |
| Colour | Black |
| Length | 10m |
| Wall Thickness After Recovery | 0.56mm (±0.10) |
| Temperature Range | -55°C to +125°C |
Frequently Bought Together
Total Price: £0.00
Black 2:1 Heat Shrink Sleeve – 4.8mm x 10m | Polyolefin
Developed for clean cable finishing, this 4.8mm cable protection sleeve is supplied in black Polyolefin and sized to recover around smaller or larger wire groups as required.
The recovered diameter of 2.4mm helps create a closer fit around compatible cable sizes and reduces the risk of a loose protective sleeve after installation.
What Are Heat Shrink Sleeves?
Cable heat shrink is a simple sleeving product used to finish and protect wiring. The 2:1 ratio means the sleeve recovers to around half its supplied internal diameter when correctly heated.
Common Applications
- Grouping wires in OEM harness production
- Protecting conductors on production benches
- Improving cable organisation inside control cabinets
- Supporting repeat electrical assembly tasks

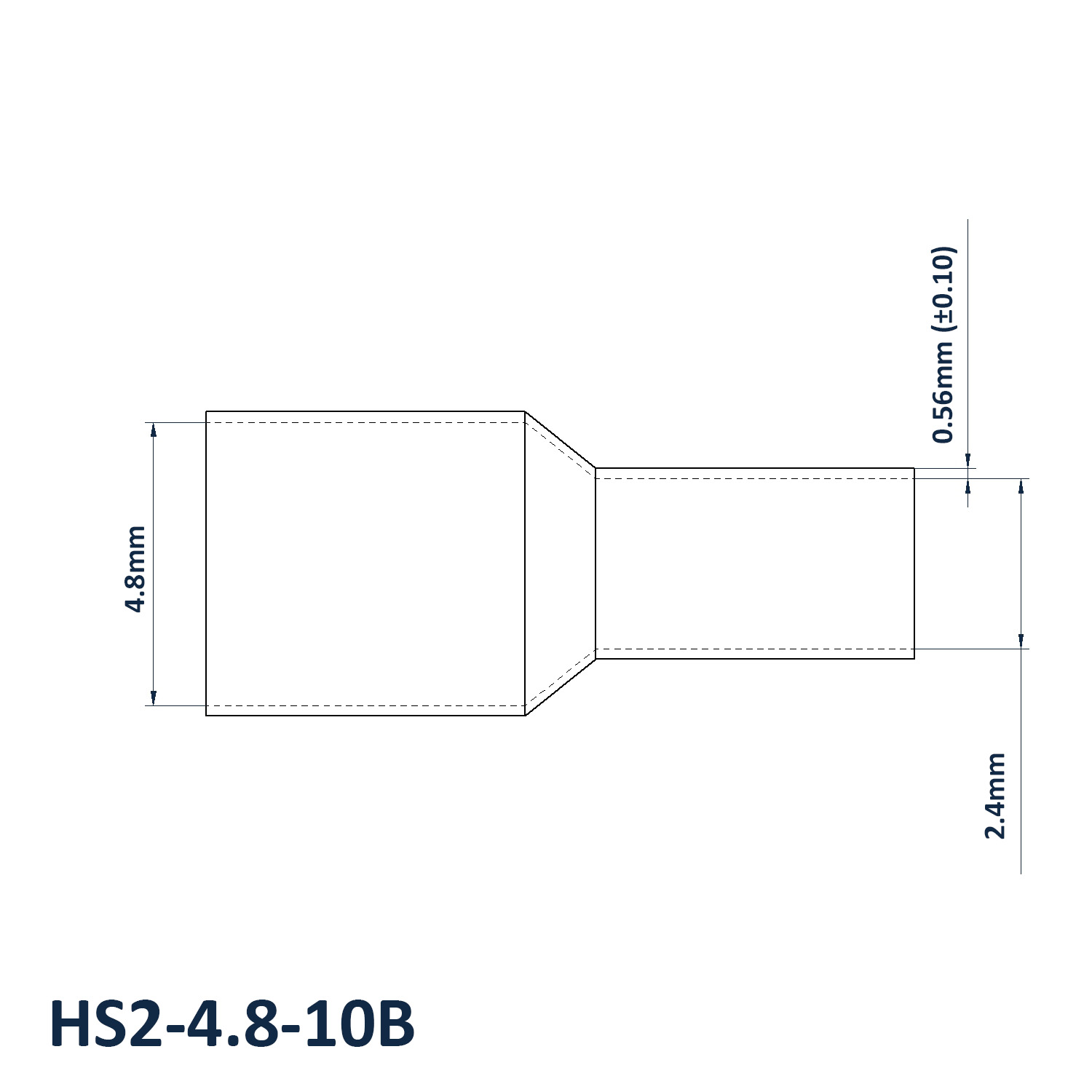

4.8mm x 10m Black Heat Shrink Sleeve Dimensions
- Supplied Internal Diameter: 4.8mm
- Recovered Internal Diameter: 2.4mm
- Colour: Black
- Length: 10m
- Wall Thickness After Recovery: 0.56mm (±0.10)
- Temperature Range: -55°C to +125°C
- Material: Polyolefin
- Shrink Ratio: 2:1
Installation Guidance
Use suitable heat control during fitting so the sleeve recovers cleanly without damaging the cable insulation beneath it.
Related Heat Shrink Products
We also offer Adhesive Lined Heatshrink for sealed cable joints and Heat Shrink Caps for closing off cable ends where a sleeve is not the best option.
View our full Heat Shrink Sleeves range.
Product Support and Trade Orders
If you are unsure whether a standard sleeve, adhesive lined heatshrink or heat shrink cap is the best option, call 01233 713581 and our team can help you choose the right range.
