30mm Round Metal Threaded Tube Insert (M10 Thread) - 1mm Wall | Black Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £15.09 | £18.11 |
| 50 - 99 | £14.79 | £17.75 |
| 100 + | £14.49 | £17.39 |
£18.11 / each
Product Specification
| Outside Diameter | 30.0mm |
| Wall Thickness | 1.0mm |
| Thread Size | M10 |
| Colour | Black |
| Material | Nylon |
| Head Height | 6mm |
| Insert Length | 29mm |
| Thread Material | Stainless Steel |
Frequently Bought Together
Total Price: £0.00
30.0mm Heavy Duty Round Threaded Tube Insert (M10 Thread) - 1.0mm Wall | Nylon
Where commercial displays and fabricated tube frames requires a threaded tube-end connection, this 30.0mm heavy duty round threaded tube insert provides a central M10 thread within compatible tubing. The insert is specified for 1.0mm wall thickness and supports threaded furniture fittings without adding an external bracket.
What Are Heavy Duty Round Threaded Tube Inserts?
Heavy duty round threaded tube inserts use a reinforced Nylon body to provide a robust threaded connection inside round tubing. The ribbed outer profile helps retain the insert within the tube while the internal metric thread supports adjustable feet, castors and other load-bearing accessories.
Common Applications
- Production Equipment: Provides a durable connection for mobile or levelling components on line-side frames.
- Heavy Furniture: Supports robust adjustable feet and castors on commercial tables and workstations.
- Machinery Frames: Provides a secure mounting point for feet, castors and other threaded accessories.
- Engineering Fabrication: Adds a reinforced threaded tube end without additional welding or machining.

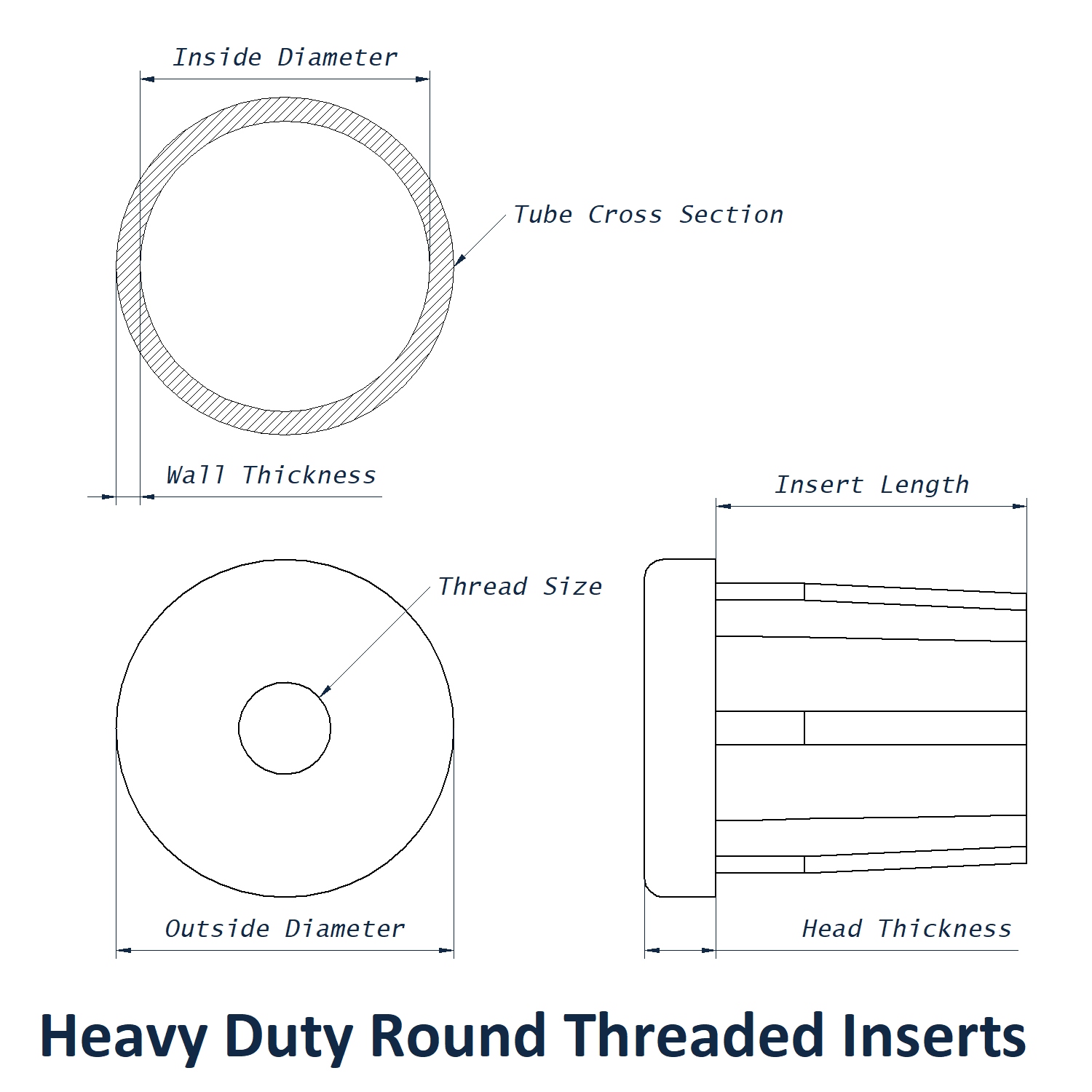

30.0mm M10 Heavy Duty Round Threaded Tube Insert Dimensions
- Outside Diameter: 30.0mm
- Wall Thickness: 1.0mm
- Thread Size: M10
- Colour: Black
- Material: Nylon
Key Benefits
- The Black finish matches the supplied product variant.
- Suitable for tubular furniture, equipment and fabricated round-frame assemblies.
- 1.0mm wall thickness specification helps match the insert to the intended tube.
- Threaded connection supports removable or adjustable feet, castors and fixings.
Review the full threaded tube insert selection for other round tube sizes and thread options. Technical support with sizing and application suitability is available on 01233 713581.
