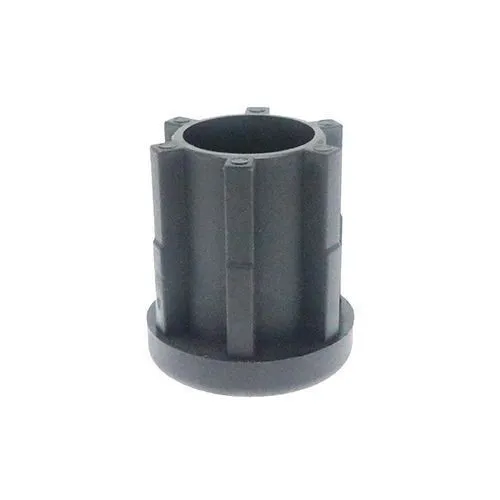

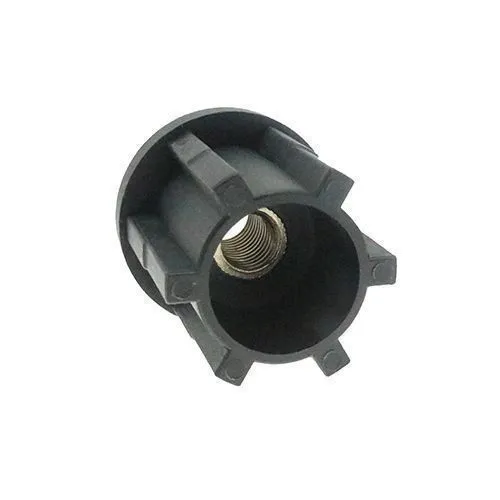

42mm Round Metal Threaded Tube Insert (M16 Thread) - 1.5mm Wall | Black Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £18.03 | £21.64 |
| 50 - 99 | £14.43 | £17.32 |
| 100 + | £12.03 | £14.43 |
£21.64 / each
Product Specification
| Outside Diameter | 42.0mm |
| Wall Thickness | 1.5mm |
| Thread Size | M16 |
| Colour | Black |
| Material | Nylon |
| Head Height | 8mm |
| Insert Length | 34mm |
| Thread Material | Stainless Steel |
Frequently Bought Together
Total Price: £0.00
42.0mm Heavy Duty Round Threaded Tube Insert (M16 Thread) - 1.5mm Wall | Nylon
Developed for machinery bases and substantial tubular structures, this 42.0mm threaded tube insert uses a M16 internal thread and is matched to a 1.5mm tube wall. The push-in design simplifies the addition of substantial threaded fittings to tubular furniture, machinery and fabricated frames.
What Are Heavy Duty Round Threaded Tube Inserts?
Heavy duty round inserts are intended for tubular structures that need a more substantial threaded mounting point. Once pressed into the tube, the Nylon body grips the internal wall and provides a secure central thread for levelling feet, castors or other metric fixings.
Common Applications
- Production Equipment: Provides a durable connection for mobile or levelling components on line-side frames.
- Heavy Furniture: Supports robust adjustable feet and castors on commercial tables and workstations.
- Machinery Frames: Provides a secure mounting point for feet, castors and other threaded accessories.
- Engineering Fabrication: Adds a reinforced threaded tube end without additional welding or machining.

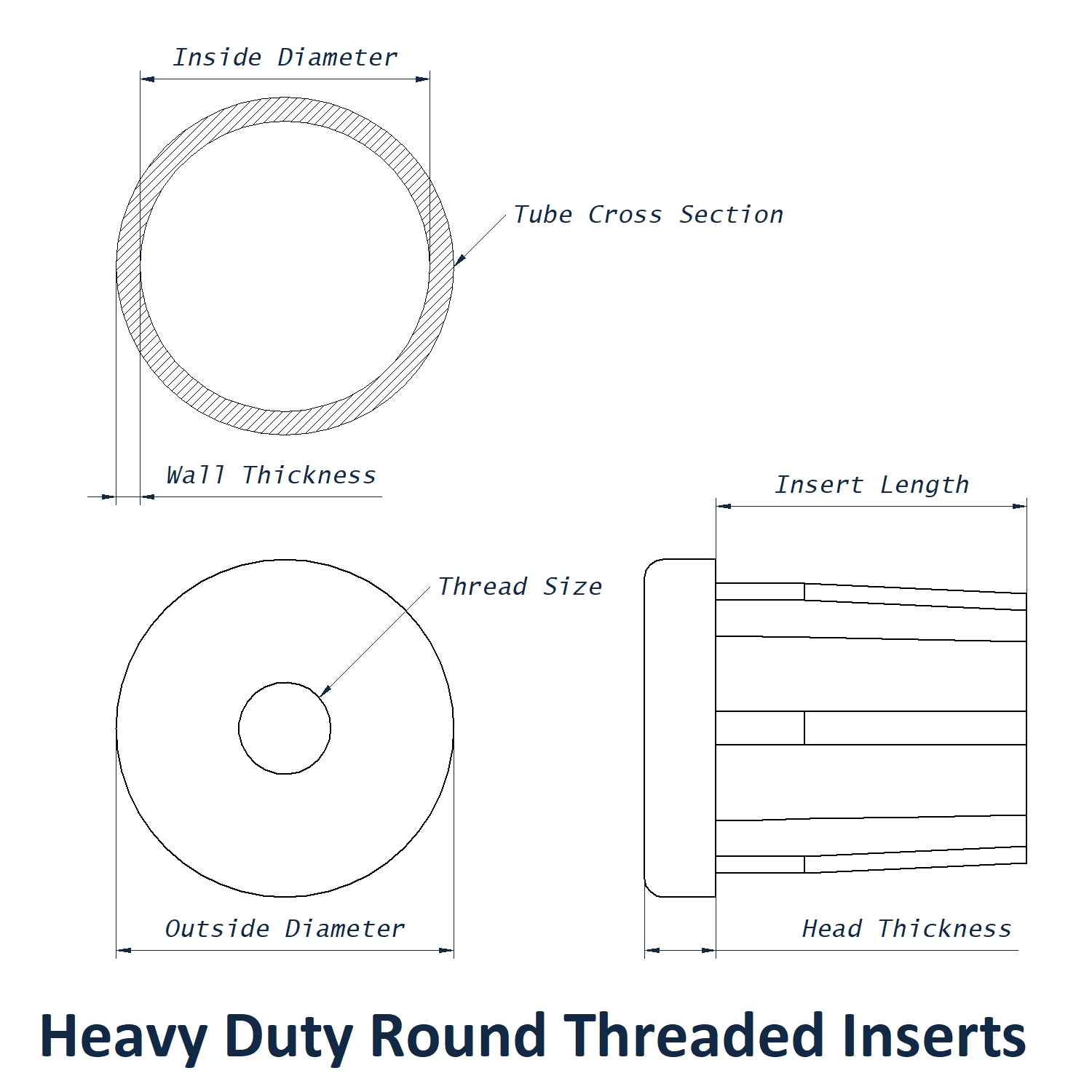

42.0mm M16 Heavy Duty Round Threaded Tube Insert Dimensions
- Outside Diameter: 42.0mm
- Wall Thickness: 1.5mm
- Thread Size: M16
- Colour: Black
- Material: Nylon
Key Benefits
- Nylon construction matches the uploaded product specification.
- Threaded connection supports removable or adjustable feet, castors and fixings.
- Creates a neat threaded mounting point while closing the open tube end.
- 42.0mm outside diameter provides a clear tube size for compatibility checks.
Review the full threaded tube insert selection for other round tube sizes and thread options. Technical support with sizing and application suitability is available on 01233 713581.
