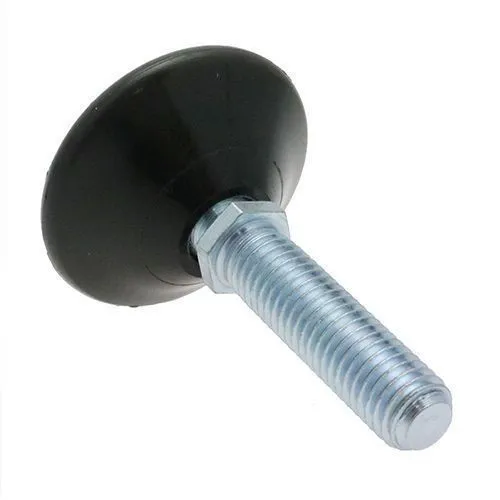

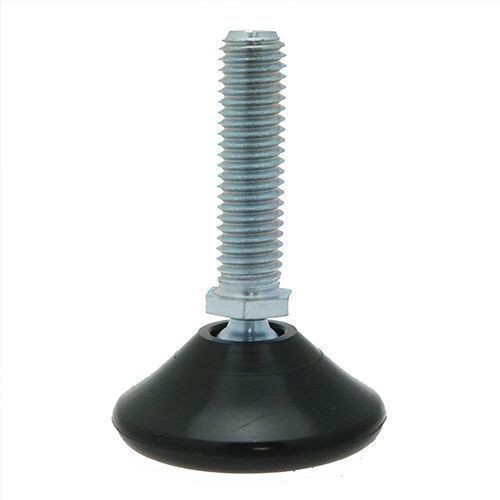

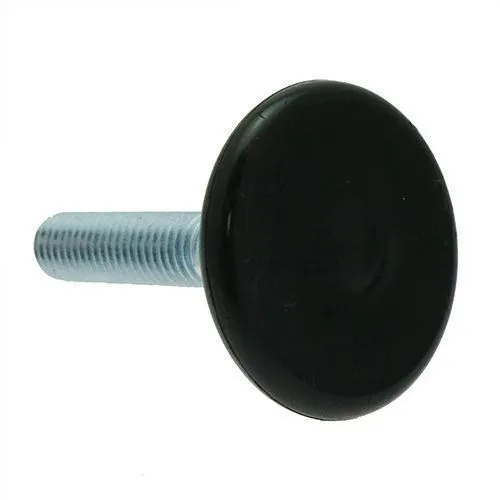

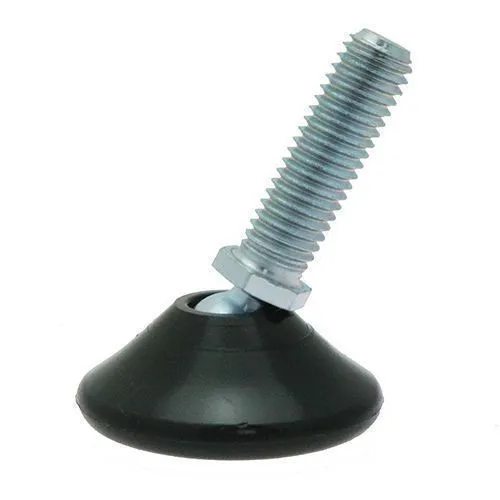

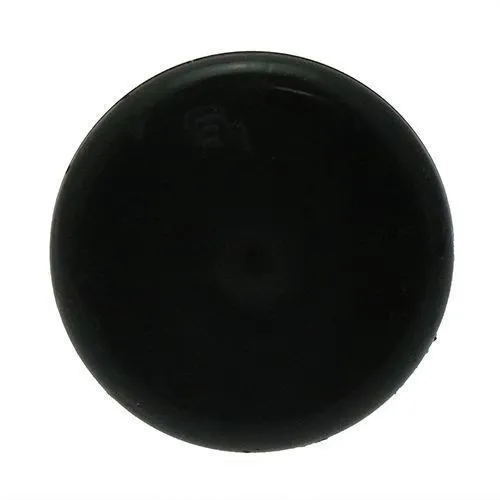

M10 x 75mm Heavy Duty (Tilting) Feet (100kg Weight Rated) 40mm Base
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.63 | £1.96 |
| 100 - 249 | £1.51 | £1.81 |
| 250 - 499 | £1.38 | £1.66 |
| 500 - 999 | £1.27 | £1.53 |
| 1000 - 4999 | £1.18 | £1.41 |
| 5000 + | £1.07 | £1.29 |
Product Specification
| Thread Size | M10 |
| Base Diameter | 40.0mm |
| Base Height | 20mm |
| Weight Rating | 100kg |
| Tilt Angle | 20º |
| Colour | Black |
| Material | Steel Stud & Polyamide |
| Thread Length | 75.0mm |
Frequently Bought Together
Total Price: £0.00
M10 x 75mm Heavy Duty Tilting Foot | 100kg Weight Rated | 40mm Base Diameter | Steel Stud & Polyamide
Designed around a M10 steel stud and 75mm thread length, these Heavy Duty Tilting Feet suit commercial display stands where retail equipment where height adjustment improves presentation.
The load rated design supports better component selection for engineered assemblies, especially where several feet share the weight of one structure. Its articulated movement gives the foot more flexibility than rigid supports, making it useful for varied workshop flooring.
Common Applications
- Laboratory test rigs where stable support protects repeatability
- Measurement benches that need fine height correction
- Prototype frames adjusted during setup
- Cleanroom furniture requiring controlled levelling

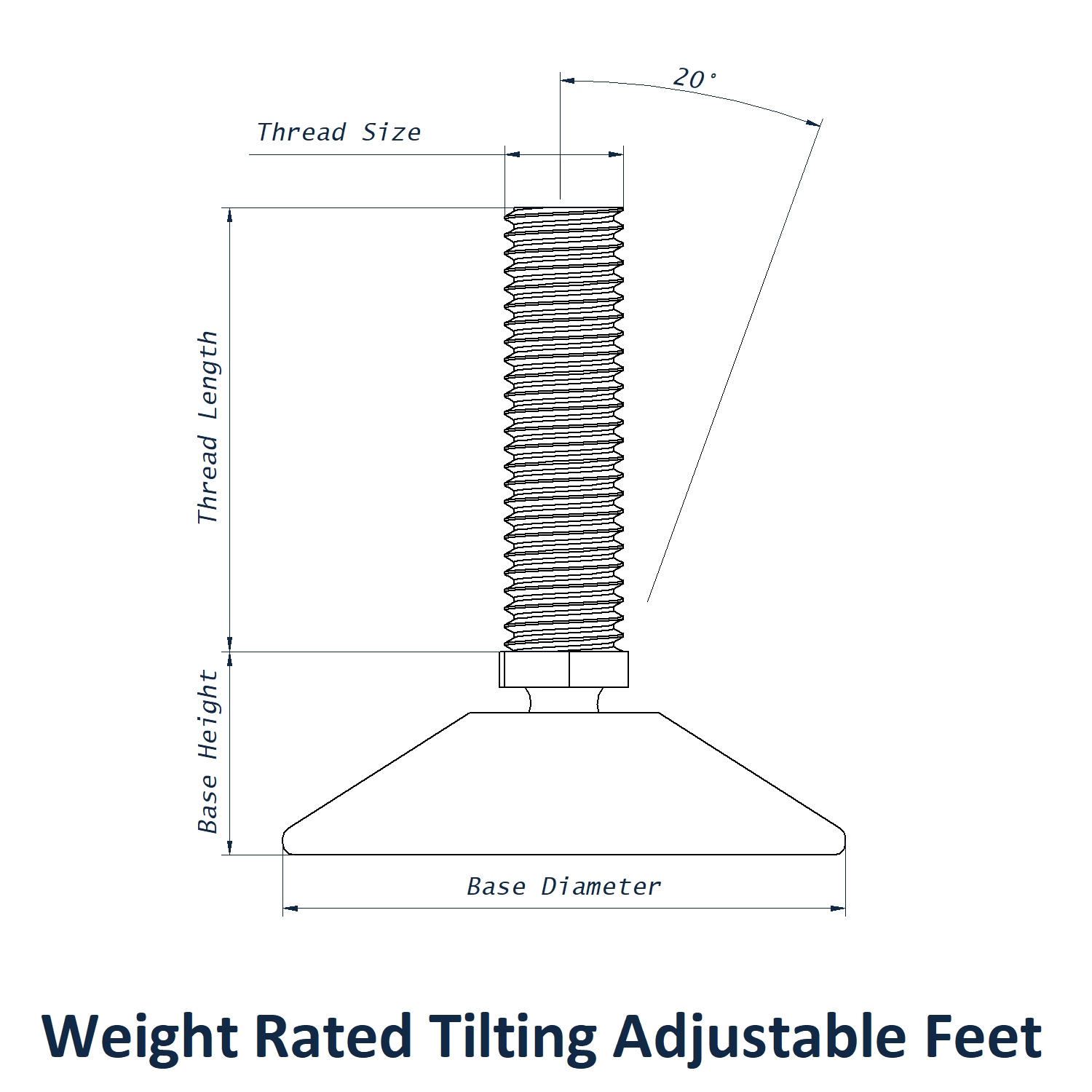

M10 x 75mm Heavy Duty Tilting Foot Dimensions
- Base Diameter: 40mm
- Thread Size: M10
- Thread Length: 75mm
- Base Height: 20mm
- Tilt Angle: 20º
- Weight Rating: 100kg
- Colour: Black
- Material: Steel Stud & Polyamide
Commonly Paired with Articulated Feet - E Nuts for a secure fit
Perfect for tilting or articulated adjustable feet, E Nuts use a self-locking design to help prevent loosening and increase grip in soft woods. They are ideal for regular adjustments and secure fixing.
Click here to view our full range of E Nuts.
View our full Heavy Duty Tilting Feet range for more heavy duty levelling feet, tilting adjustable feet and load rated support options.
