Saddle Tube Connectors - TC073
Product code:
TC073
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 1 | £0.71 | £0.85 |
| 2 - 99 | £0.71 | £0.85 |
| 100 - 249 | £0.59 | £0.71 |
| 250 - 499 | £0.49 | £0.59 |
| 500 - 999 | £0.42 | £0.50 |
| 1000 + | £0.34 | £0.41 |
£0.85
/ each
Quantity:

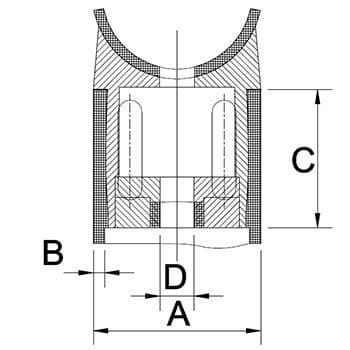

Product Specification
| Internal Length | 20mm |
| Material | Nylon |
| Outside Diameter | 18mm |
| Thread Size | M6 |
| Wall Thickness | 1mm |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

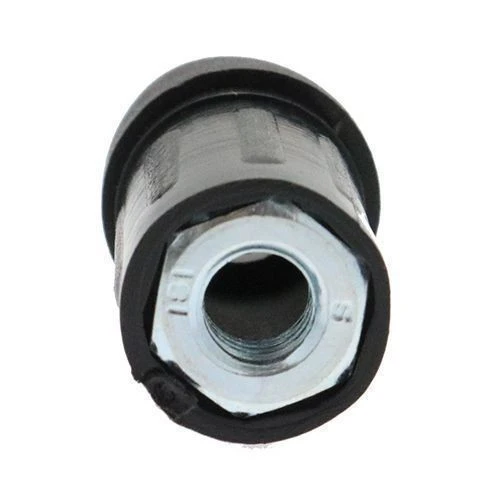

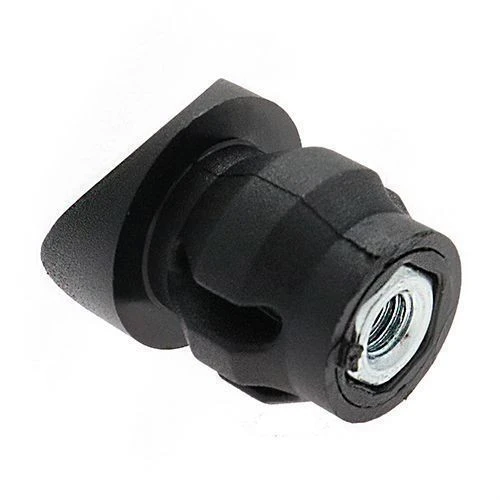

This saddle tube connector has an outside diameter of 18mm and a wall thickness of 1mm. It has an internal length of 20mm and a M6 thread size. It is available in a black coloured Nylon.
These round tube connectors are designed for use with round tubes and feature a t joint connection method. Made from a high-quality combination of Nylon 6/6 and Zinc Plated Steel Nut, these connectors come with expanding ribs and a threaded nut insert to fit a range of wall thicknesses and tube diameters. They are suitable for use in various tube assembly applications, but internal section tolerance and lubrication should be considered.
The round frame connectors are available in different tube diameters and wall thicknesses, including double-ended connectors for pairing. Common uses include supporting a t-section in a round tubular frame and extending or adding functionality to a round tube.
These round tube connectors are designed for use with round tubes and feature a t joint connection method. Made from a high-quality combination of Nylon 6/6 and Zinc Plated Steel Nut, these connectors come with expanding ribs and a threaded nut insert to fit a range of wall thicknesses and tube diameters. They are suitable for use in various tube assembly applications, but internal section tolerance and lubrication should be considered.
The round frame connectors are available in different tube diameters and wall thicknesses, including double-ended connectors for pairing. Common uses include supporting a t-section in a round tubular frame and extending or adding functionality to a round tube.
