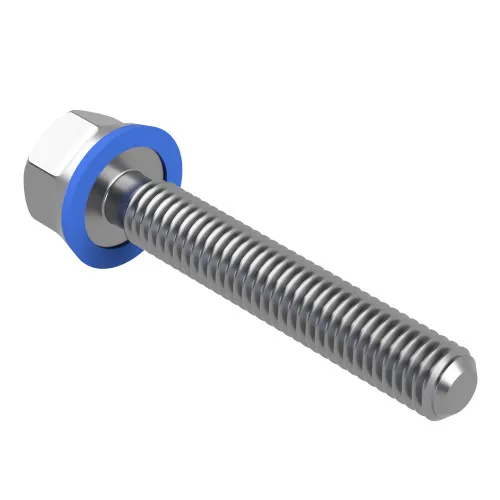

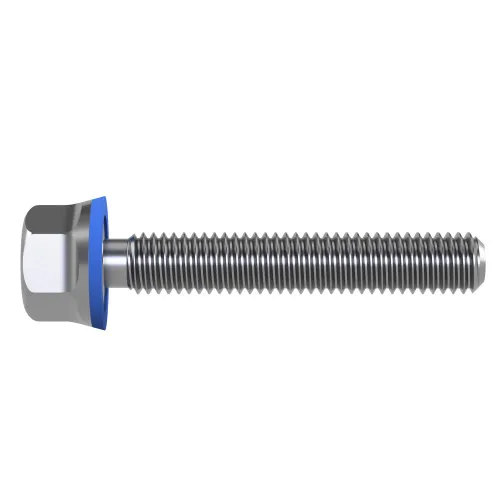

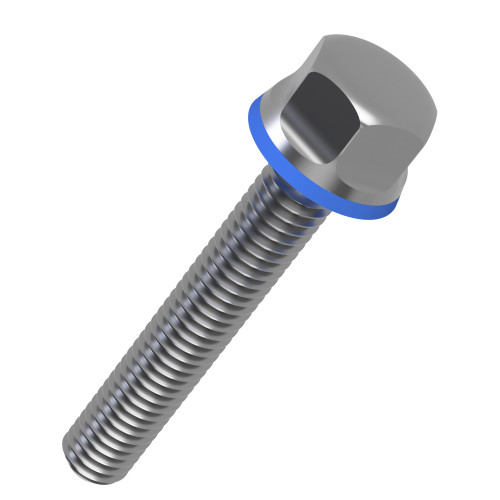

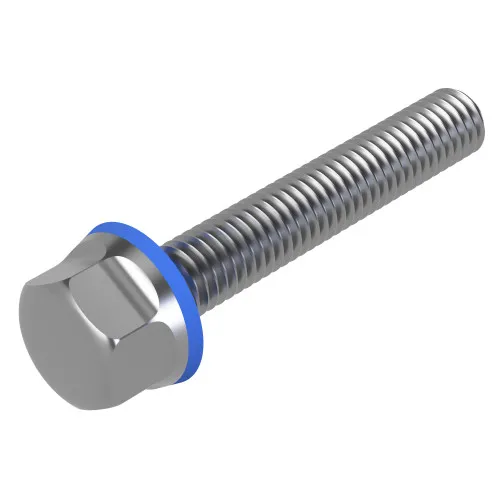

M10 x 20mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - NBR Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £16.69 | £20.03 |
| 25 - 49 | £13.91 | £16.69 |
| 50 - 99 | £11.12 | £13.35 |
| 100 - 499 | £9.73 | £11.68 |
| 500 + | £9.35 | £11.22 |
£20.03 / each
Product Specification
| Size | M10 |
| Length | 20mm |
| Pitch | 1.50mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | NBR |
| Across Flats | 16mm |
| Head Height | 12.0mm |
| Flange Diameter | 21.11mm |
Frequently Bought Together
250mm Metal Detectable Cable Ties (68mm Max Bundle) - 4.5mm Wide - 20kg Tensile Strength | 100pk
Total Price: £0.00
M10 x 20mm Hygienic Hex Head Screw | A4 Stainless Steel | NBR Seal
This M10 x 20mm Hygienic Hex Head Screw is designed for sanitary equipment builds where corrosion resistance, a defined metric thread and a smooth sealed head are all required. With a 1.50mm pitch, 16mm across flats and A4 Stainless Steel construction, it suits beverage filling systems where a sealed head helps reduce exposed recesses around assembly points.
A4 stainless steel gives this fixing the corrosion resistance expected for exposed stainless equipment. The NBR seal supports dependable seating against prepared surfaces and is commonly chosen for equipment exposed to light oils or regular handling. The 20mm length is suited to enclosures near product contact zones, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Pharmaceutical production equipment
- Packaging machine inspection panels
- Production line cover plates
- Industrial cleaning station equipment

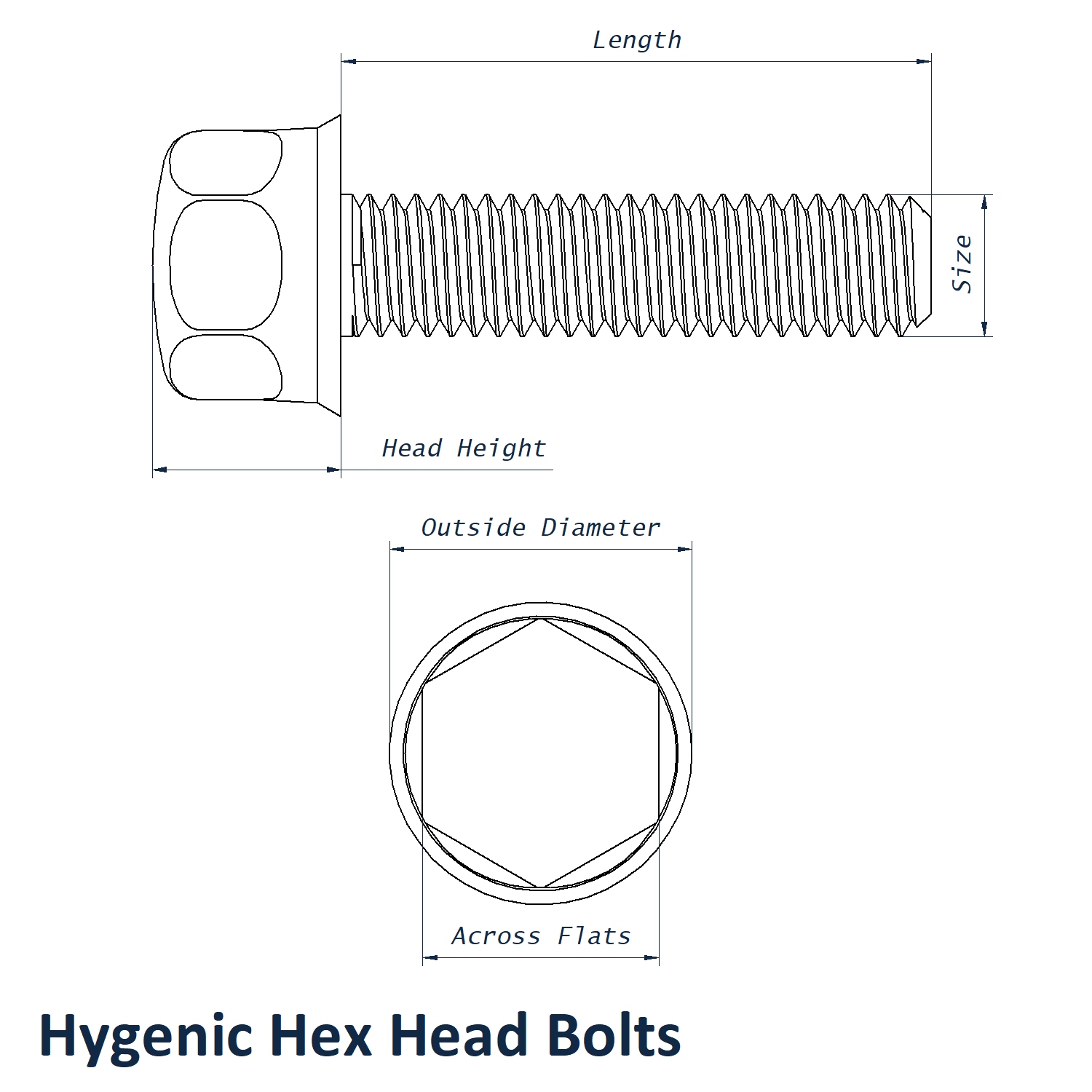

M10 x 20mm Hygienic Hex Head Screw Dimensions
- Size: M10
- Length: 20mm
- Pitch: 1.50mm
- Across Flats: 16mm
- Head Height: 12mm
- Flange Diameter: 21.11mm
- Bolt Material: A4 Stainless Steel
- Seal Material: NBR
Compatible Hygienic Nuts
To cover exposed male threads and complete a more sanitary fixing, consider Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
Explore our full Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
