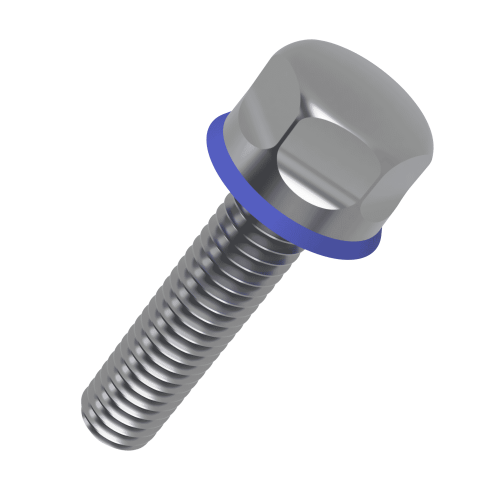

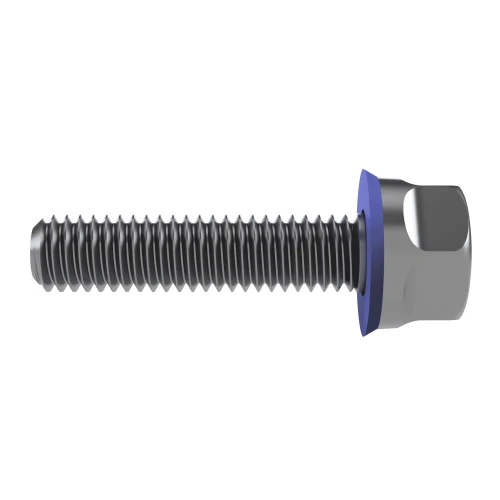

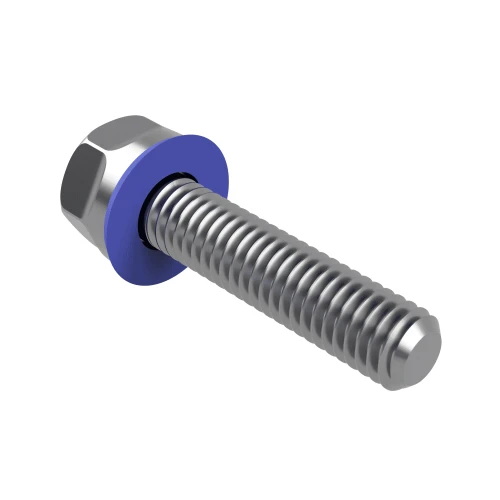

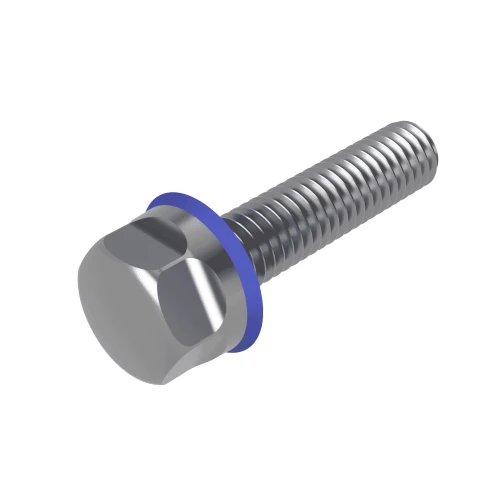

M10 x 25mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - EPDM Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £18.10 | £21.72 |
| 25 - 49 | £15.08 | £18.10 |
| 50 - 99 | £12.07 | £14.48 |
| 100 - 499 | £10.56 | £12.67 |
| 500 + | £10.13 | £12.16 |
Product Specification
| Size | M10 |
| Length | 25mm |
| Pitch | 1.50mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | EPDM |
| Across Flats | 16mm |
| Head Height | 12.0mm |
| Flange Diameter | 21.11mm |
Frequently Bought Together
Total Price: £0.00
M10 x 25mm Hygienic Hex Head Screw | A4 Stainless Steel | EPDM Seal
This M10 x 25mm Hygienic Hex Head Screw gives fabricators a dependable hygienic fixing for machine frames, enclosures and access panels that need a neat stainless finish. With a 1.50mm pitch, 16mm across flats and A4 Stainless Steel construction, it suits medical equipment manufacture where tidy fastener finishes support a cleaner equipment appearance.
The 1.50mm pitch and 16mm across flats dimension make this a practical replacement or production fastener where controlled metric sizing is required. The EPDM seal is a strong option for washdown areas, outdoor exposure and cleaning routines where resistance to water and weathering is important. The 25mm length is suited to stainless housings and service panels, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Cleanroom furniture and access covers
- Hygiene-sensitive machine maintenance
- Chemical washdown service areas
- Washdown conveyor assemblies

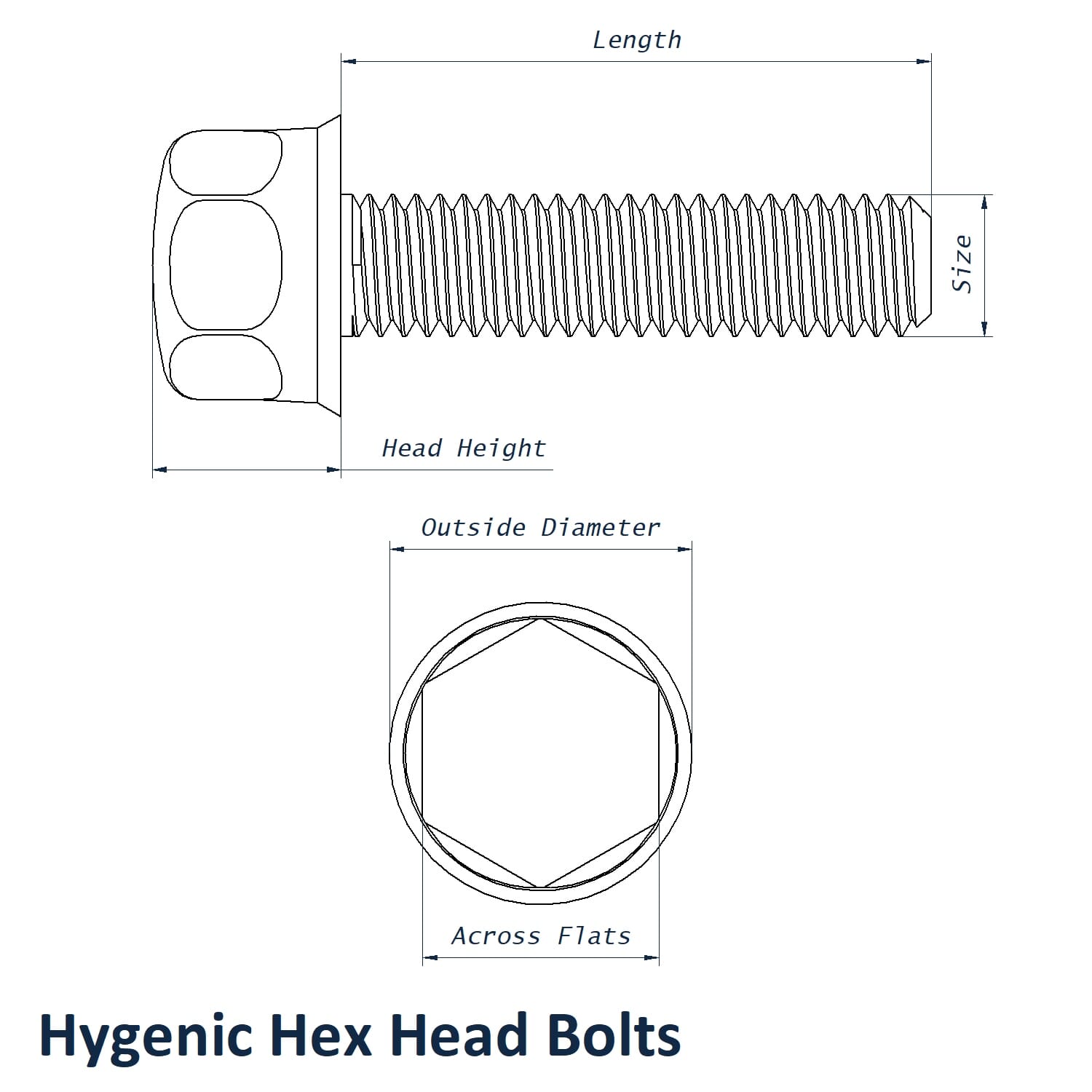

M10 x 25mm Hygienic Hex Head Screw Dimensions
- Size: M10
- Length: 25mm
- Pitch: 1.50mm
- Across Flats: 16mm
- Head Height: 12mm
- Flange Diameter: 21.11mm
- Bolt Material: A4 Stainless Steel
- Seal Material: EPDM
Compatible Hygienic Nuts
When a smooth nut-side finish is needed for guards, covers or machine frames, choose Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
View our full Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
