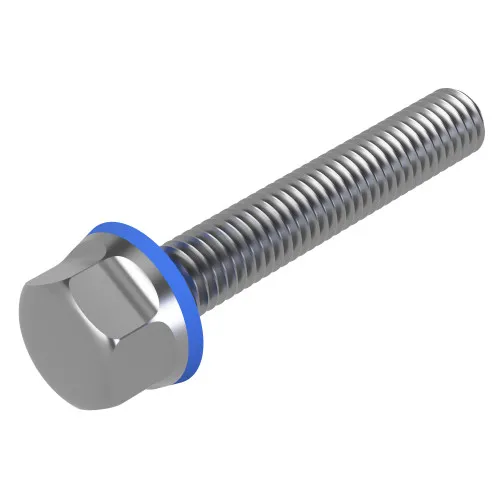

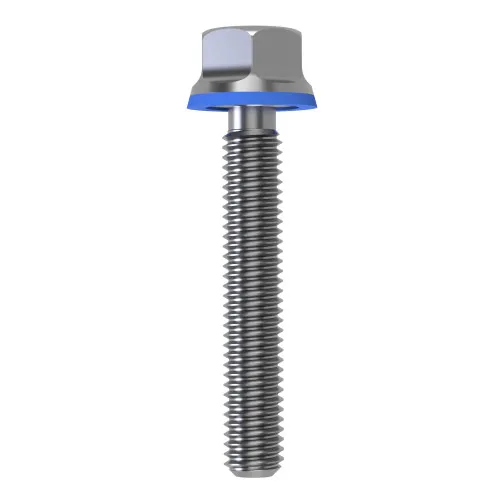

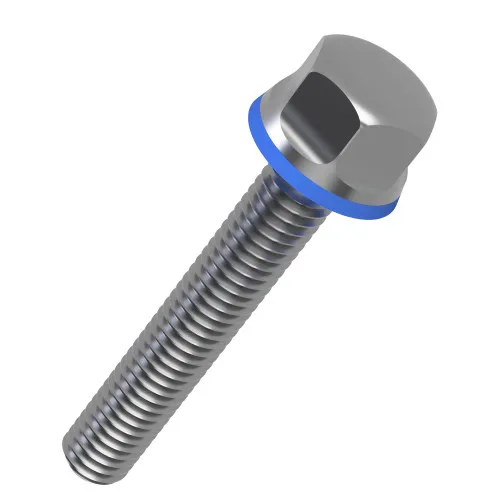

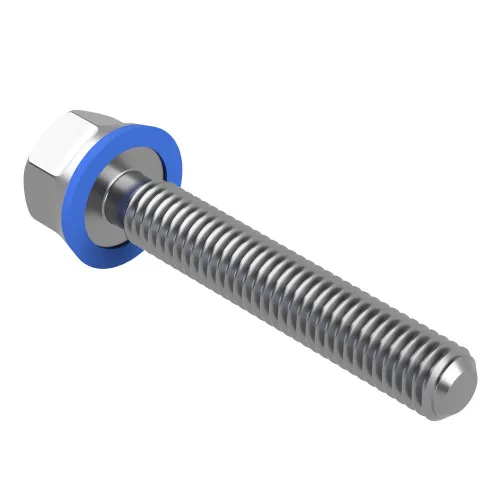

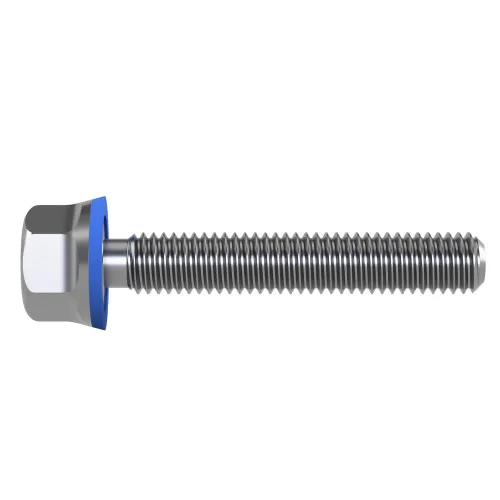

M10 x 50mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - EPDM Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £25.19 | £30.23 |
| 25 - 49 | £20.99 | £25.19 |
| 50 - 99 | £16.80 | £20.16 |
| 100 - 499 | £14.70 | £17.64 |
| 500 + | £14.11 | £16.93 |
£30.23 / each
Product Specification
| Size | M10 |
| Length | 50mm |
| Pitch | 1.50mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | EPDM |
| Across Flats | 16mm |
| Head Height | 12.0mm |
| Flange Diameter | 21.11mm |
Frequently Bought Together
250mm Metal Detectable Cable Ties (68mm Max Bundle) - 4.5mm Wide - 20kg Tensile Strength | 100pk
Total Price: £0.00
M10 x 50mm Hygienic Hex Head Screw | A4 Stainless Steel | EPDM Seal
This M10 x 50mm Hygienic Hex Head Screw is made for hygiene-critical fastening where a sealed hex head helps protect the fixing point without leaving awkward recesses around the screw. With a 1.50mm pitch, 16mm across flats and A4 Stainless Steel construction, it suits meat processing equipment where robust sealed fixings suit frequent hygiene inspection.
The 1.50mm pitch and 16mm across flats dimension make this a practical replacement or production fastener where controlled metric sizing is required. The EPDM seal gives this hygienic screw a suitable profile for wet process areas and stainless assemblies that need dependable sealing under the head. The 50mm length is suited to machine covers and conveyor side panels, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Stainless steel fabrication projects
- Bottling plant enclosure fixings
- Food processing machinery panels
- Laboratory benches and cabinets
M10 x 50mm Hygienic Hex Head Screw Dimensions
- Size: M10
- Length: 50mm
- Pitch: 1.50mm
- Across Flats: 16mm
- Head Height: 12mm
- Flange Diameter: 21.11mm
- Bolt Material: A4 Stainless Steel
- Seal Material: EPDM
Compatible Hygienic Nuts
For assemblies where the exposed thread also needs a closed hygienic finish, pair these screws with Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
See the complete Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
