M10 x 50mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - NBR Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £24.68 | £29.62 |
| 25 - 49 | £20.57 | £24.69 |
| 50 - 99 | £16.46 | £19.75 |
| 100 - 499 | £14.40 | £17.28 |
| 500 + | £13.82 | £16.59 |
£29.62 / each
Product Specification
| Size | M10 |
| Length | 50mm |
| Pitch | 1.50mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | NBR |
| Across Flats | 16mm |
| Head Height | 12.0mm |
| Flange Diameter | 21.11mm |
Frequently Bought Together
Total Price: £0.00

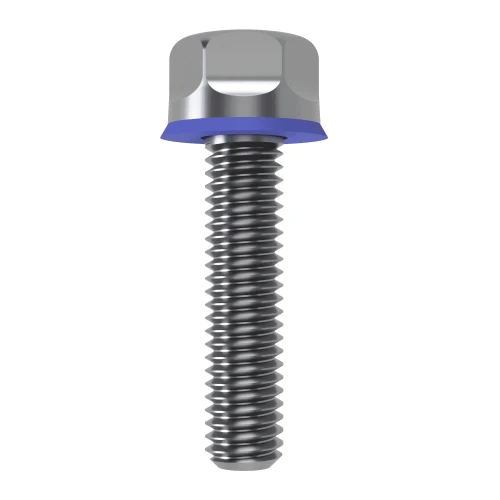

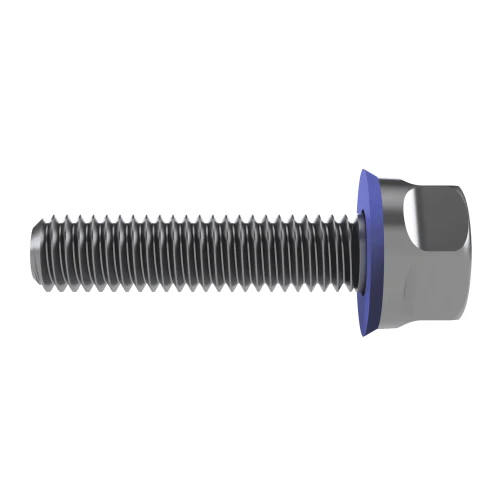

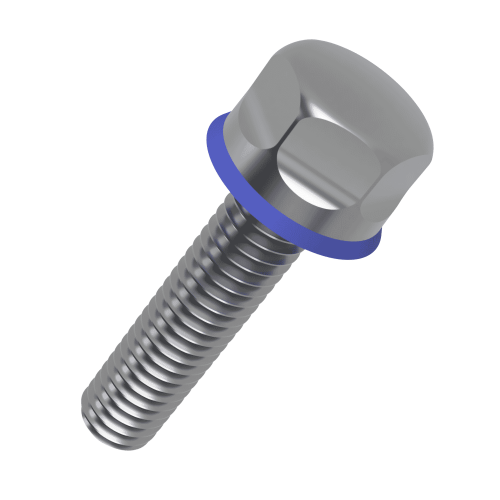

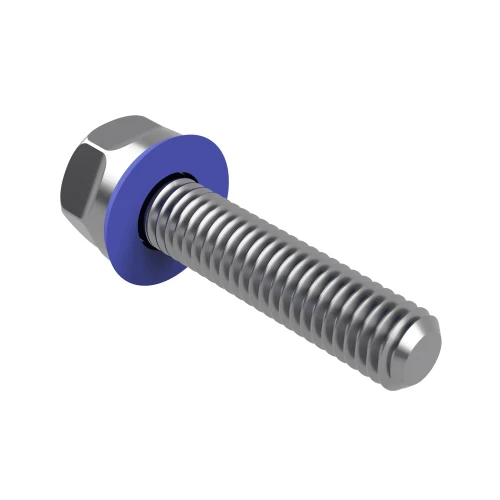

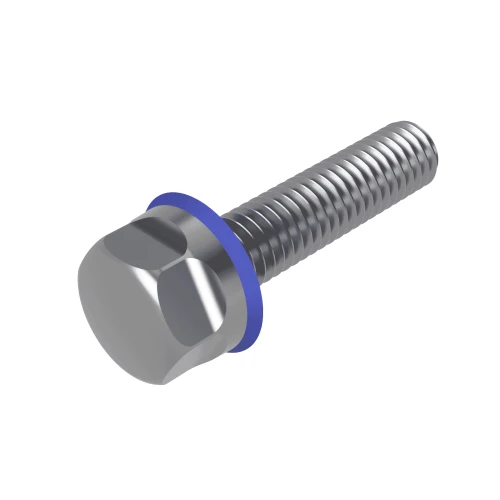

M10 x 50mm Hygienic Hex Head Screw | A4 Stainless Steel | NBR Seal
This M10 x 50mm Hygienic Hex Head Screw provides a clean fastening solution for stainless panels, machinery covers and guarded equipment used in demanding production environments. With a 1.50mm pitch, 16mm across flats and A4 Stainless Steel construction, it suits OEM hygienic assemblies where consistent dimensions make repeat installation easier across manufactured units.
The 12mm head height and 21.11mm flange diameter help identify fit within guarded panels and stainless housings. The NBR seal supports dependable seating against prepared surfaces and is commonly chosen for equipment exposed to light oils or regular handling. The 50mm length is suited to bespoke stainless frames and production enclosures, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Meat processing machinery guards
- Splash-zone frame assemblies
- Commercial catering equipment frames
- Medical equipment housings

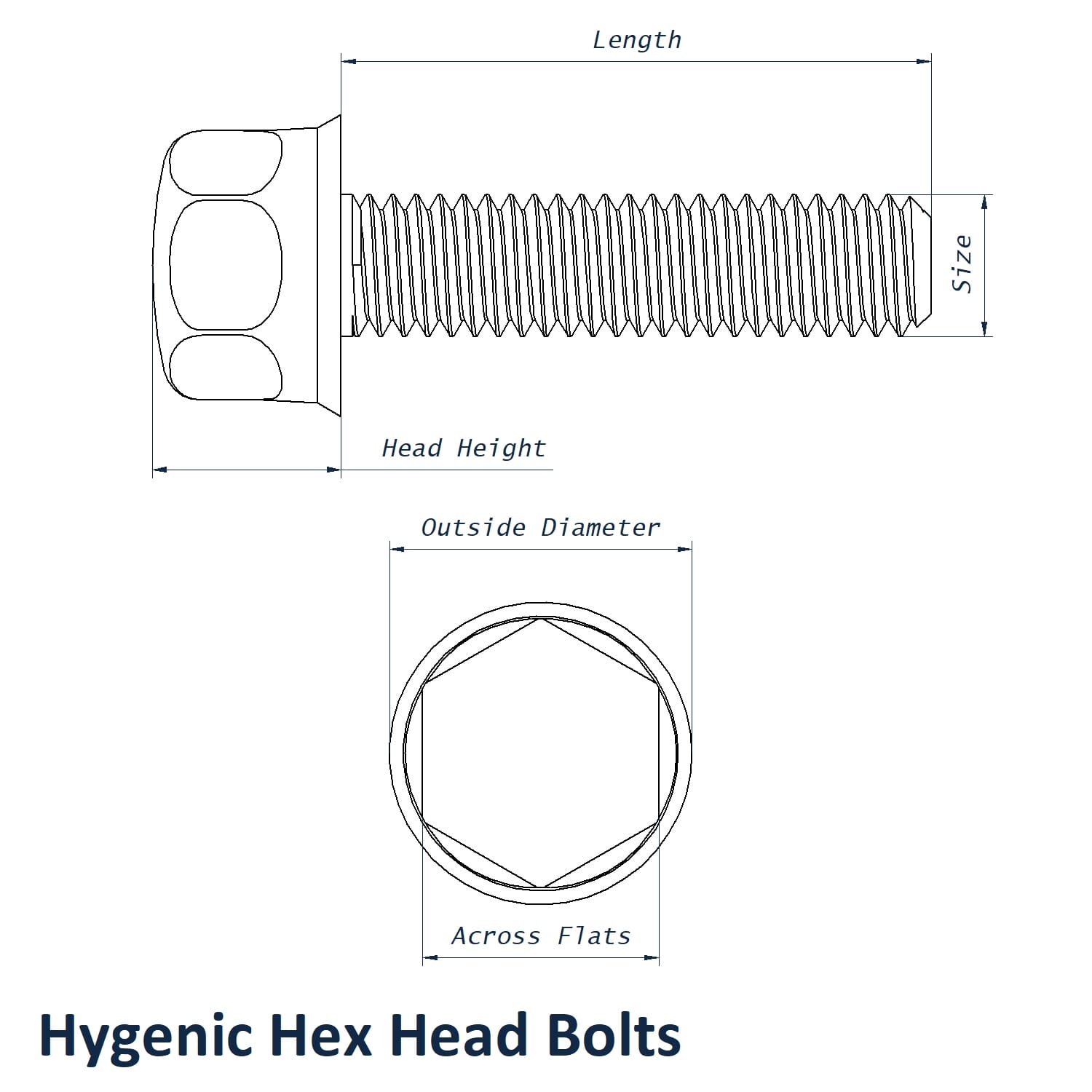

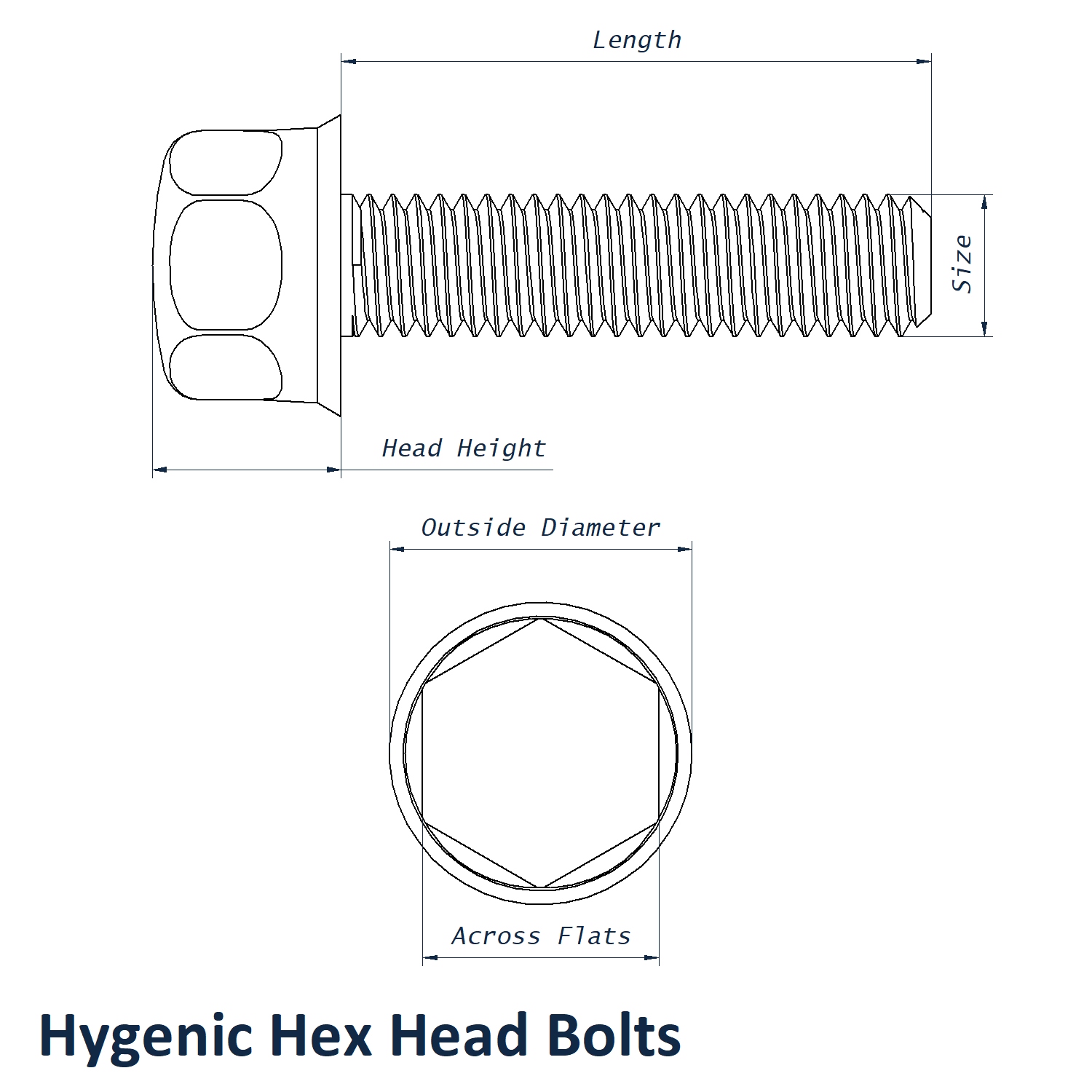

M10 x 50mm Hygienic Hex Head Screw Dimensions
- Size: M10
- Length: 50mm
- Pitch: 1.50mm
- Across Flats: 16mm
- Head Height: 12mm
- Flange Diameter: 21.11mm
- Bolt Material: A4 Stainless Steel
- Seal Material: NBR
Compatible Hygienic Nuts
Where a matching enclosed nut is required on the reverse side of the fixing, use Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
Explore our full Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
