M16 x 40mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - NBR Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £28.58 | £34.30 |
| 25 - 49 | £23.82 | £28.59 |
| 50 - 99 | £19.06 | £22.87 |
| 100 - 499 | £16.68 | £20.01 |
| 500 + | £16.01 | £19.21 |
Product Specification
| Size | M16 |
| Length | 40mm |
| Pitch | 2.00mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | NBR |
| Across Flats | 24mm |
| Head Height | 17.0mm |
| Flange Diameter | 31.89mm |
Frequently Bought Together
Total Price: £0.00

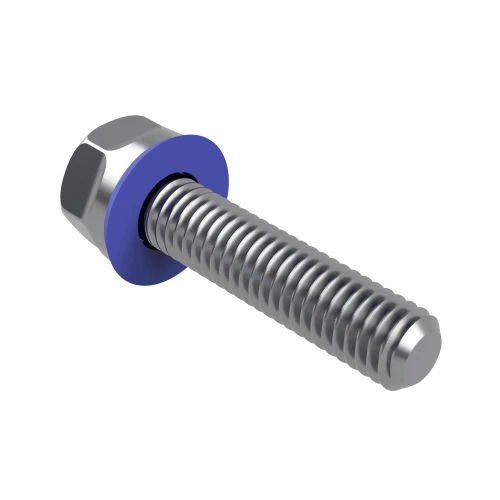

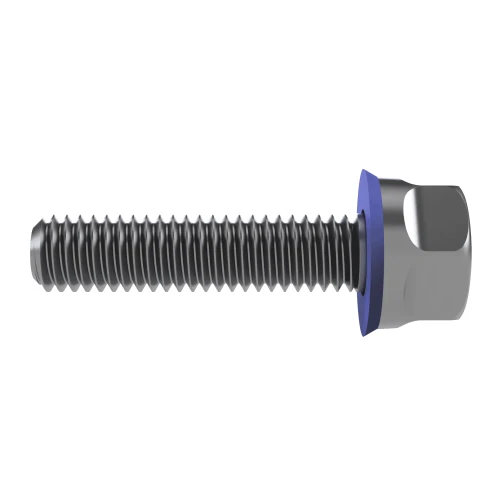

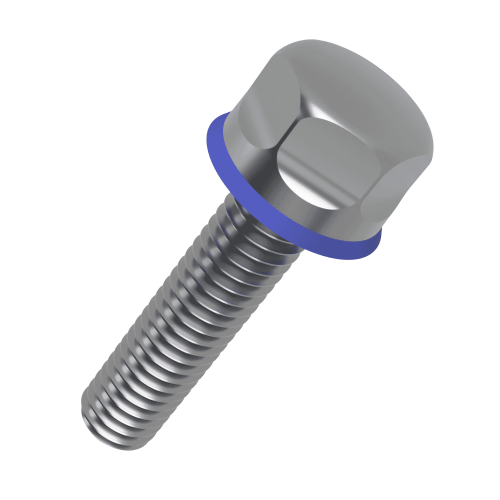

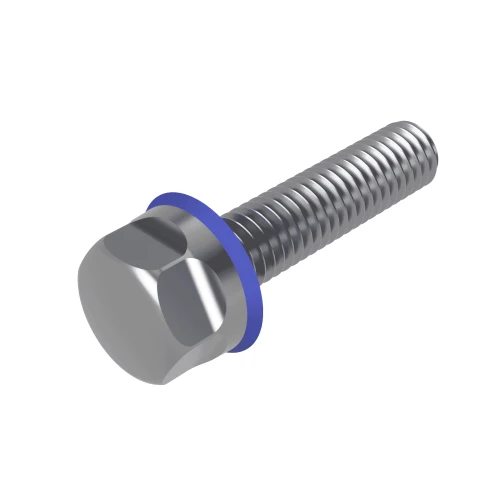

M16 x 40mm Hygienic Hex Head Screw | A4 Stainless Steel | NBR Seal
This M16 x 40mm Hygienic Hex Head Screw is made for hygiene-critical fastening where a sealed hex head helps protect the fixing point without leaving awkward recesses around the screw. With a 2.00mm pitch, 24mm across flats and A4 Stainless Steel construction, it suits medical equipment manufacture where tidy fastener finishes support a cleaner equipment appearance.
The 2.00mm pitch and 24mm across flats dimension make this a practical replacement or production fastener where controlled metric sizing is required. The NBR seal is well suited to general oil and grease exposure, making it practical for machinery near drive systems and service areas. The 40mm length is suited to stainless housings and service panels, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Chemical washdown service areas
- Washdown conveyor assemblies
- Cleanroom furniture and access covers
- Hygiene-sensitive machine maintenance

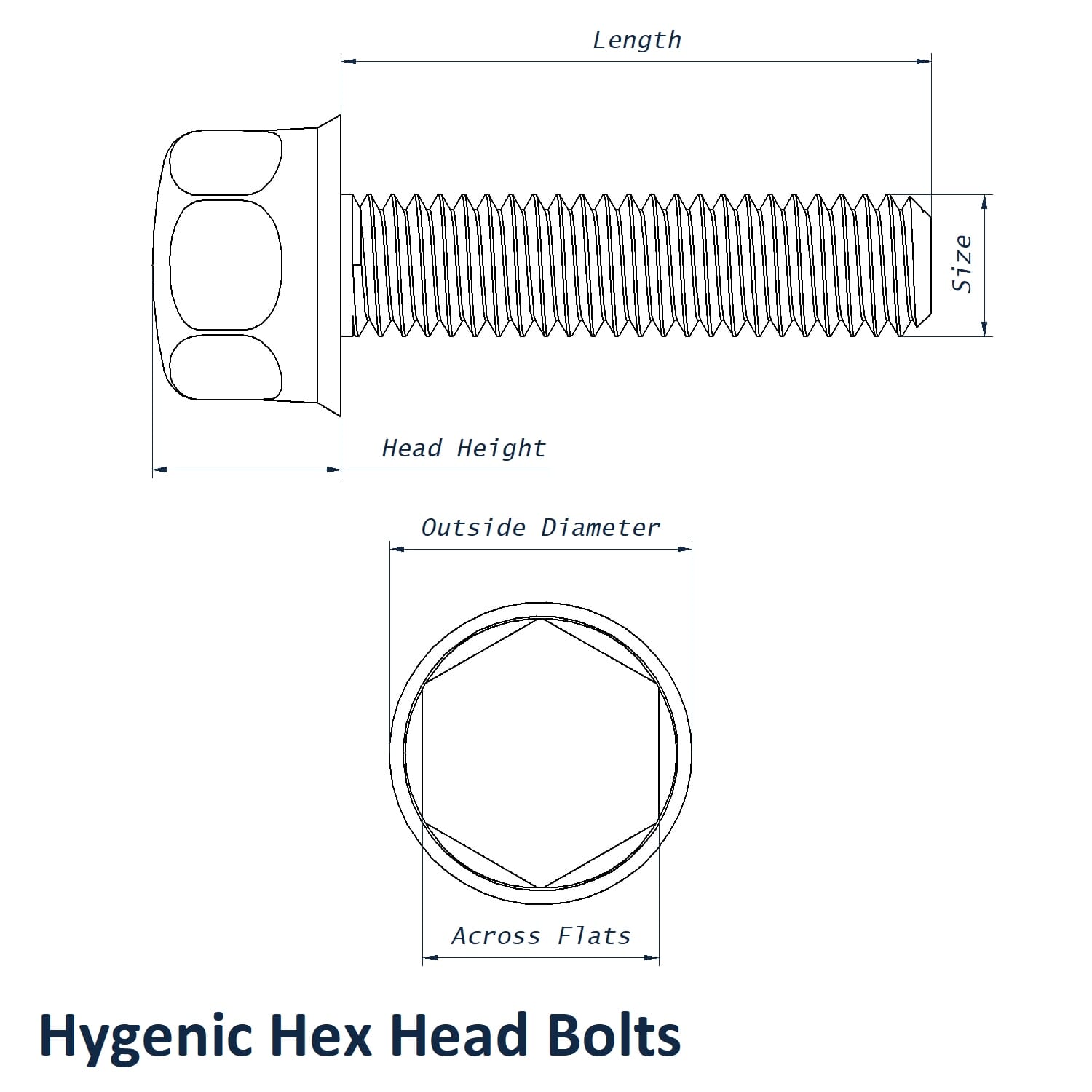

M16 x 40mm Hygienic Hex Head Screw Dimensions
- Size: M16
- Length: 40mm
- Pitch: 2.00mm
- Across Flats: 24mm
- Head Height: 17mm
- Flange Diameter: 31.89mm
- Bolt Material: A4 Stainless Steel
- Seal Material: NBR
Compatible Hygienic Nuts
For assemblies where the exposed thread also needs a closed hygienic finish, pair these screws with Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
View our full Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
