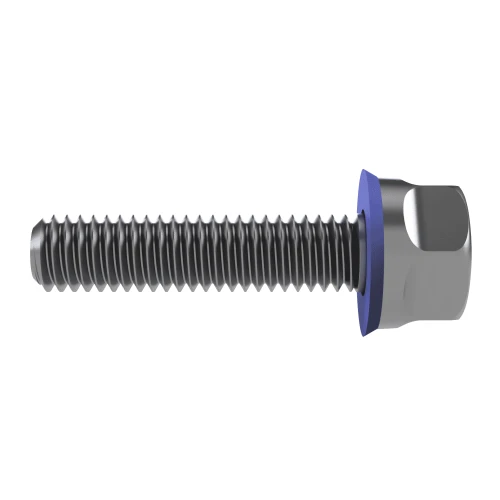

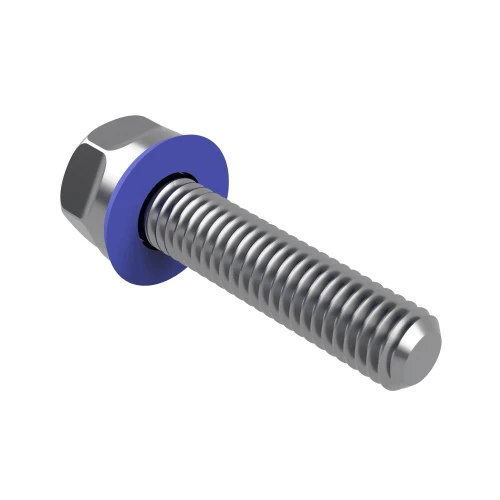

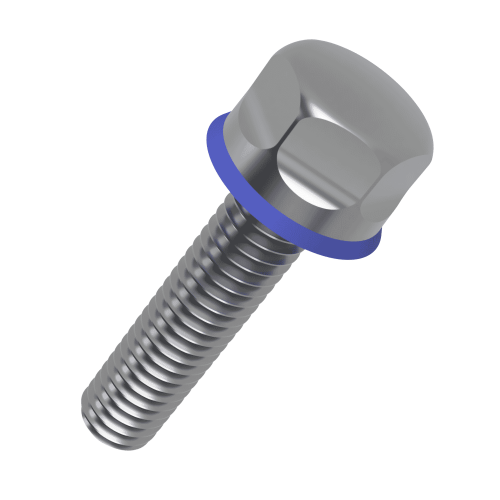

M24 x 40mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - NBR Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £50.08 | £60.09 |
| 25 - 49 | £41.73 | £50.08 |
| 50 - 99 | £33.38 | £40.06 |
| 100 - 499 | £29.21 | £35.05 |
| 500 + | £28.04 | £33.65 |
Product Specification
| Size | M24 |
| Length | 40mm |
| Pitch | 3.00mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | NBR |
| Across Flats | 36mm |
| Head Height | 22.0mm |
| Flange Diameter | 46.08mm |
Frequently Bought Together
Total Price: £0.00
M24 x 40mm Hygienic Hex Head Screw | A4 Stainless Steel | NBR Seal
This M24 x 40mm Hygienic Hex Head Screw supports reliable fastening in washdown equipment, food-safe machinery areas and stainless structures where the screw head remains visible. With a 3.00mm pitch, 36mm across flats and A4 Stainless Steel construction, it suits meat processing equipment where robust sealed fixings suit frequent hygiene inspection.
Its sealed underside is useful where routine wipe-downs, inspection and contamination control are part of the equipment design. With an NBR sealing element, this screw is a practical choice for general industrial hygiene applications where durability and sealing performance both matter. The 40mm length is suited to machine covers and conveyor side panels, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Marine grade stainless equipment
- OEM sanitary equipment builds
- Hygienic door and hatch fixings
- Dairy and beverage line guards

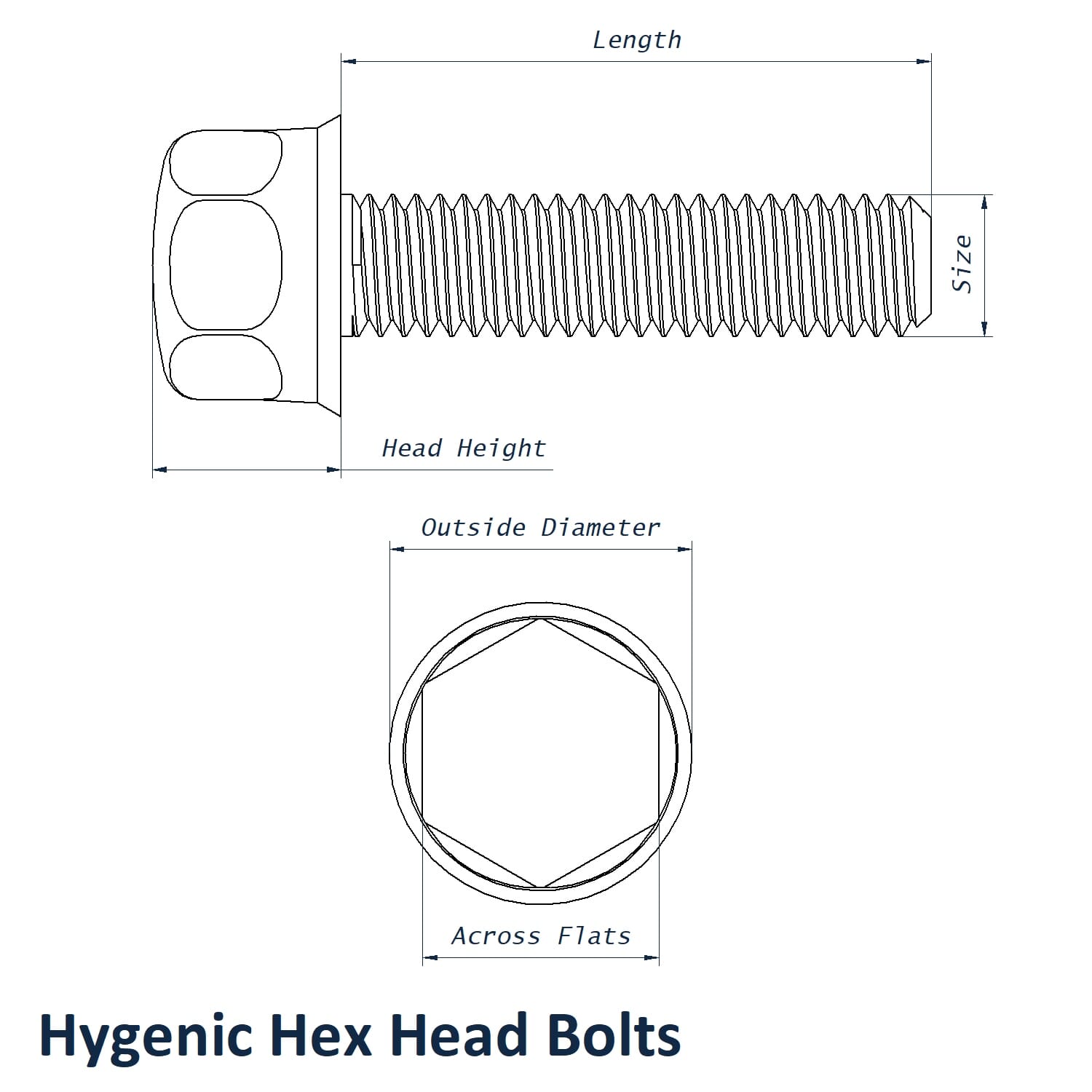

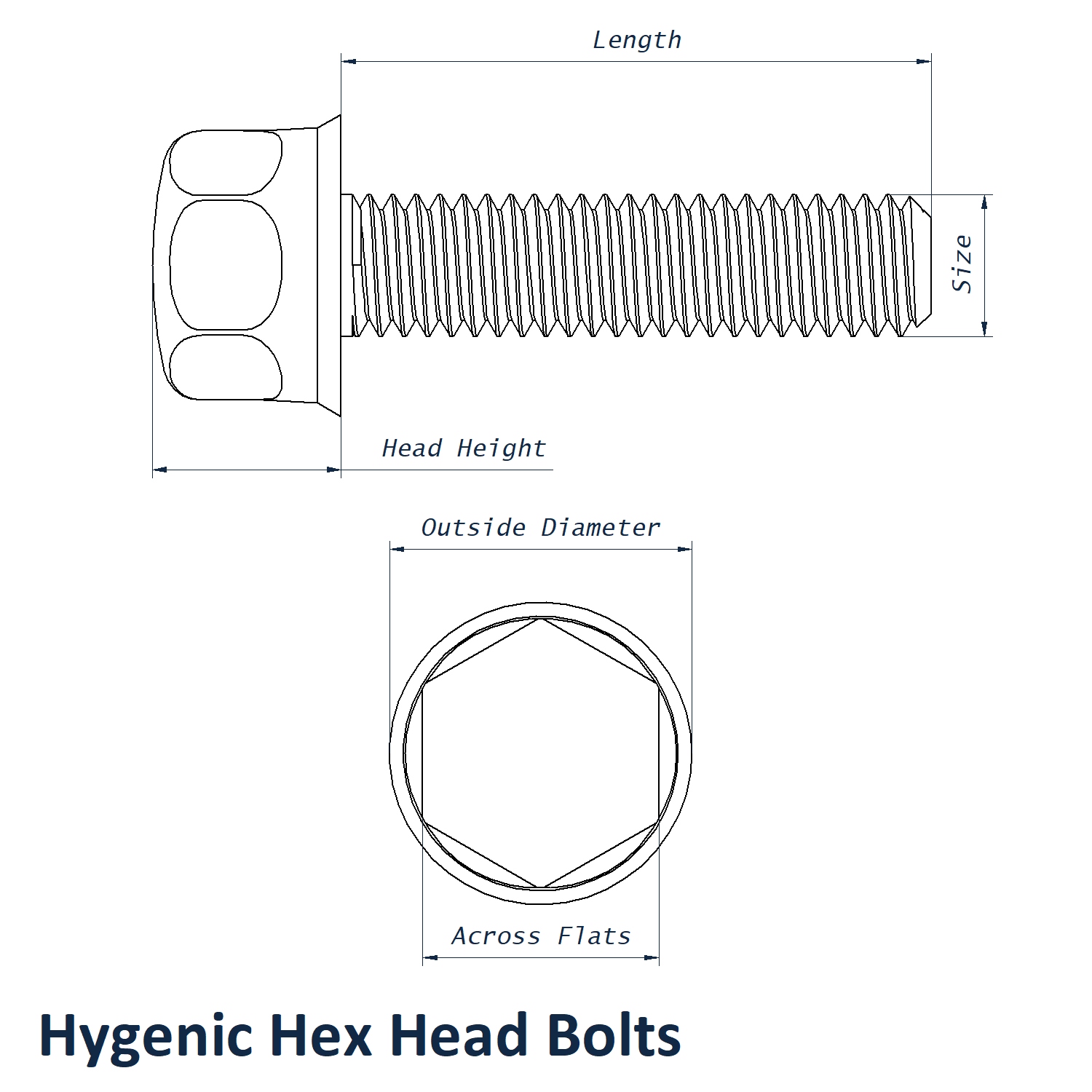

M24 x 40mm Hygienic Hex Head Screw Dimensions
- Size: M24
- Length: 40mm
- Pitch: 3.00mm
- Across Flats: 36mm
- Head Height: 22mm
- Flange Diameter: 46.08mm
- Bolt Material: A4 Stainless Steel
- Seal Material: NBR
Compatible Hygienic Nuts
Where a matching enclosed nut is required on the reverse side of the fixing, use Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
See the complete Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
