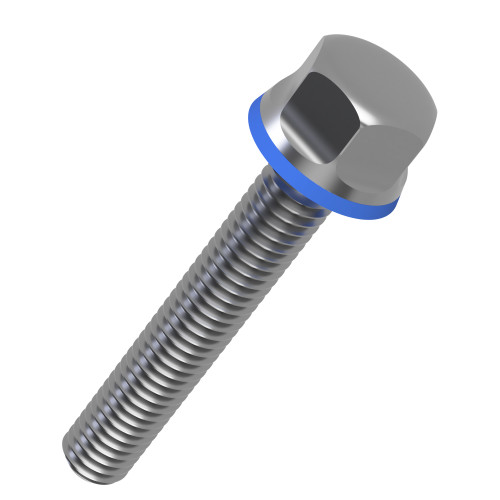

M5 x 16mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - EPDM Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £14.20 | £17.04 |
| 25 - 49 | £11.83 | £14.20 |
| 50 - 99 | £9.47 | £11.36 |
| 100 - 499 | £8.28 | £9.94 |
| 500 + | £7.95 | £9.54 |
Product Specification
| Size | M5 |
| Length | 16mm |
| Pitch | 0.80mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | EPDM |
| Across Flats | 8mm |
| Head Height | 6.5mm |
| Flange Diameter | 11.46mm |
Frequently Bought Together
Total Price: £0.00
M5 x 16mm Hygienic Hex Head Screw | A4 Stainless Steel | EPDM Seal
This M5 x 16mm Hygienic Hex Head Screw is made for hygiene-critical fastening where a sealed hex head helps protect the fixing point without leaving awkward recesses around the screw. With a 0.80mm pitch, 8mm across flats and A4 Stainless Steel construction, it suits food processing equipment where cleaning teams need fixings that leave fewer dirt traps around the head.
This format suits engineers who need a hygienic hex head screw that can be tightened with standard tooling while presenting a cleaner top-side finish. The EPDM seal is a strong option for washdown areas, outdoor exposure and cleaning routines where resistance to water and weathering is important. The 16mm length is suited to washdown conveyors and packing tables, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Laboratory benches and cabinets
- Stainless steel fabrication projects
- Bottling plant enclosure fixings
- Food processing machinery panels
M5 x 16mm Hygienic Hex Head Screw Dimensions
- Size: M5
- Length: 16mm
- Pitch: 0.80mm
- Across Flats: 8mm
- Head Height: 6.5mm
- Flange Diameter: 11.46mm
- Bolt Material: A4 Stainless Steel
- Seal Material: EPDM
Compatible Hygienic Nuts
For assemblies where the exposed thread also needs a closed hygienic finish, pair these screws with Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
View our full Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
