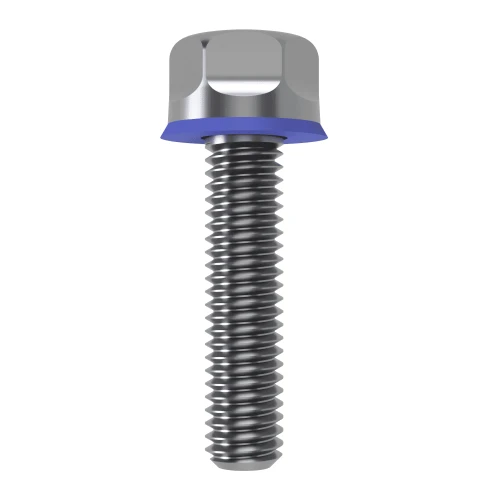

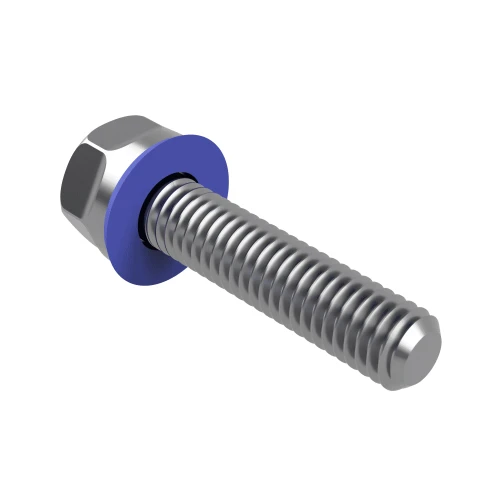

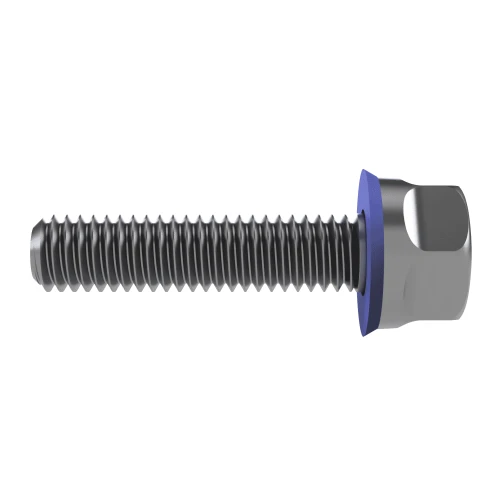

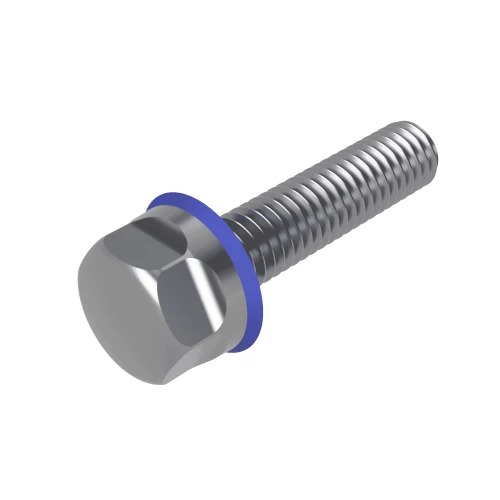

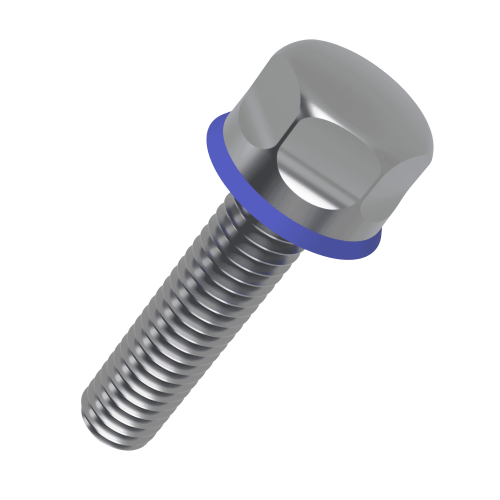

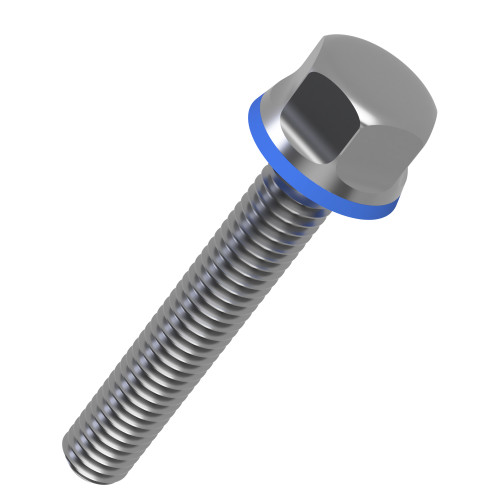

M6 x 12mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - NBR Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £12.44 | £14.93 |
| 25 - 49 | £10.37 | £12.44 |
| 50 - 99 | £8.29 | £9.95 |
| 100 - 499 | £7.26 | £8.71 |
| 500 + | £6.97 | £8.36 |
Product Specification
| Size | M6 |
| Length | 12mm |
| Pitch | 1.00mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | NBR |
| Across Flats | 10mm |
| Head Height | 8.0mm |
| Flange Diameter | 12.77mm |
Frequently Bought Together
Total Price: £0.00
M6 x 12mm Hygienic Hex Head Screw | A4 Stainless Steel | NBR Seal
This M6 x 12mm Hygienic Hex Head Screw supports reliable fastening in washdown equipment, food-safe machinery areas and stainless structures where the screw head remains visible. With a 1.00mm pitch, 10mm across flats and A4 Stainless Steel construction, it suits medical equipment manufacture where tidy fastener finishes support a cleaner equipment appearance.
Its sealed underside is useful where routine wipe-downs, inspection and contamination control are part of the equipment design. The NBR seal is well suited to general oil and grease exposure, making it practical for machinery near drive systems and service areas. The 12mm length is suited to stainless housings and service panels, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Stainless steel fabrication projects
- Bottling plant enclosure fixings
- Food processing machinery panels
- Laboratory benches and cabinets

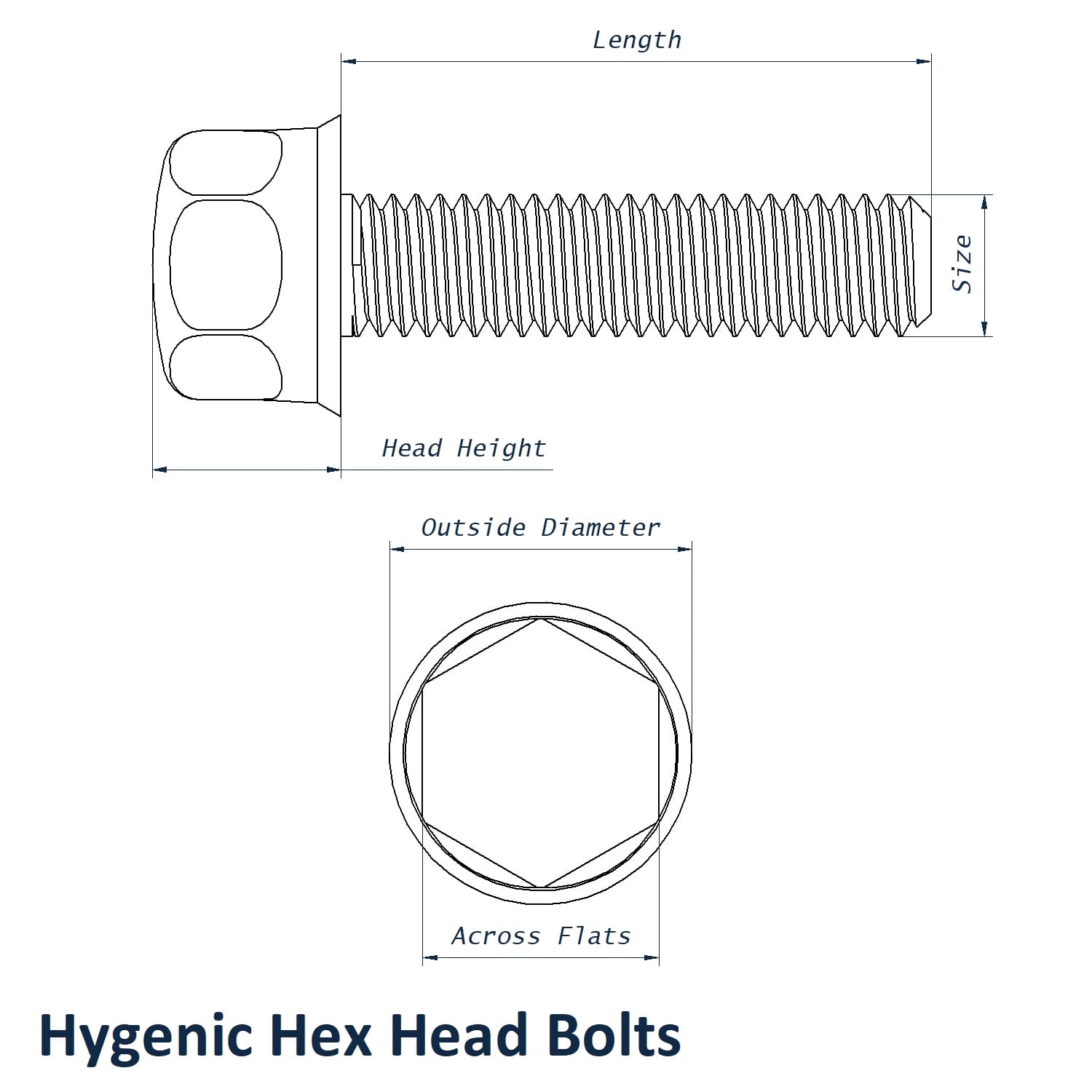

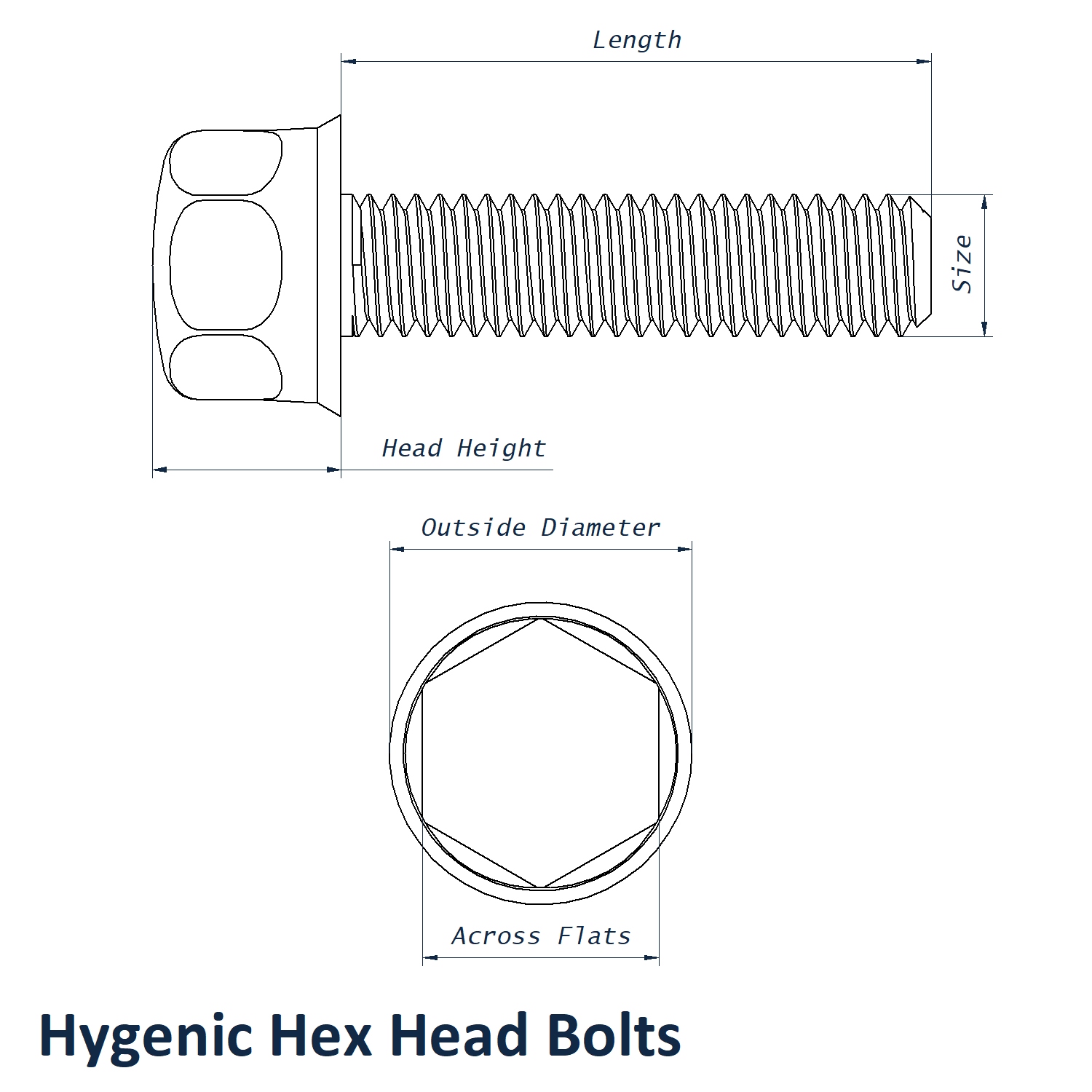

M6 x 12mm Hygienic Hex Head Screw Dimensions
- Size: M6
- Length: 12mm
- Pitch: 1.00mm
- Across Flats: 10mm
- Head Height: 8mm
- Flange Diameter: 12.77mm
- Bolt Material: A4 Stainless Steel
- Seal Material: NBR
Compatible Hygienic Nuts
Where a matching enclosed nut is required on the reverse side of the fixing, use Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
View our full Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
