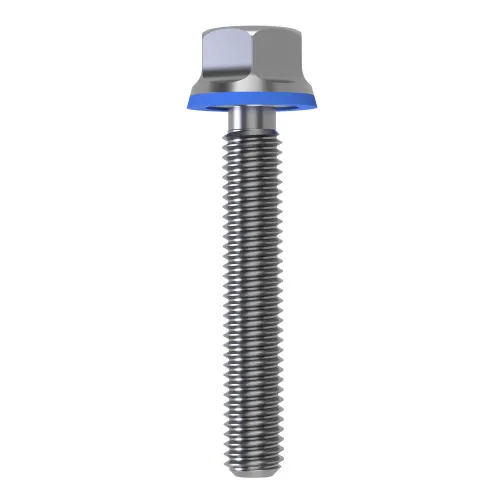

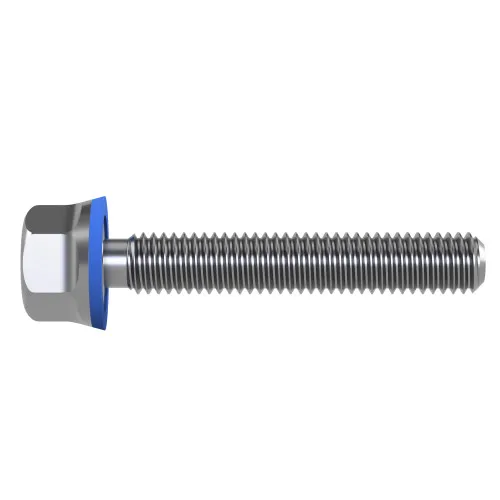

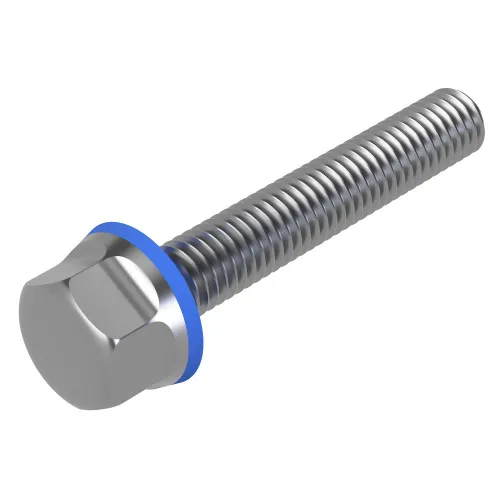

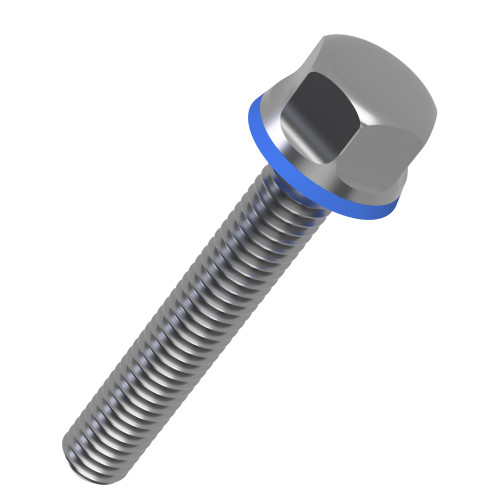

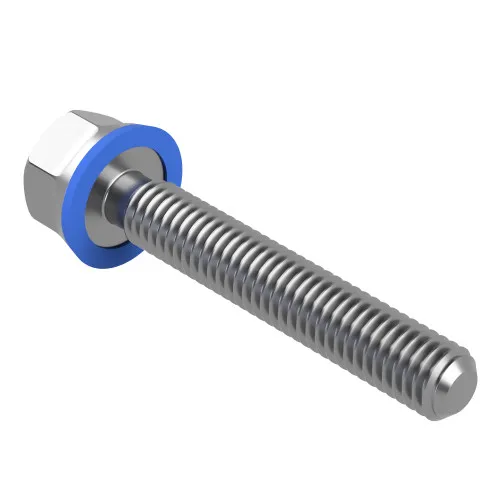

M6 x 45mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - EPDM Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £19.27 | £23.12 |
| 25 - 49 | £16.06 | £19.27 |
| 50 - 99 | £12.84 | £15.41 |
| 100 - 499 | £11.24 | £13.49 |
| 500 + | £10.79 | £12.95 |
£23.12 / each
Product Specification
| Size | M6 |
| Length | 45mm |
| Pitch | 1.00mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | EPDM |
| Across Flats | 10mm |
| Head Height | 8.0mm |
| Flange Diameter | 12.77mm |
Frequently Bought Together
250mm Metal Detectable Cable Ties (68mm Max Bundle) - 4.5mm Wide - 20kg Tensile Strength | 100pk
Total Price: £0.00
M6 x 45mm Hygienic Hex Head Screw | A4 Stainless Steel | EPDM Seal
This M6 x 45mm Hygienic Hex Head Screw provides a clean fastening solution for stainless panels, machinery covers and guarded equipment used in demanding production environments. With a 1.00mm pitch, 10mm across flats and A4 Stainless Steel construction, it suits packaging machinery where secure fastening is useful where panels are removed during maintenance.
A4 stainless steel gives this fixing the corrosion resistance expected for exposed stainless equipment. EPDM is often selected where water resistance and ageing performance are important within hygienic production equipment. The 45mm length is suited to changeover guards and cover plates, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Stainless steel fabrication projects
- Bottling plant enclosure fixings
- Food processing machinery panels
- Laboratory benches and cabinets

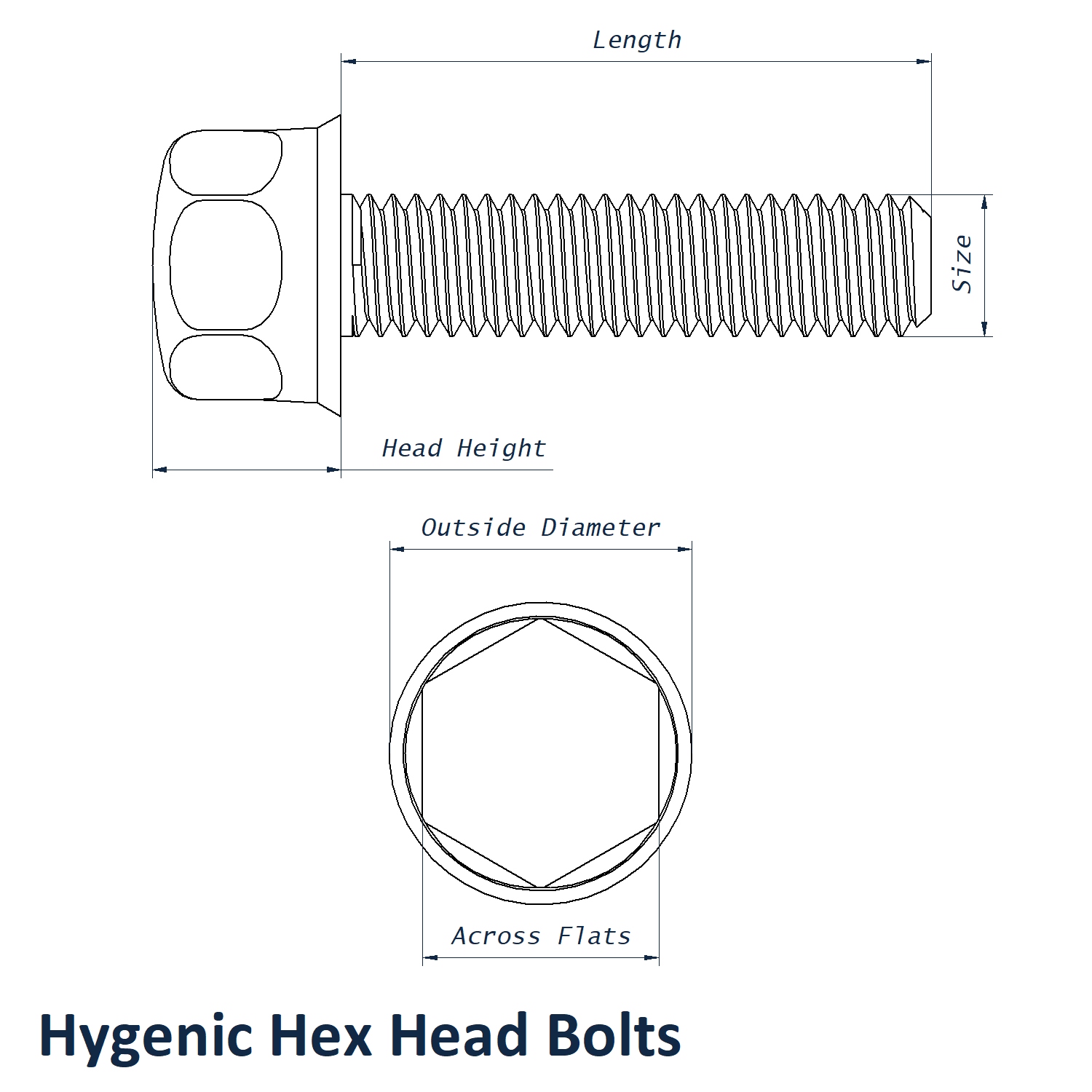

M6 x 45mm Hygienic Hex Head Screw Dimensions
- Size: M6
- Length: 45mm
- Pitch: 1.00mm
- Across Flats: 10mm
- Head Height: 8mm
- Flange Diameter: 12.77mm
- Bolt Material: A4 Stainless Steel
- Seal Material: EPDM
Compatible Hygienic Nuts
Where a matching enclosed nut is required on the reverse side of the fixing, use Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
Explore our full Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
