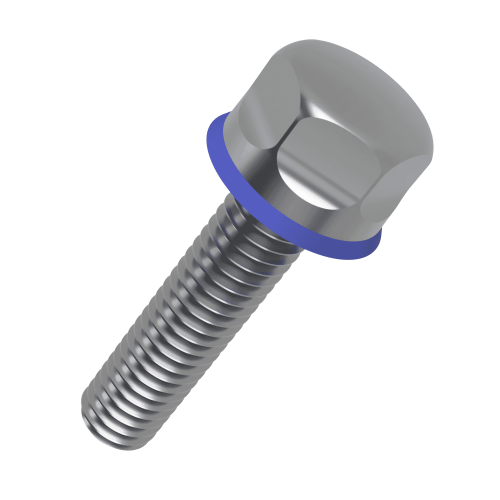

M8 x 20mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - EPDM Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £15.79 | £18.95 |
| 25 - 49 | £13.17 | £15.80 |
| 50 - 99 | £10.53 | £12.64 |
| 100 - 499 | £9.22 | £11.06 |
| 500 + | £8.84 | £10.61 |
Product Specification
| Size | M8 |
| Length | 20mm |
| Pitch | 1.25mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | EPDM |
| Across Flats | 13mm |
| Head Height | 10.0mm |
| Flange Diameter | 17.33mm |
Frequently Bought Together
Total Price: £0.00
M8 x 20mm Hygienic Hex Head Screw | A4 Stainless Steel | EPDM Seal

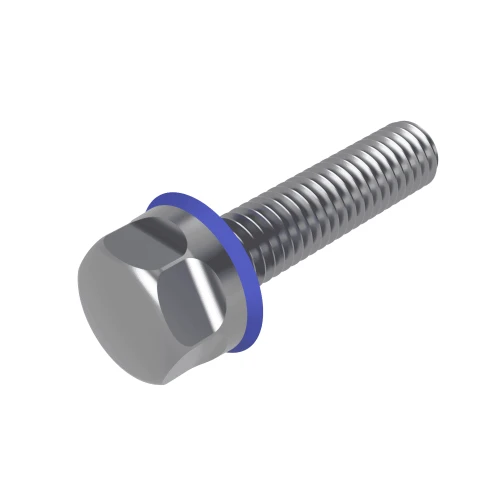

This M8 x 20mm Hygienic Hex Head Screw is made for hygiene-critical fastening where a sealed hex head helps protect the fixing point without leaving awkward recesses around the screw. With a 1.25mm pitch, 13mm across flats and A4 Stainless Steel construction, it suits medical equipment manufacture where tidy fastener finishes support a cleaner equipment appearance.
The EPDM seal sits beneath the head to support a cleaner interface against the mounting face. The EPDM seal is a strong option for washdown areas, outdoor exposure and cleaning routines where resistance to water and weathering is important. The 20mm length is suited to stainless housings and service panels, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Marine grade stainless equipment
- OEM sanitary equipment builds
- Hygienic door and hatch fixings
- Dairy and beverage line guards
M8 x 20mm Hygienic Hex Head Screw Dimensions
- Size: M8
- Length: 20mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 10mm
- Flange Diameter: 17.33mm
- Bolt Material: A4 Stainless Steel
- Seal Material: EPDM
Compatible Hygienic Nuts
For assemblies where the exposed thread also needs a closed hygienic finish, pair these screws with Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
View our full Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
