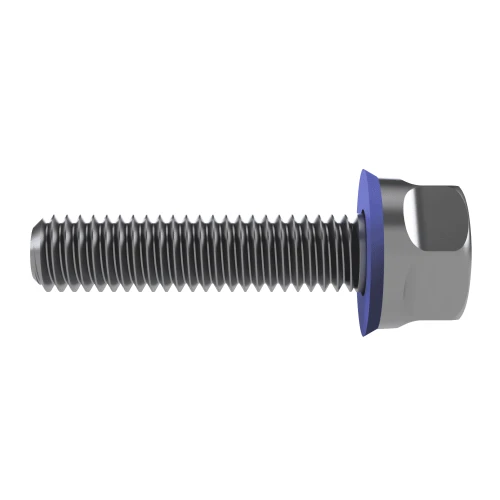

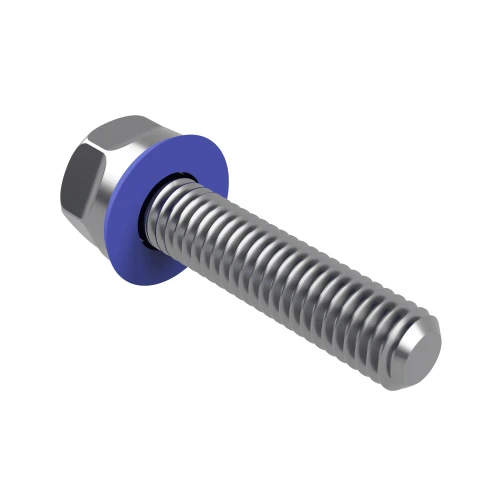

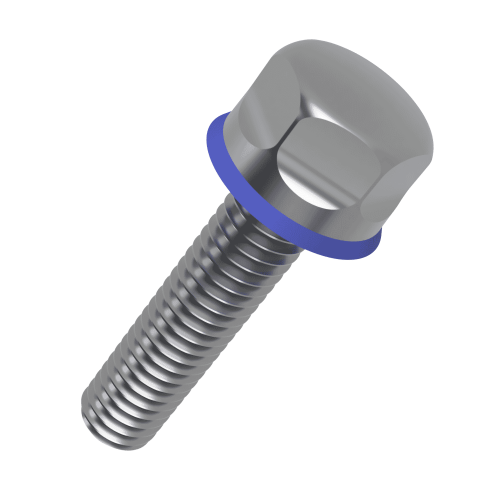

M8 x 20mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - NBR Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £15.99 | £19.19 |
| 25 - 49 | £13.32 | £15.99 |
| 50 - 99 | £10.66 | £12.79 |
| 100 - 499 | £9.32 | £11.19 |
| 500 + | £8.96 | £10.75 |
Product Specification
| Size | M8 |
| Length | 20mm |
| Pitch | 1.25mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | NBR |
| Across Flats | 13mm |
| Head Height | 10.0mm |
| Flange Diameter | 17.33mm |
Frequently Bought Together
Total Price: £0.00
M8 x 20mm Hygienic Hex Head Screw | A4 Stainless Steel | NBR Seal
This M8 x 20mm Hygienic Hex Head Screw provides a clean fastening solution for stainless panels, machinery covers and guarded equipment used in demanding production environments. With a 1.25mm pitch, 13mm across flats and A4 Stainless Steel construction, it suits commercial catering equipment where visible screw heads can be finished neatly for easy wipe-down access.
A4 stainless steel gives this fixing the corrosion resistance expected for exposed stainless equipment. NBR sealing helps create a close interface beneath the head, which is useful where cleaning spray and workshop contamination need to be managed. The 20mm length is suited to fabricated frames and hygiene screens, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Production line cover plates
- Industrial cleaning station equipment
- Pharmaceutical production equipment
- Packaging machine inspection panels

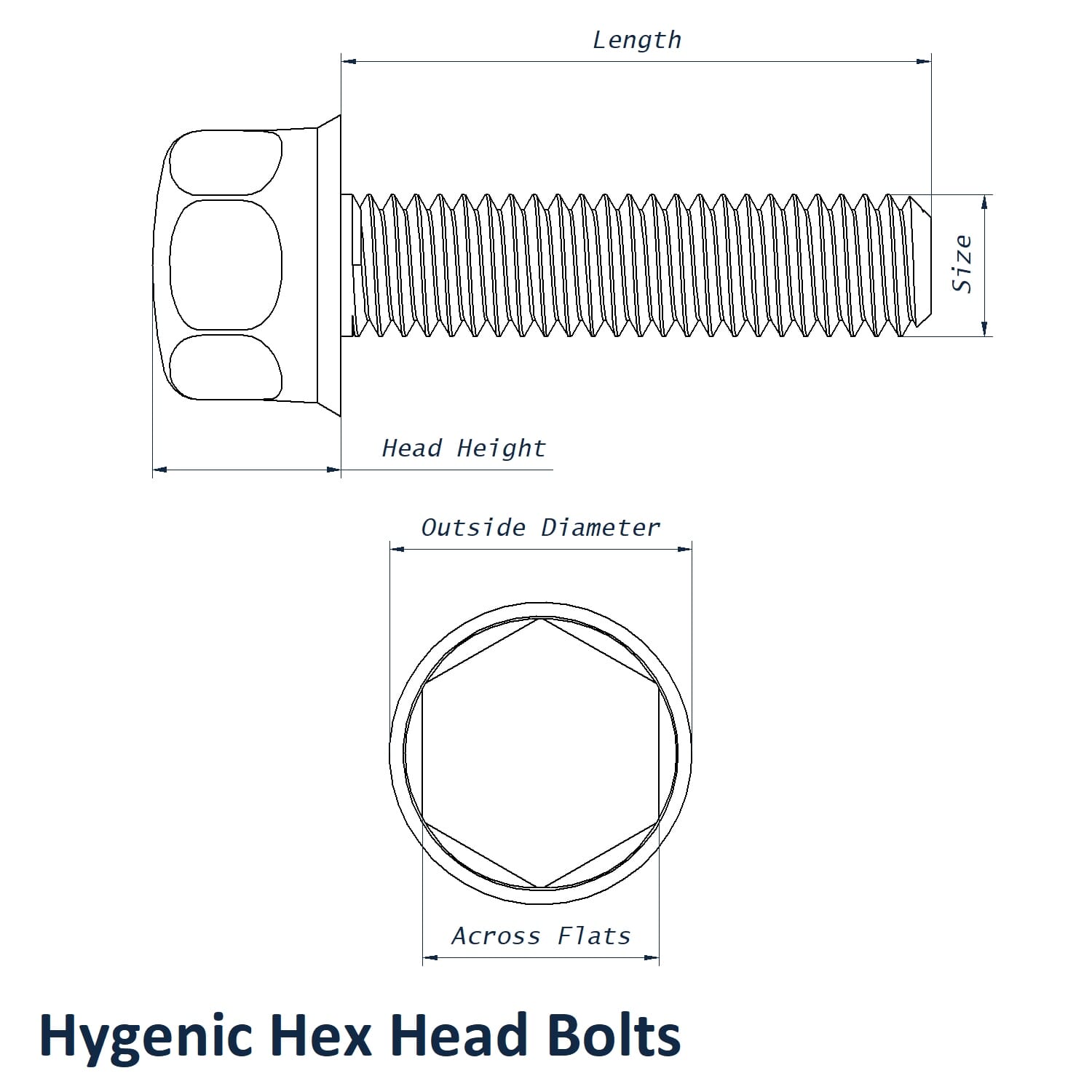

M8 x 20mm Hygienic Hex Head Screw Dimensions
- Size: M8
- Length: 20mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 10mm
- Flange Diameter: 17.33mm
- Bolt Material: A4 Stainless Steel
- Seal Material: NBR
Compatible Hygienic Nuts
Where a matching enclosed nut is required on the reverse side of the fixing, use Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
Browse the full Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
