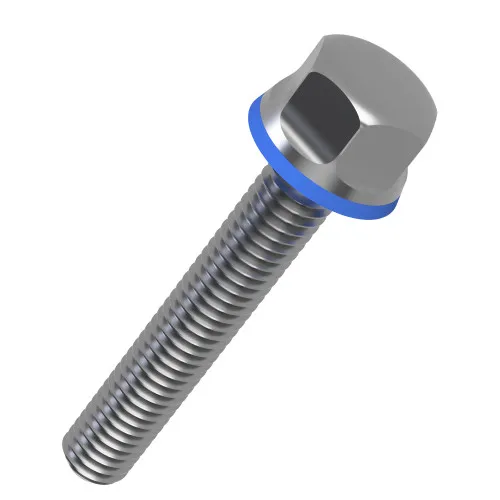

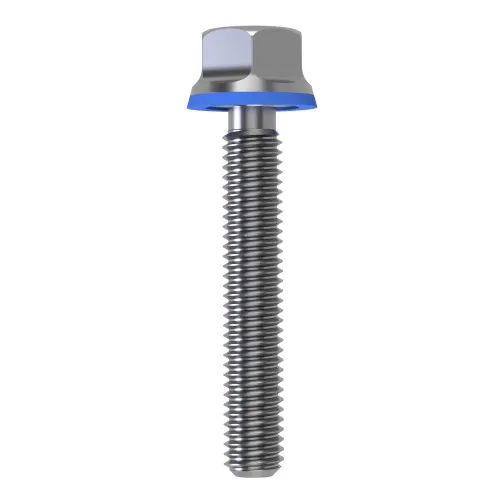

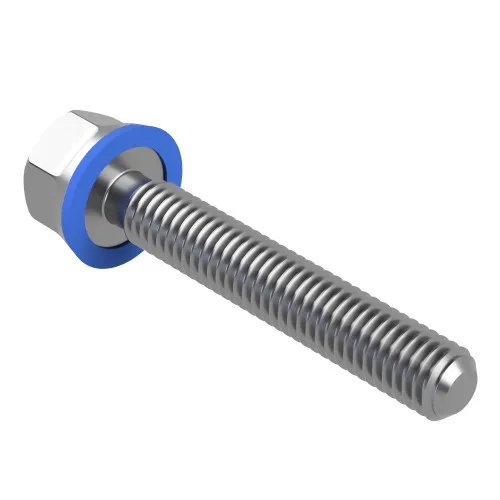

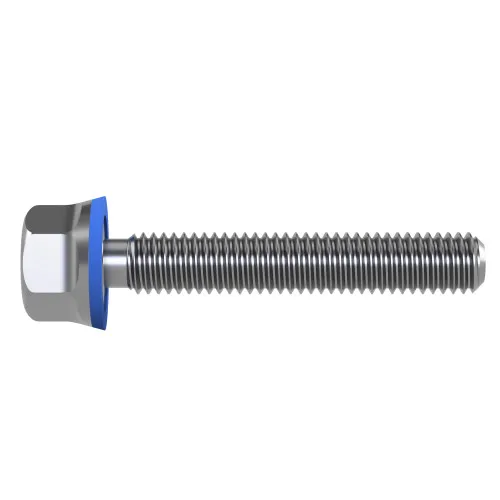

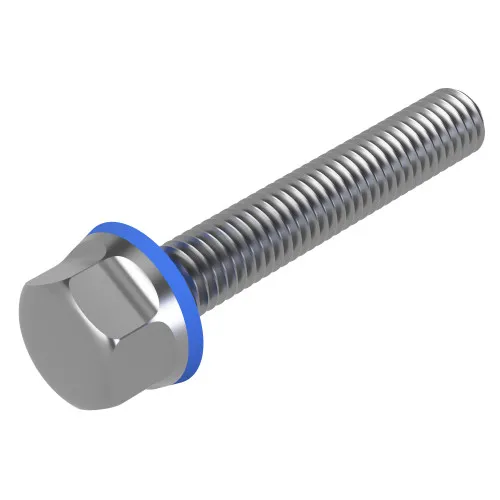

M8 x 40mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - EPDM Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £20.67 | £24.80 |
| 25 - 49 | £17.23 | £20.67 |
| 50 - 99 | £13.78 | £16.54 |
| 100 - 499 | £12.06 | £14.47 |
| 500 + | £11.57 | £13.89 |
£24.80 / each
Product Specification
| Size | M8 |
| Length | 40mm |
| Pitch | 1.25mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | EPDM |
| Across Flats | 13mm |
| Head Height | 10.0mm |
| Flange Diameter | 17.33mm |
Frequently Bought Together
250mm Metal Detectable Cable Ties (68mm Max Bundle) - 4.5mm Wide - 20kg Tensile Strength | 100pk
Total Price: £0.00
M8 x 40mm Hygienic Hex Head Screw | A4 Stainless Steel | EPDM Seal
This M8 x 40mm Hygienic Hex Head Screw is a practical choice for OEM builds that require a metric hygienic bolt with marine grade stainless steel and a seal beneath the head. With a 1.25mm pitch, 13mm across flats and A4 Stainless Steel construction, it suits OEM hygienic assemblies where consistent dimensions make repeat installation easier across manufactured units.
A4 stainless steel gives this fixing the corrosion resistance expected for exposed stainless equipment. EPDM is often selected where water resistance and ageing performance are important within hygienic production equipment. The 40mm length is suited to bespoke stainless frames and production enclosures, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Chemical washdown service areas
- Washdown conveyor assemblies
- Cleanroom furniture and access covers
- Hygiene-sensitive machine maintenance

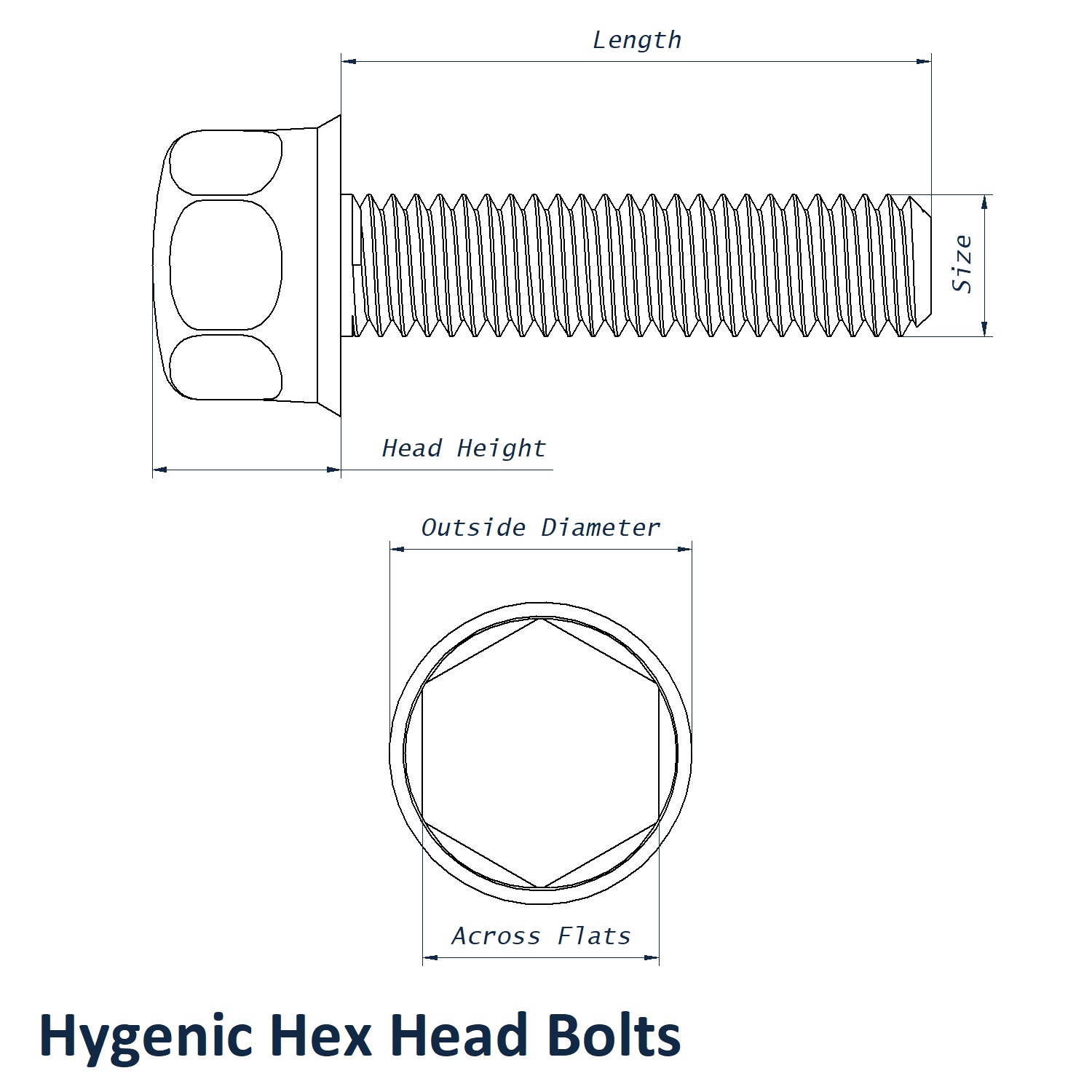

M8 x 40mm Hygienic Hex Head Screw Dimensions
- Size: M8
- Length: 40mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 10mm
- Flange Diameter: 17.33mm
- Bolt Material: A4 Stainless Steel
- Seal Material: EPDM
Compatible Hygienic Nuts
For a cleaner fastening assembly on through-bolted panels, combine this screw with Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
Explore our full Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
