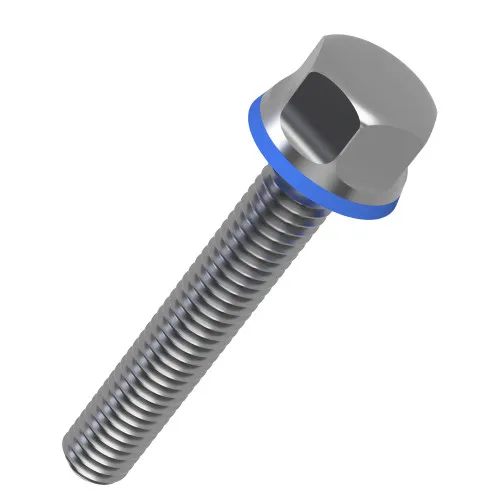

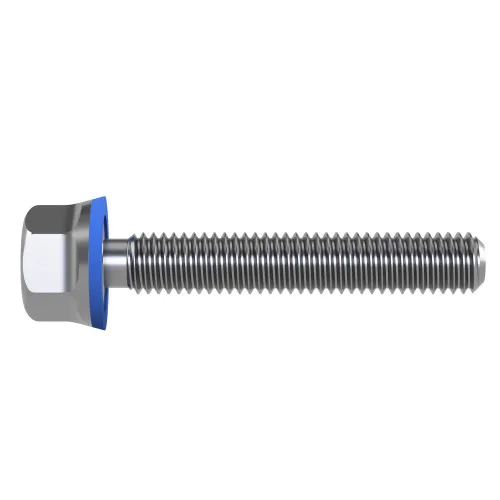

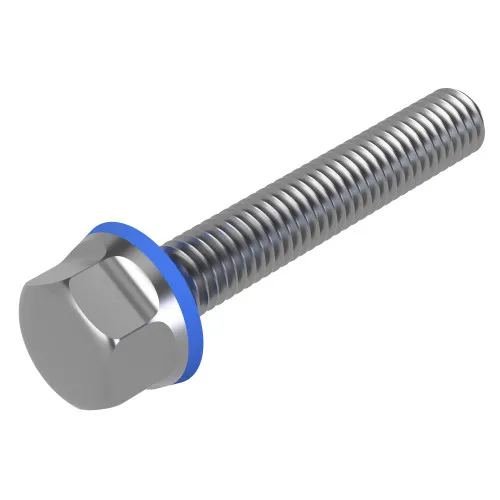

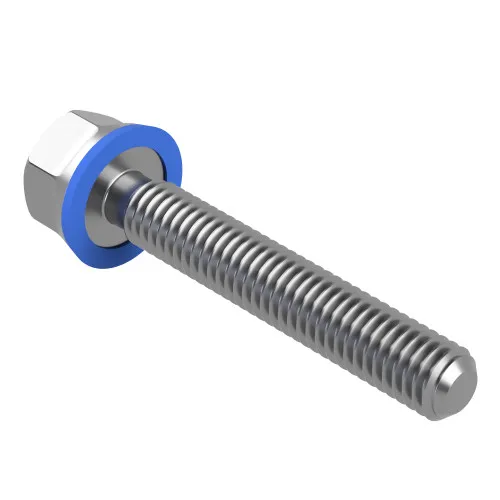

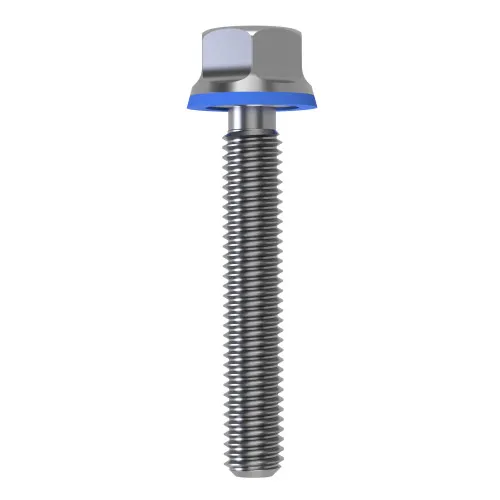

M8 x 45mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - NBR Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £20.78 | £24.94 |
| 25 - 49 | £17.32 | £20.79 |
| 50 - 99 | £13.86 | £16.63 |
| 100 - 499 | £12.12 | £14.55 |
| 500 + | £11.64 | £13.97 |
£24.94 / each
Product Specification
| Size | M8 |
| Length | 45mm |
| Pitch | 1.25mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | NBR |
| Across Flats | 13mm |
| Head Height | 10.0mm |
| Flange Diameter | 17.33mm |
Frequently Bought Together
250mm Metal Detectable Cable Ties (68mm Max Bundle) - 4.5mm Wide - 20kg Tensile Strength | 100pk
Total Price: £0.00
M8 x 45mm Hygienic Hex Head Screw | A4 Stainless Steel | NBR Seal
This M8 x 45mm Hygienic Hex Head Screw is specified for equipment where a sealed head, defined pitch and corrosion-resistant A4 stainless construction are needed in one fixing. With a 1.25mm pitch, 13mm across flats and A4 Stainless Steel construction, it suits pharmaceutical machinery where controlled production areas benefit from smooth sealed fastener heads.
The 10mm head height and 17.33mm flange diameter help identify fit within guarded panels and stainless housings. NBR sealing helps create a close interface beneath the head, which is useful where cleaning spray and workshop contamination need to be managed. The 45mm length is suited to guarding panels and access covers, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Commercial catering equipment frames
- Medical equipment housings
- Meat processing machinery guards
- Splash-zone frame assemblies
M8 x 45mm Hygienic Hex Head Screw Dimensions
- Size: M8
- Length: 45mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 10mm
- Flange Diameter: 17.33mm
- Bolt Material: A4 Stainless Steel
- Seal Material: NBR
Compatible Hygienic Nuts
When a smooth nut-side finish is needed for guards, covers or machine frames, choose Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
Browse the full Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
