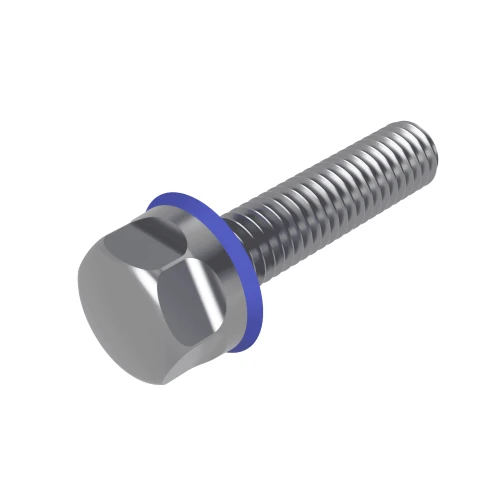

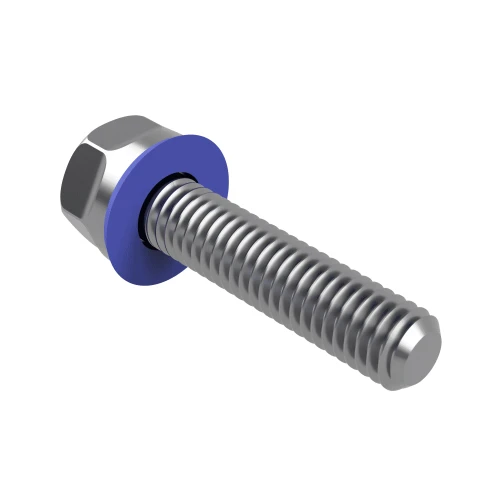

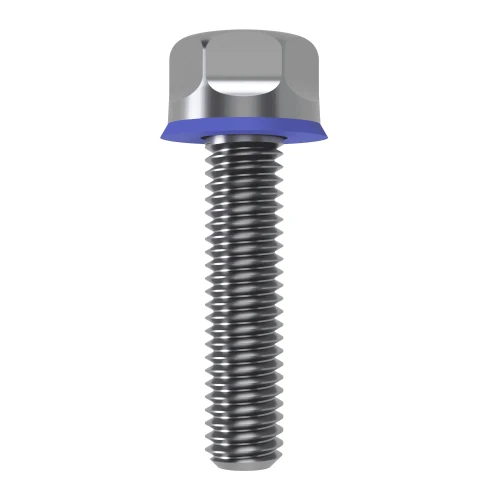

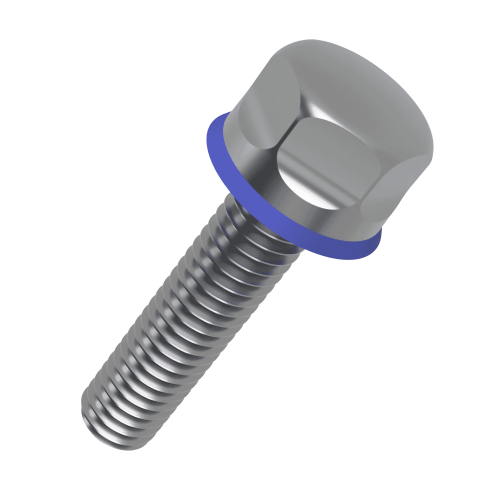

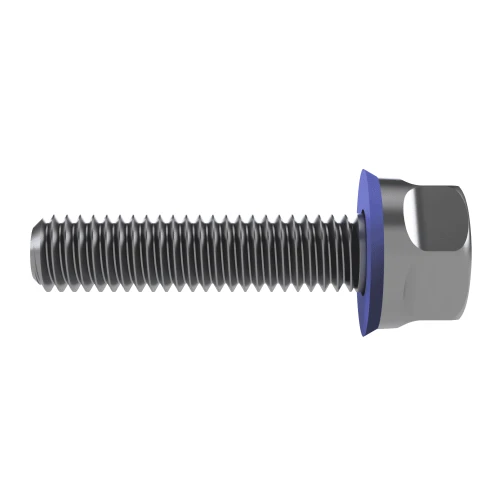

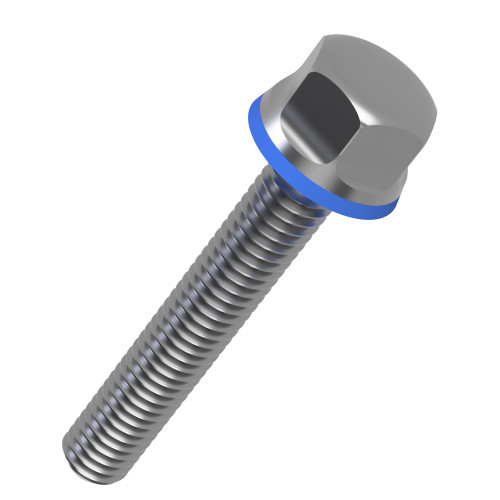

M8 x 70mm Hygienic Bolt (Hex Head) | Marine Grade A4 Stainless Steel - NBR Seal
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £26.40 | £31.68 |
| 25 - 49 | £22.00 | £26.40 |
| 50 - 99 | £17.60 | £21.12 |
| 100 - 499 | £15.40 | £18.48 |
| 500 + | £14.78 | £17.74 |
Product Specification
| Size | M8 |
| Length | 70mm |
| Pitch | 1.25mm |
| Bolt Material | A4 Stainless Steel |
| Seal Material | NBR |
| Across Flats | 13mm |
| Head Height | 10.0mm |
| Flange Diameter | 17.33mm |
Frequently Bought Together
Total Price: £0.00
M8 x 70mm Hygienic Hex Head Screw | A4 Stainless Steel | NBR Seal
This M8 x 70mm Hygienic Hex Head Screw offers a robust sealed head fixing for areas where exposed standard fasteners are unsuitable for regular cleaning and inspection routines. With a 1.25mm pitch, 13mm across flats and A4 Stainless Steel construction, it suits medical equipment manufacture where tidy fastener finishes support a cleaner equipment appearance.
The NBR seal sits beneath the head to support a cleaner interface against the mounting face. The NBR seal is well suited to general oil and grease exposure, making it practical for machinery near drive systems and service areas. The 70mm length is suited to stainless housings and service panels, while the sealed head style helps support easier cleaning compared with exposed recess-style fixings.
Common Applications
- Chemical washdown service areas
- Washdown conveyor assemblies
- Cleanroom furniture and access covers
- Hygiene-sensitive machine maintenance

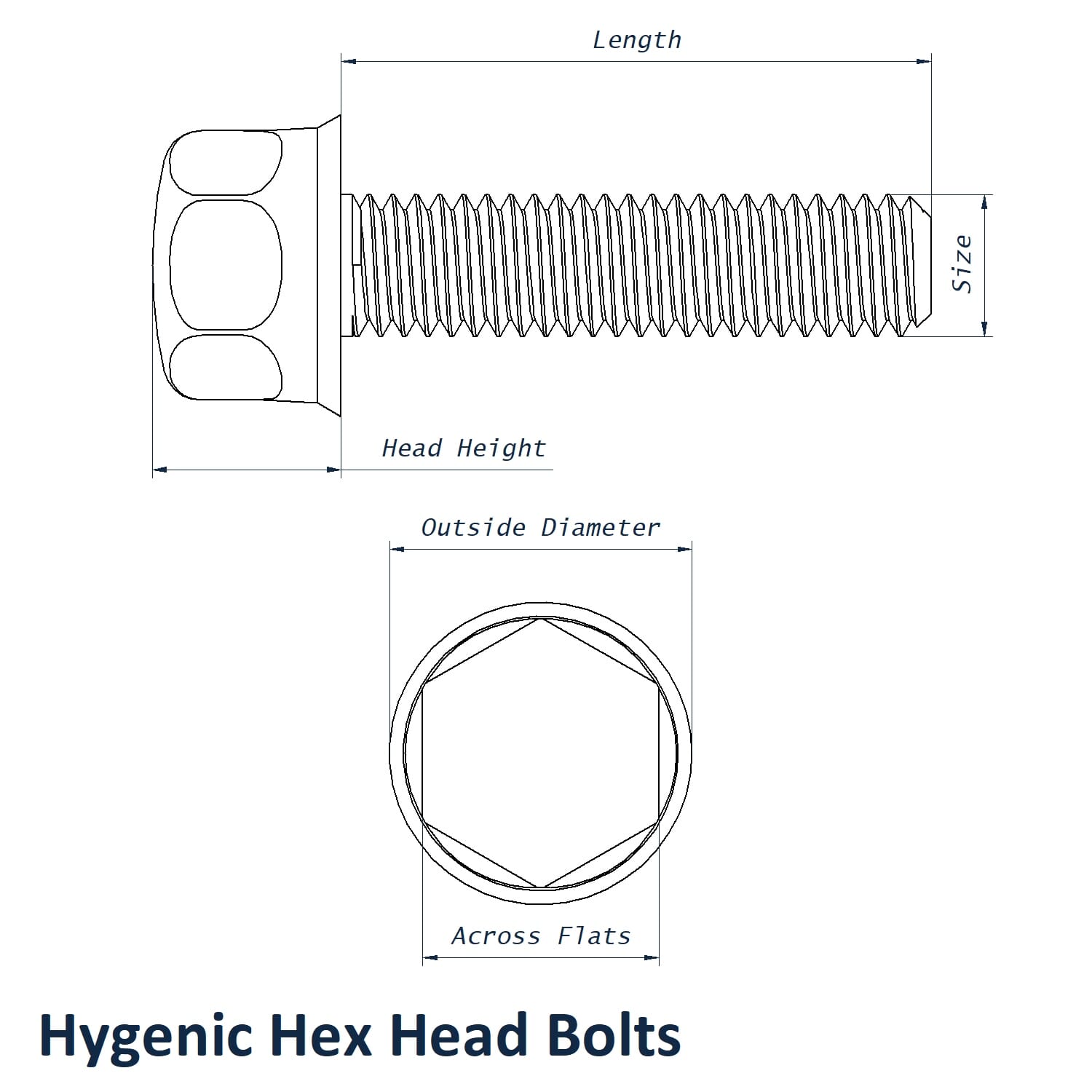

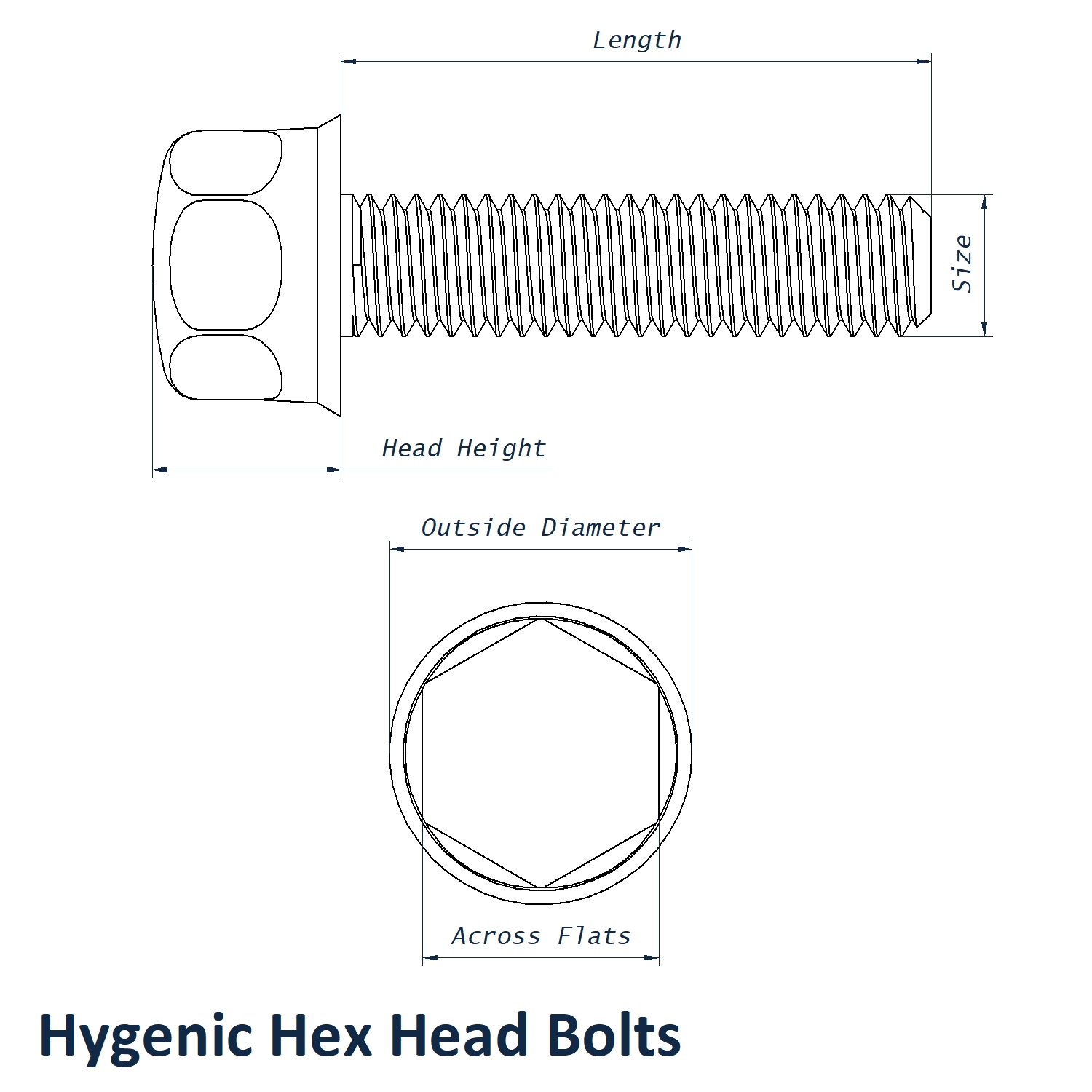

M8 x 70mm Hygienic Hex Head Screw Dimensions
- Size: M8
- Length: 70mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 10mm
- Flange Diameter: 17.33mm
- Bolt Material: A4 Stainless Steel
- Seal Material: NBR
Compatible Hygienic Nuts
For a cleaner fastening assembly on through-bolted panels, combine this screw with Hygienic Cap Nuts. Hygienic nuts help shield exposed threads and provide a smooth capped finish for stainless equipment, guards and hygiene-sensitive assemblies.
View our full Hygienic Hex Head Screws range or view compatible Hygienic Cap Nuts.
