Steel Control Handwheel - HW313
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £54.62 | £65.55 |
| 10 - 24 | £48.44 | £58.13 |
| 25 - 49 | £46.38 | £55.66 |
| 50 - 99 | £43.29 | £51.95 |
| 100 - 499 | £41.23 | £49.47 |
| 500 + | £37.11 | £44.53 |
Product Specification
| Handwheel Diameter | 200mm |
| Total Height | 46mm |
| Shank Diameter | 40mm |
| Bore Diameter | 14mm |
| Keyway Width X Height | 5mm x 2.4mm |
| Handle Height | N/A |
| Handle Thickness | 22mm |
| Style | 4 Spoked |
| Colour | Black |
| Handwheel Material | Steel |
| Thread Material | Steel |
Frequently Bought Together
Total Price: £0.00

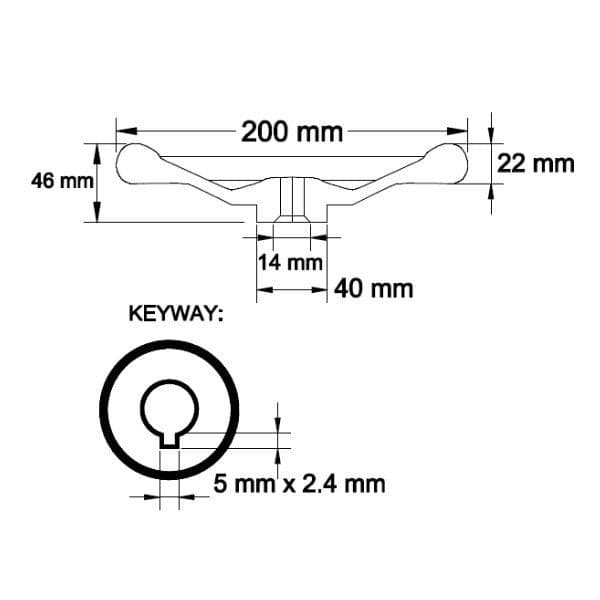

This steel control handwheel has a diameter of 200mm and a height of 46mm. It has a 40mm shank diameter and a 22mm handle thickness. Its standard bore size is 14mm and it has keyway dimensions of 5mm x 2.4mm (width x height).

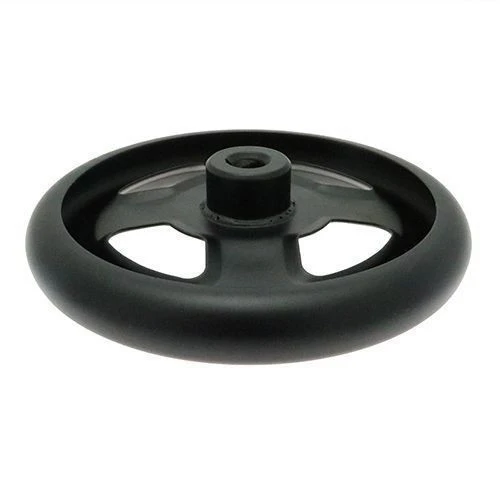

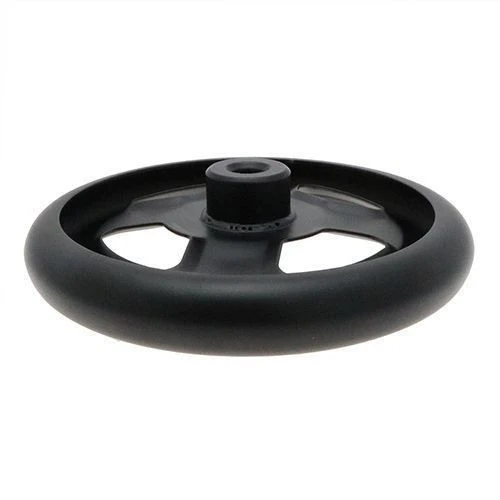

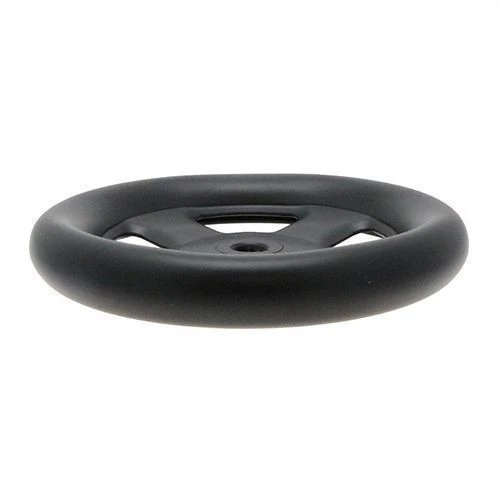

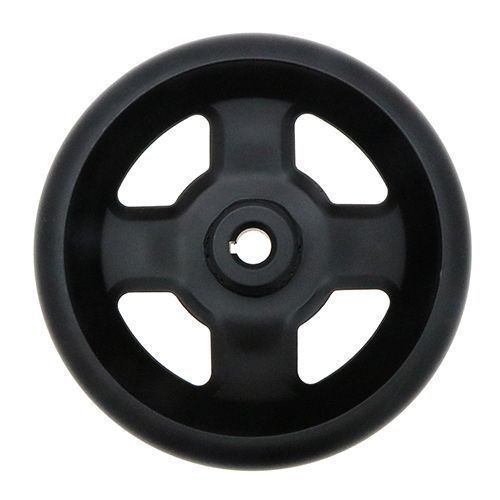

The Steel Control Handwheels are made from pressed steel and come in a matte black finish, with 3-5 spoked designs depending on size. They have a keyway slot for easy installation on various applications and are resistant to chemicals and acids.
These handwheels are commonly used for control and regulation purposes in industries and are commonly used as valve and machine control handles.
We stock them in different diameters ranging from 125mm to 250mm, and keyway sizes can be customized to suit different applications.
