Low Profile Adjustable Feet - LOW058
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.65 | £0.78 |
| 100 - 249 | £0.64 | £0.77 |
| 250 - 499 | £0.62 | £0.75 |
| 500 - 999 | £0.62 | £0.74 |
| 1000 + | £0.60 | £0.72 |
Product Specification
| Thread Size | M8 |
| Stud Length | 36mm |
| Base Diameter | 29mm |
| Base Height | 7mm |
| Material | Nylon |
Frequently Bought Together
Total Price: £0.00

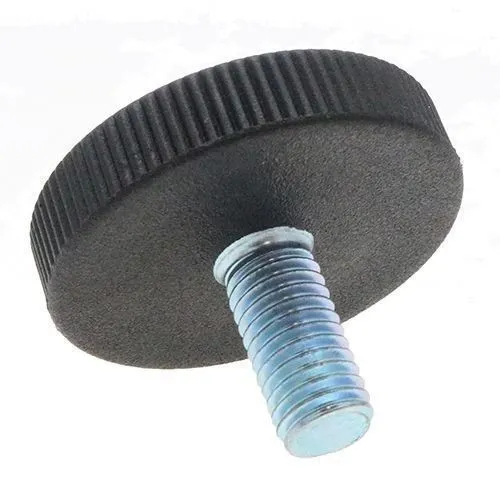

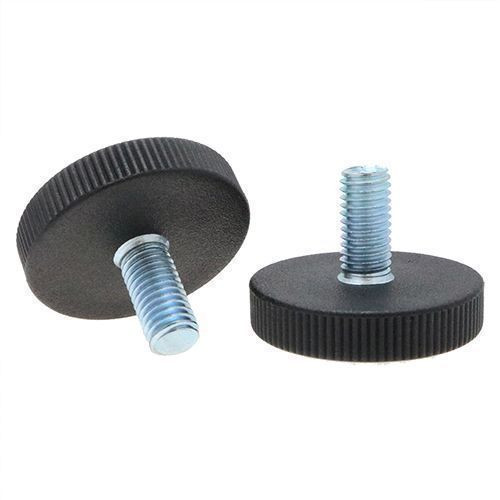

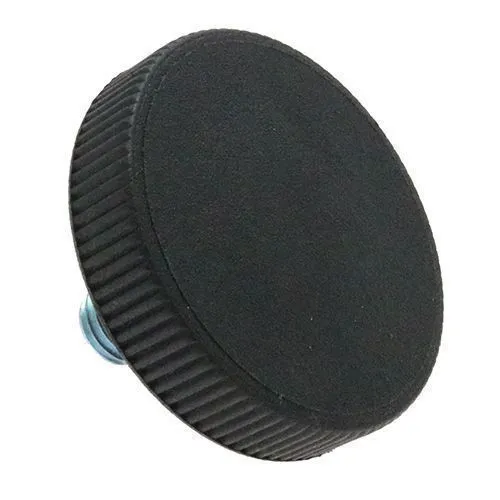

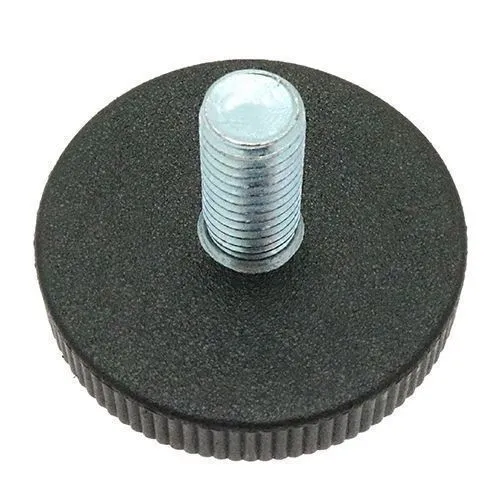

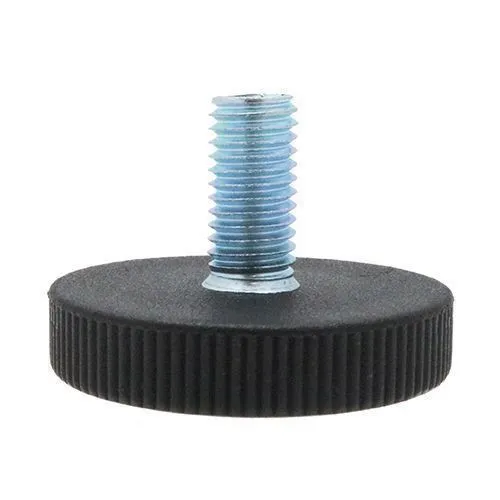

M8 x 36mm Low Profile Adjustable Foot | 29mm Base Diameter | Nylon with Steel Stud
The M8 x 36mm Low Profile Adjustable Foot with a 29mm base diameter offers a compact support solution for low framework prototypes, especially where visual bulk needs to be kept to a minimum. Its shallow base is useful for units that sit close to the floor.
Because the foot is shallow, it can be used where standard adjustable feet may clash with doors, kickboards, lower rails or recessed plinths.
Common Applications
- Design and development workshops: suited to low furniture, cabinets or equipment where a shallow support point is required.
- Low framework prototypes: helps installers make fine height changes without lifting the product too far from the floor.
- OEM assembly: useful for repeat builds that need consistent low-clearance feet.
- Low-clearance support: keeps low equipment housings aligned during installation for low framework prototypes.

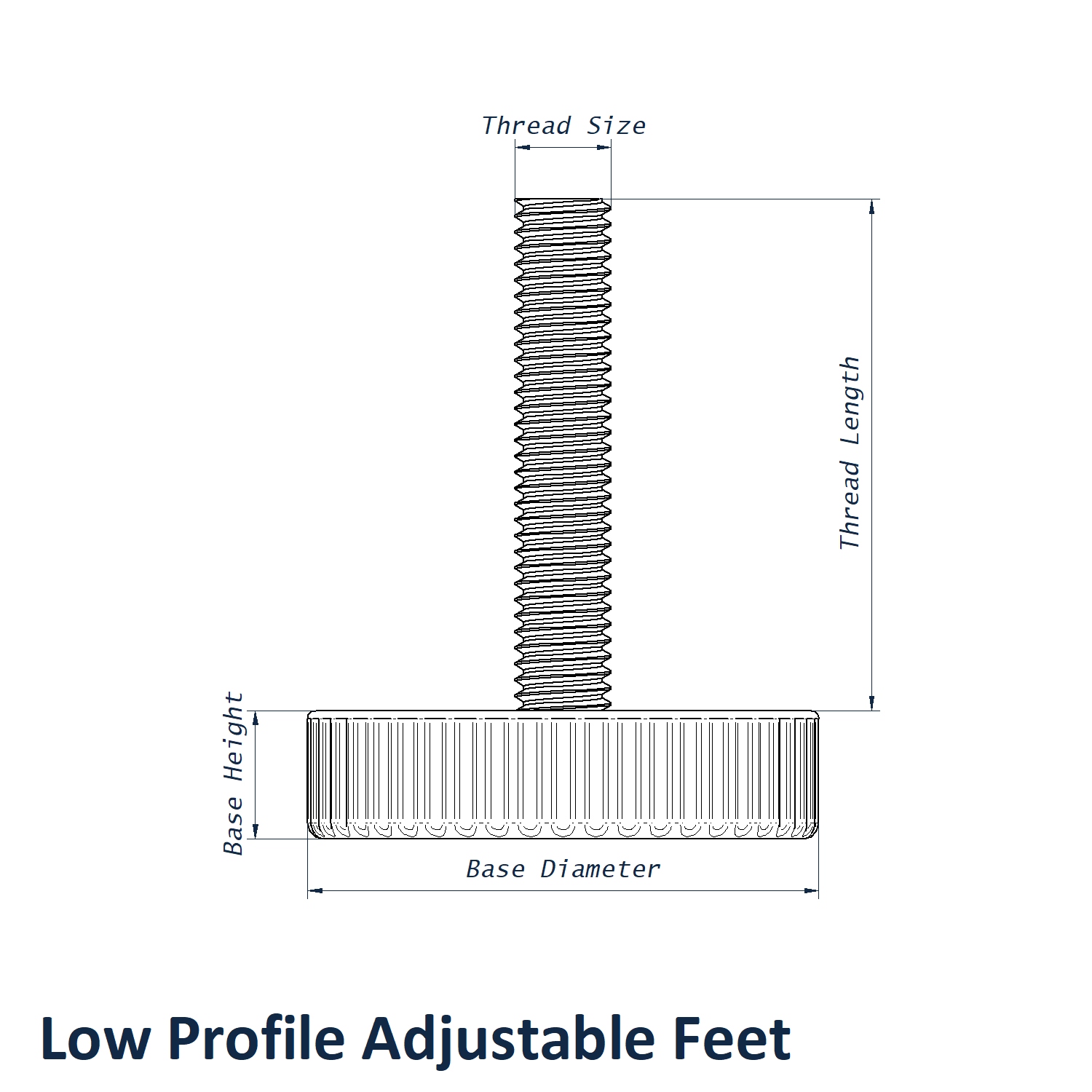

M8 x 36mm Low Profile Adjustable Foot | 29mm Base Diameter Dimensions
Use these dimensions to match the foot with the correct threaded insert or fixing point.
- Base Diameter: 29mm
- Thread Size: M8
- Stud Length: 36mm
- Base Height: 7mm
- Material: Nylon
- Colour: Black
- Stud Material: Steel
Commonly Paired with Low Profile Feet - D Nuts
D Nuts are best for slim furniture with adjustable feet. When fitting this M8 x 36mm foot to compact furniture, D Nuts help create a secure anchor point while keeping the assembly shallow. They provide a reliable anchor point for adjustable feet in compact furniture, cabinets or shelving.
Click here to view our full range of D Nuts.
View our full range of Low Profile Adjustable Feet at [Product Category URL].
