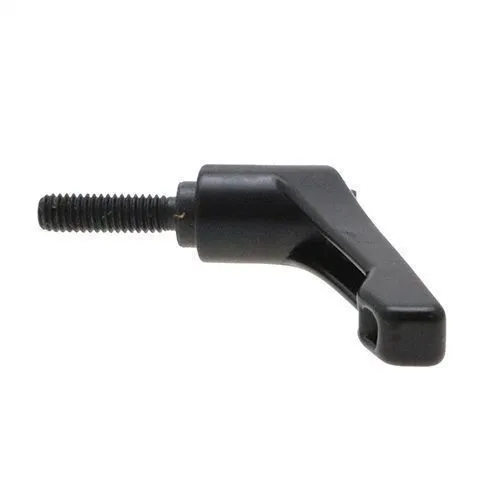

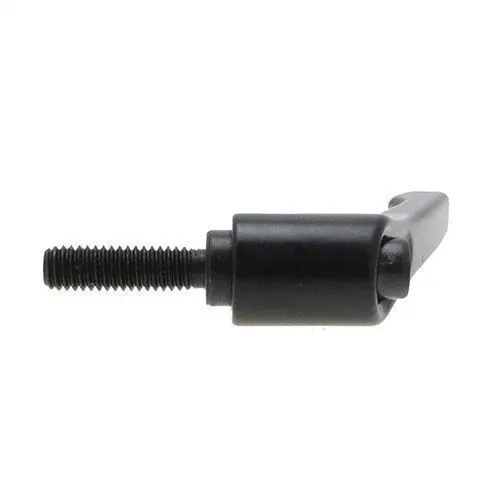

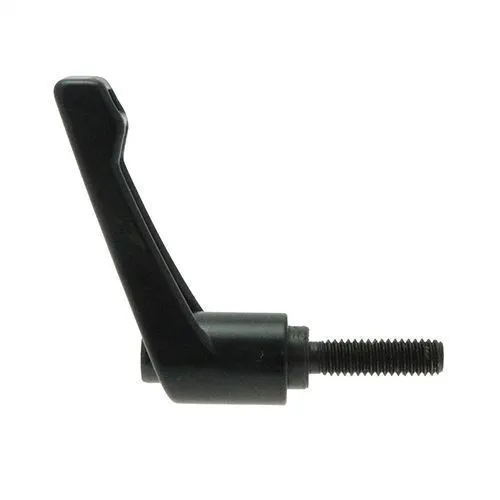

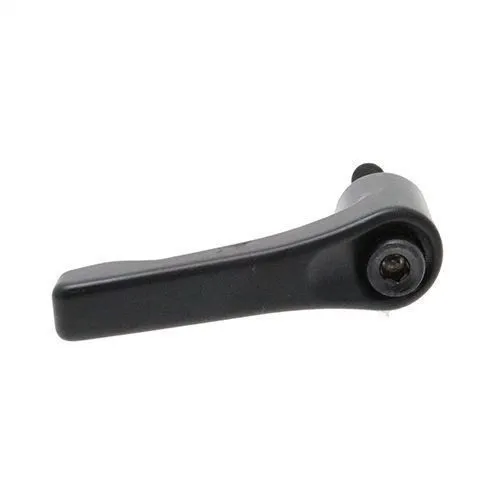

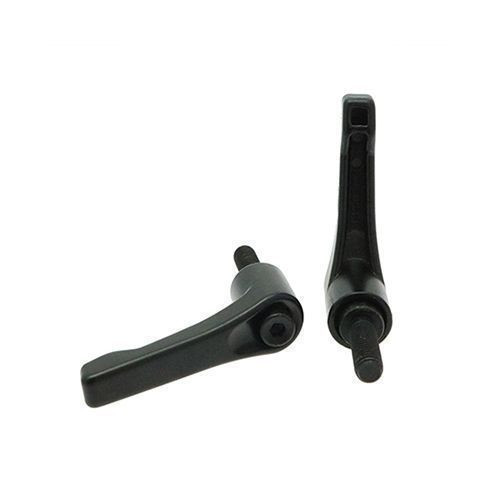

Metal Clamping Handle - HW249

Product code: HW249
View All Specifications
Metal Clamping Handle - HW249
Metal Clamping Handle - HW249
Metal Clamping Handle - HW249
Metal Clamping Handle - HW249
Metal Clamping Handle - HW249
Metal Clamping Handle - HW249
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £12.10 £14.52
10 - 24 £9.82 £11.79
25 - 49 £9.07 £10.89
50 - 99 £7.86 £9.43
100 - 499 £6.35 £7.62
500 + £5.44 £6.53

£14.52 / each


Up to 3 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 64 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
64 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread & Length M10 x 50mm
Thread Type Male
Handle Length 92mm
Height 65mm
Material Steel/Die Cast Zinc
Colour Black

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M10 x 50mm Male Metal Clamping Handle | 92mm Handle | Steel/Die Cast Zinc

Designed for test rigs, inspection fixtures and technical equipment, this M10 x 50mm ratchet clamping handle uses a male threaded stud to clamp or secure a compatible component. The black die-cast zinc handle can be repositioned through the indexed mechanism when surrounding equipment limits continuous rotation. The black die-cast zinc lever is combined with a steel threaded component for robust general-purpose industrial clamping and adjustment.

What Are Metal Clamping Handles?

Ratchet Clamping Handles provide manual tightening and adjustment without requiring a separate spanner for every operation. A metal lever provides the operating grip while the threaded boss or stud engages with the matching component.

Our broader indexed clamping handles range includes alternative ergonomic, nylon, stainless steel and metal styles for different clamping requirements.

Common Applications

  • Machine Building: Locks adjustable components, guards, guides and stops in position on suitable machinery.
  • Jigs and Fixtures: Provides repeatable hand adjustment for workholding fixtures, locating devices and production tooling.
  • Toolmaking: Secures adjustable plates, brackets and fixture components where quick manual repositioning is required.
  • Industrial Equipment: Provides a robust hand-operated clamp for suitable production, packaging and maintenance machinery.

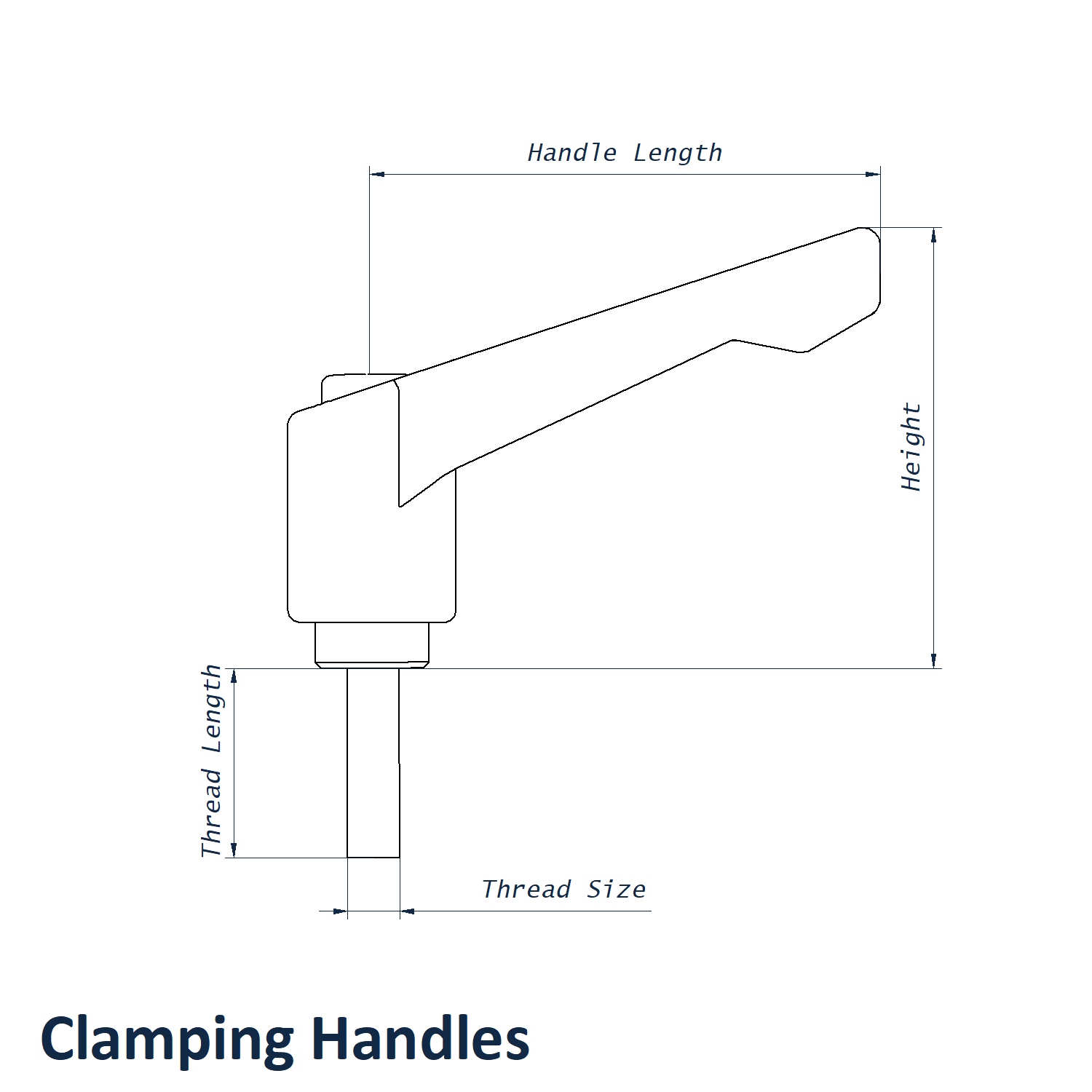

M10 x 50mm Male Metal Clamping Handle Dimensions

  • Thread & Length: M10 x 50mm
  • Thread Type: Male
  • Handle Length: 92mm
  • Height: 65mm
  • Colour: Black
  • Material: Steel/Die Cast Zinc

Key Benefits

  • 65mm overall height defines the installed handle profile.
  • Indexed ratchet mechanism allows the lever position to be reset after tightening.
  • Allen key access supports controlled fixing and adjustment during installation.
  • M10 x 50mm male thread provides the specified connection for the clamping assembly.

Browse more metal indexing handles to compare male and female threads, handle lengths and material options. If you need help selecting the correct clamping handle, call us on 01233 713581.
