Metal Countersunk Hinge - HIN141
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £12.33 | £14.80 |
| 10 - 24 | £11.46 | £13.75 |
| 25 - 49 | £10.57 | £12.69 |
| 50 - 99 | £9.17 | £11.00 |
| 100 - 499 | £7.40 | £8.88 |
| 500 + | £6.34 | £7.61 |
£14.80 / each
.png)
Product Specification
| Height | 50mm |
| Open Width | 50mm |
| Hole Centre Height | 30mm |
| Hole Centre Width | 30mm |
| Material | Powder Coated Zinc & Nickel Plated Steel |
| Open Thickness | 12mm |
| Panel Thickness | 6mm |
| Hole Size | 6.4mm |
| Colour | Black |
| Axial Load | 2200N |
| Radial Load | 1300N |
Frequently Bought Together
Total Price: £0.00

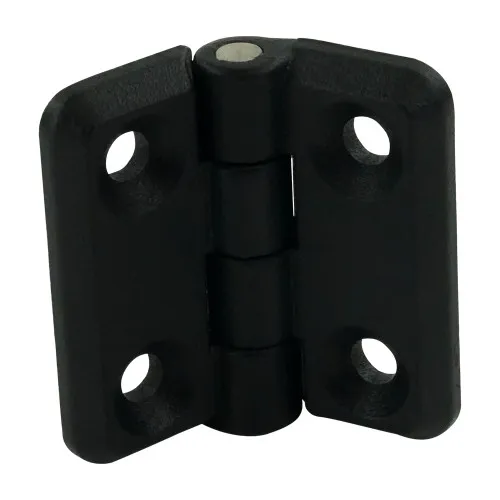

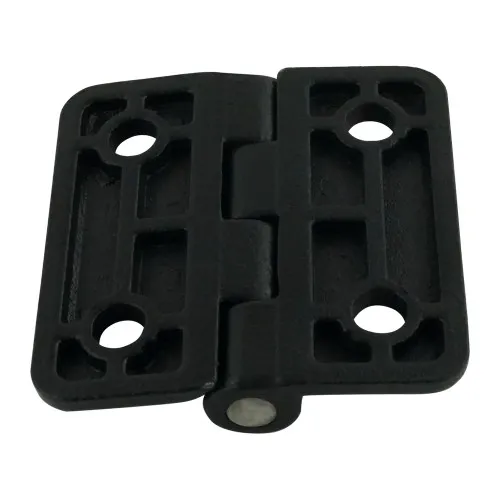

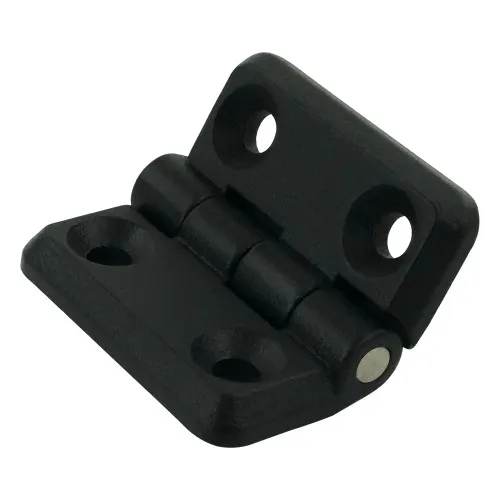

50mm x 50mm Metal Countersunk Hinge | Black | Powder Coated Zinc & Nickel Plated Steel
This 50mm x 50mm Metal Countersunk Hinge suits cabinet doors, service covers and equipment panels that need a balanced hinge footprint with a clean countersunk fixing. The 30mm x 30mm hole centre spacing gives installers a practical layout for repeatable mounting across fabricated housings and commercial equipment.
Made from Powder Coated Zinc & Nickel Plated Steel in a black finish, this hinge is a useful choice for medium duty access doors where appearance and dependable movement both matter. The 12mm open thickness, 6mm panel thickness and 6.4mm hole size make it suitable for metal frames, inspection covers and enclosure builds where standard butt hinges look too exposed.
Common Applications
- Cabinet doors on commercial equipment
- Service panels for electrical or mechanical housings
- Medium duty enclosure access points
- Retail and display fixtures with concealed screw heads

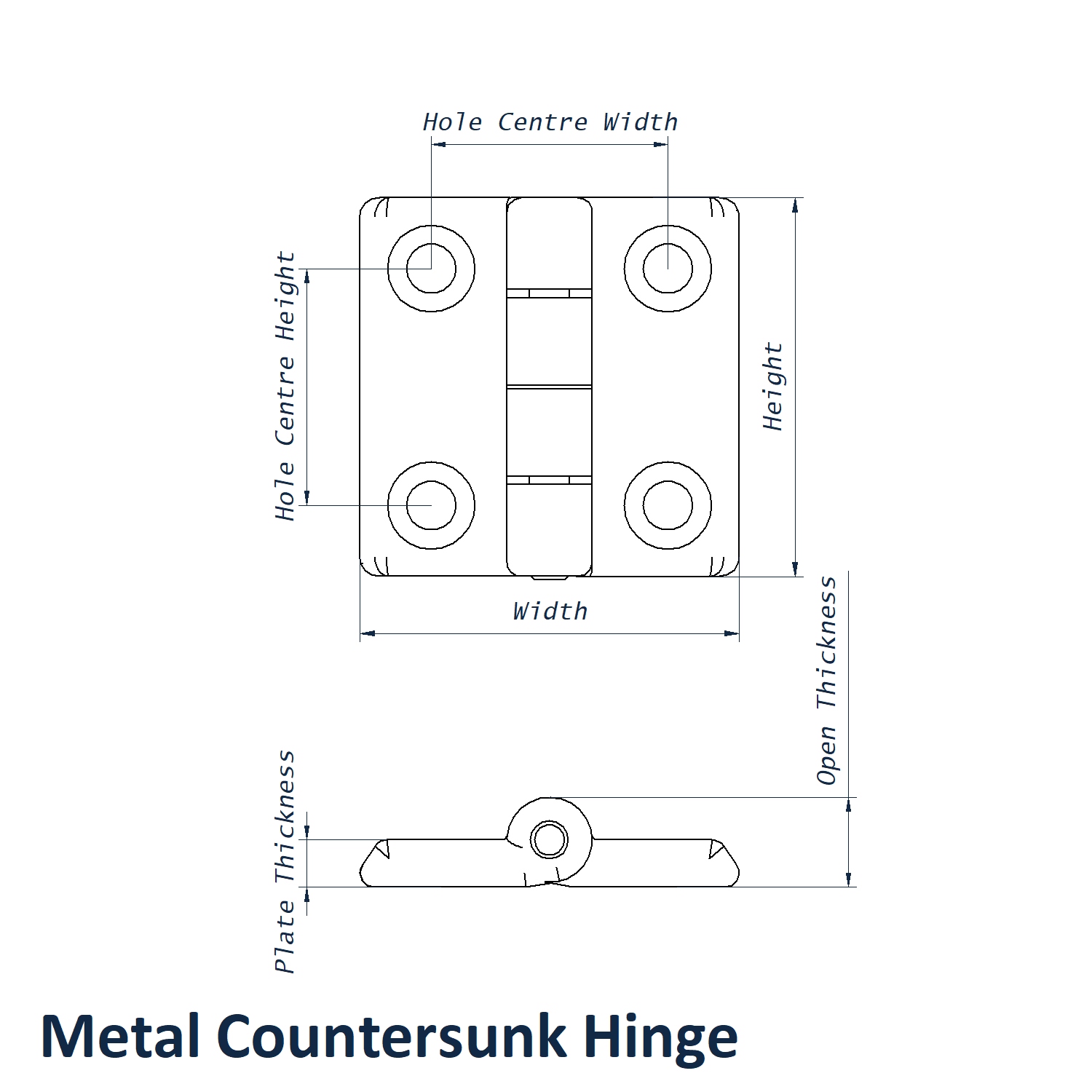

50mm x 50mm Metal Countersunk Hinge Dimensions
- Height: 50mm
- Open Width: 50mm
- Hole Centre Height: 30mm
- Hole Centre Width: 30mm
- Open Thickness: 12mm
- Panel Thickness: 6mm
- Hole Size: 6.4mm
- Colour: Black
- Material: Powder Coated Zinc & Nickel Plated Steel
Choosing The Right Metal Countersunk Hinge
Use this size where a square hinge layout is preferred and the application calls for a black countersunk hinge with stronger metal construction.
View our full range of Metal Countersunk Hinges.
