Metal Inline Lift-off Hinge - HIN100
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 24 | £6.43 | £7.72 |
| 25 - 49 | £6.30 | £7.56 |
| 50 - 99 | £6.17 | £7.40 |
| 100 + | £6.05 | £7.26 |
Product Stock

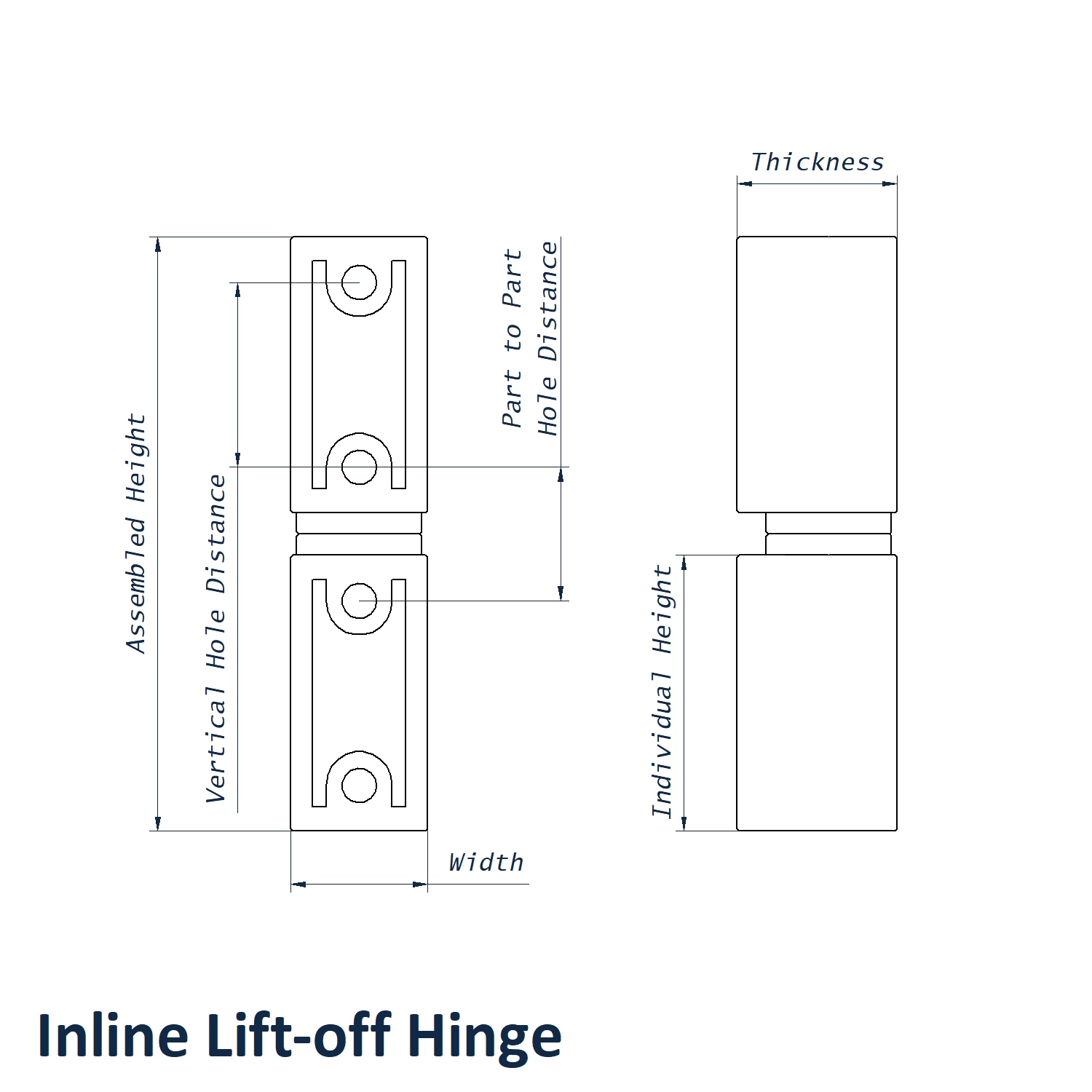

| Product Specifications | HIN100 |
|---|---|
| Height | 63mm |
| Width | 15mm |
| Individual Part Vertical Hole Distance | 19mm |
| Male To Female Vertical Hole Distance | 13mm |
| Thickness | 17.5mm |
| Female Part Height | 30.75mm |
| Male Part Height | 31.25mm |
| Thread Size | M5 |
| Colour | Black |
| Material | Die-cast Zinc |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description

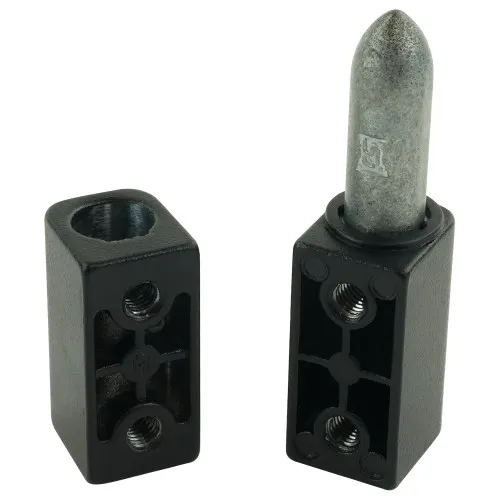

The Metal Inline Lift-off Hinge is a detachable hinge used for installing removable doors in industrial cabinets and enclosures. Two or more hinges can be installed for easy lifting and transportation, or opposing orientations can be used to prevent the door from being lifted off.

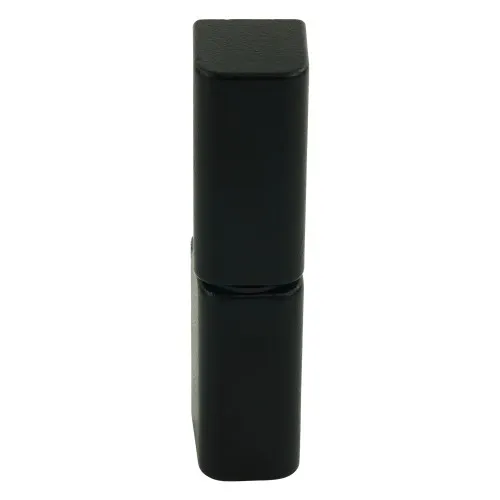

This black Metal Inline Lift-off Hinge has a height of 63mm and width of 15mm. The mounting holes are threaded M5 and are spaced out on the individual parts by a height of 19mm and when assembled, the two parts have a hole distance of 13mm.
The hinge is designed with threaded holes for a clean installation, and is commonly used in IT, HVAC, Telecoms, and manufacturing machinery for mounting doors, panels, and safety guards.
This Hinge has a Radial Load of 400N and an Axial Load of 1150N.
