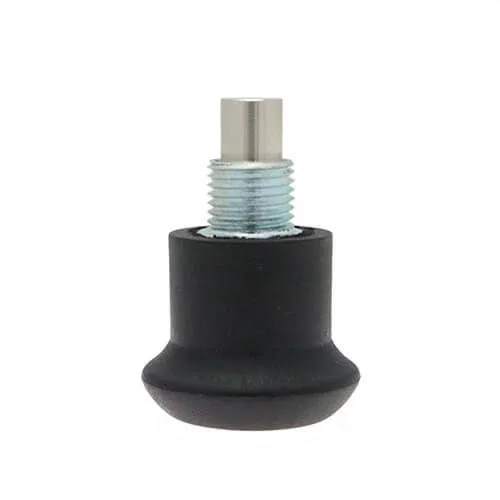

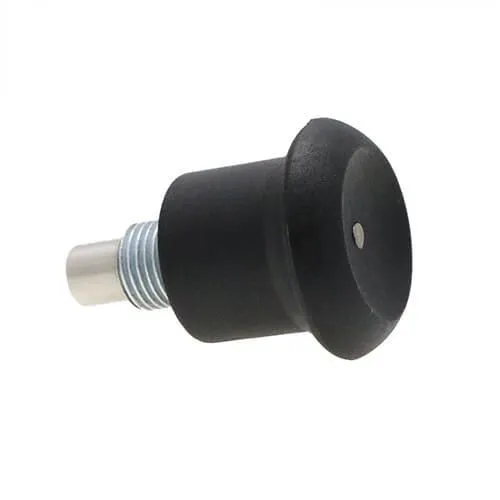

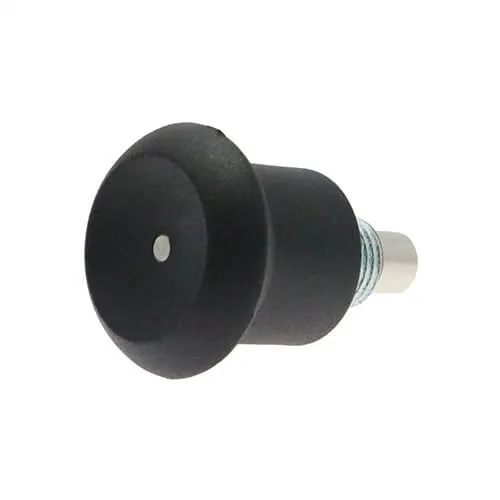

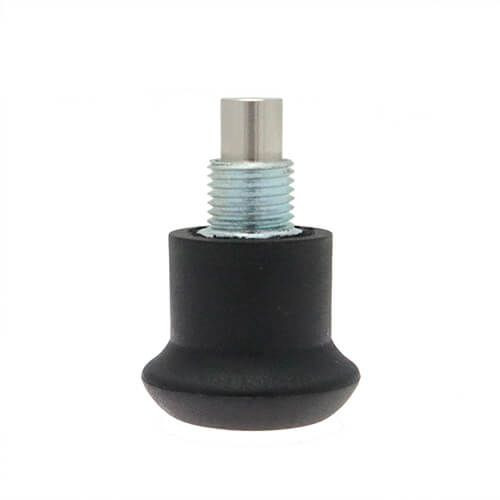

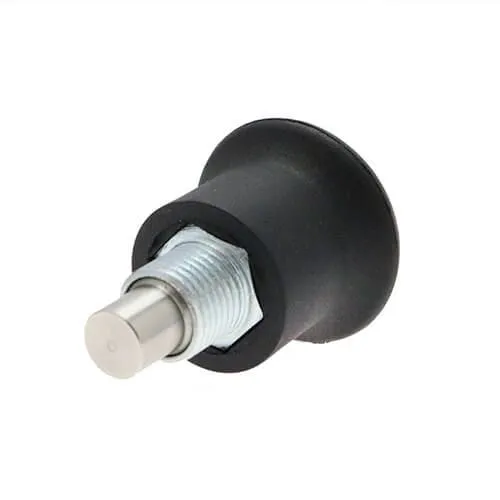

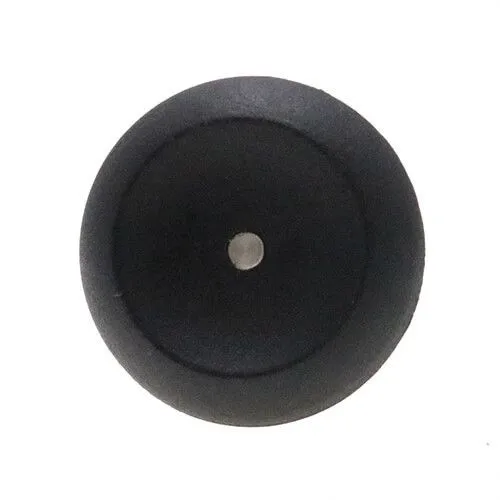

Mini Threaded Index Plungers - IND0083
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 24 | £5.24 | £6.29 |
| 25 - 49 | £5.03 | £6.04 |
| 50 - 99 | £4.83 | £5.80 |
| 100 - 499 | £4.64 | £5.57 |
| 500 + | £4.28 | £5.14 |
Product Stock

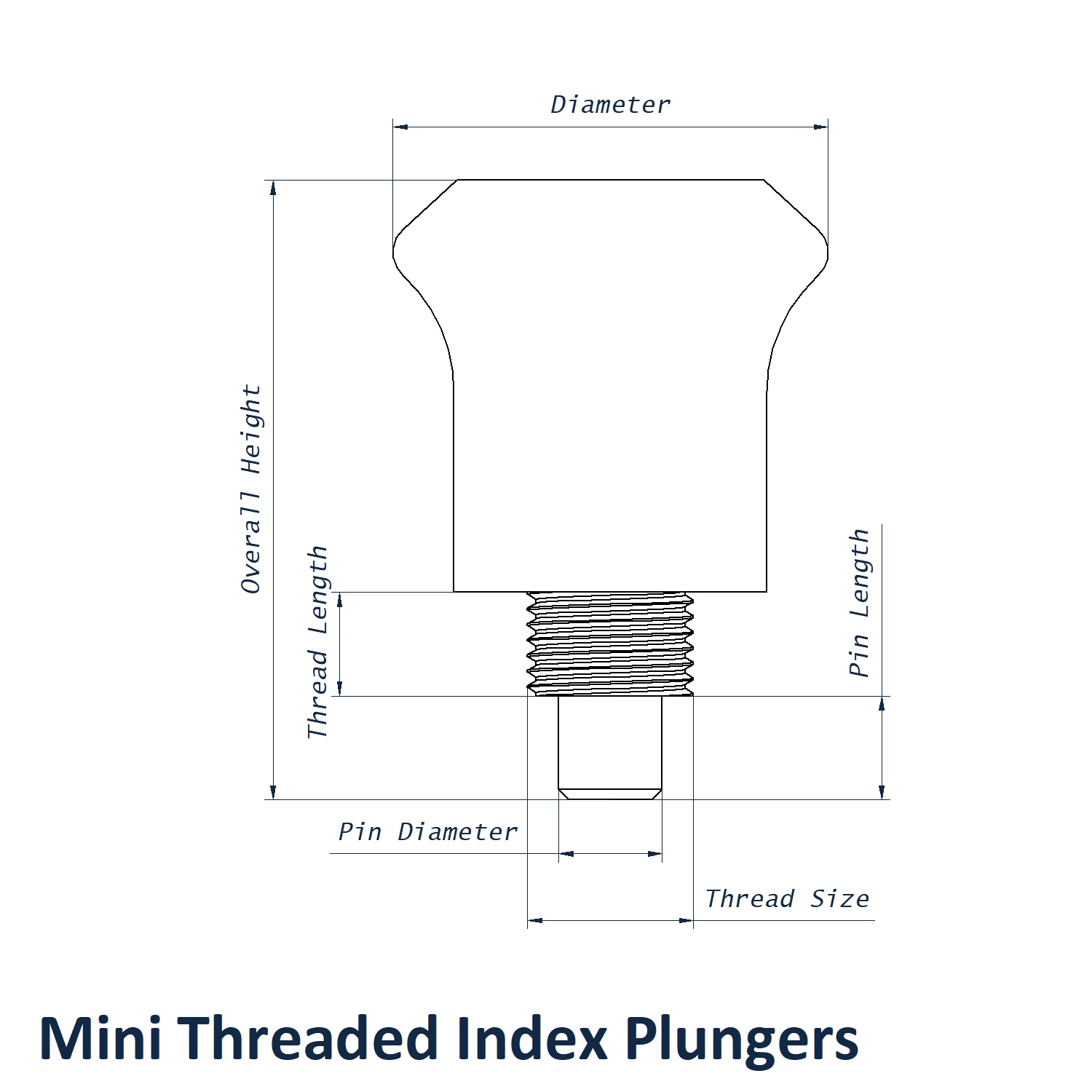

| Product Specifications | IND0083 |
|---|---|
| Thread Size | M10 x 1.0mm |
| Pin Length | 7mm |
| Plunger Diameter | 7mm |
| Thread Length | 8mm |
| Material | Nylon & Steel |
| Rest Position | No |
| Overall Size | 25mm x 35mm |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
This mini index plunger has an overall size of 25mm x 35mm. It is sized to fit a M10 x 1.0mm thread size. It has a pin length of 7mm and a thread length of 8mm. Its plunger diameter is 7mm. Does it feature a rest position? No
Mini Threaded Index Plungers are a high-quality release mechanism manufactured from thermoplastic, zinc plated steel, and stainless steel. They feature an ergonomic design, making them comfortable for consumer hardware applications. The retractable threaded pin is screwed into a female threaded object to act as a release mechanism.
Mini Threaded Index Plungers come with or without a rest position and have a minimalist design. These plungers are available in various sizes, and custom sizing may also be requested if necessary.
The knob material is thermoplastic, the body material is zinc-plated steel, and the pin and spring material is stainless steel.
