| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.98 | £4.77 |
| 10 - 24 | £3.23 | £3.87 |
| 25 - 49 | £2.98 | £3.58 |
| 50 - 99 | £2.58 | £3.10 |
| 100 - 499 | £2.08 | £2.50 |
| 500 + | £1.79 | £2.15 |
£4.77 / each
Product Specification
| Thread & Length | M5 |
| Thread Type | Female |
| Handle Length | 42mm |
| Height | 38mm |
| Material | Steel/Nylon |
| Colour | Black |
Frequently Bought Together
- Material Polypropylene
- Overall Height 22mm
- Internal Diameter 60mm
- Outside Diameter 81.5mm
- Base Thickness 3mm
- Style For Soft Floor
- Material Nylon / Steel BZP
- Weight Rating 50kg
- Stem Size 10mm x 30mm
- Wheel Diameter 50mm
- Castor Height 54.0mm
- Braked Not Braked
Total Price: £0.00

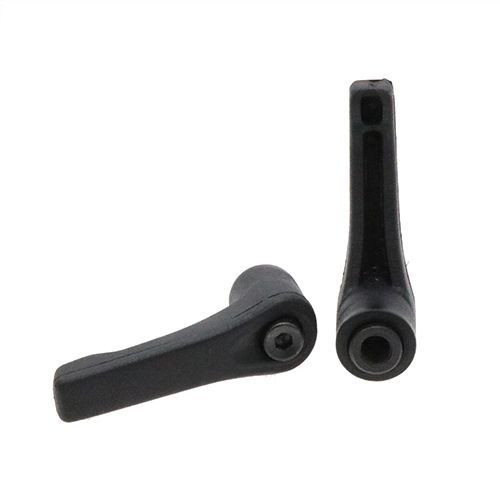

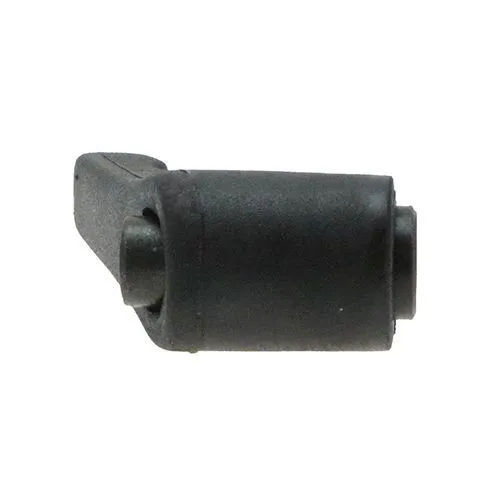

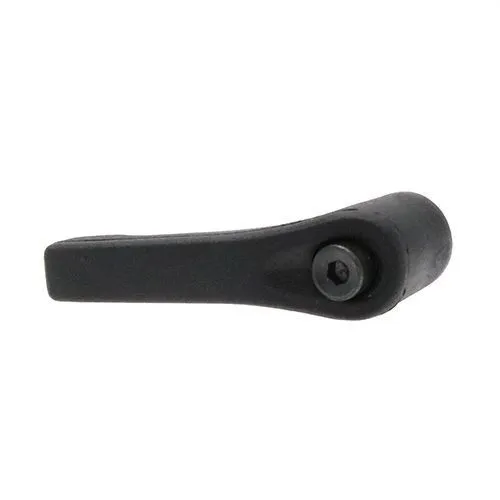

M5 Female Nylon Clamping Handle | 42mm Handle | Black Steel/Nylon
Made for repeated industrial adjustment, this M5 female clamping lever uses an internal thread for mounting onto a compatible threaded fixing. Its 38mm overall height and 42mm handle length provide the stated operating profile for machinery, fixtures and tooling. The Steel/Nylon construction combines a steel threaded component with a Nylon operating handle for lightweight manual clamping and adjustment.
What Are Nylon Clamping Handles?
Nylon Clamping Handles are adjustable hand-operated levers used to clamp, secure or reposition machine components. Their indexed ratchet mechanism allows the handle to be repositioned without altering the threaded clamping point which is particularly useful where space is restricted.
Different applications may suit other threaded clamping handles, including alternative handle profiles, materials and male or female thread options.
Common Applications
- Packaging Machinery: Allows guides, stops and adjustable machine components to be tightened and repositioned by hand.
- Inspection Fixtures: Provides repeatable clamping for gauges, test rigs and adjustable checking equipment.
- Workshop Machinery: Secures suitable guards, brackets and accessories where regular hand adjustment is required.
- Assembly Equipment: Supports quick manual clamping on suitable fixtures, locators and production aids.

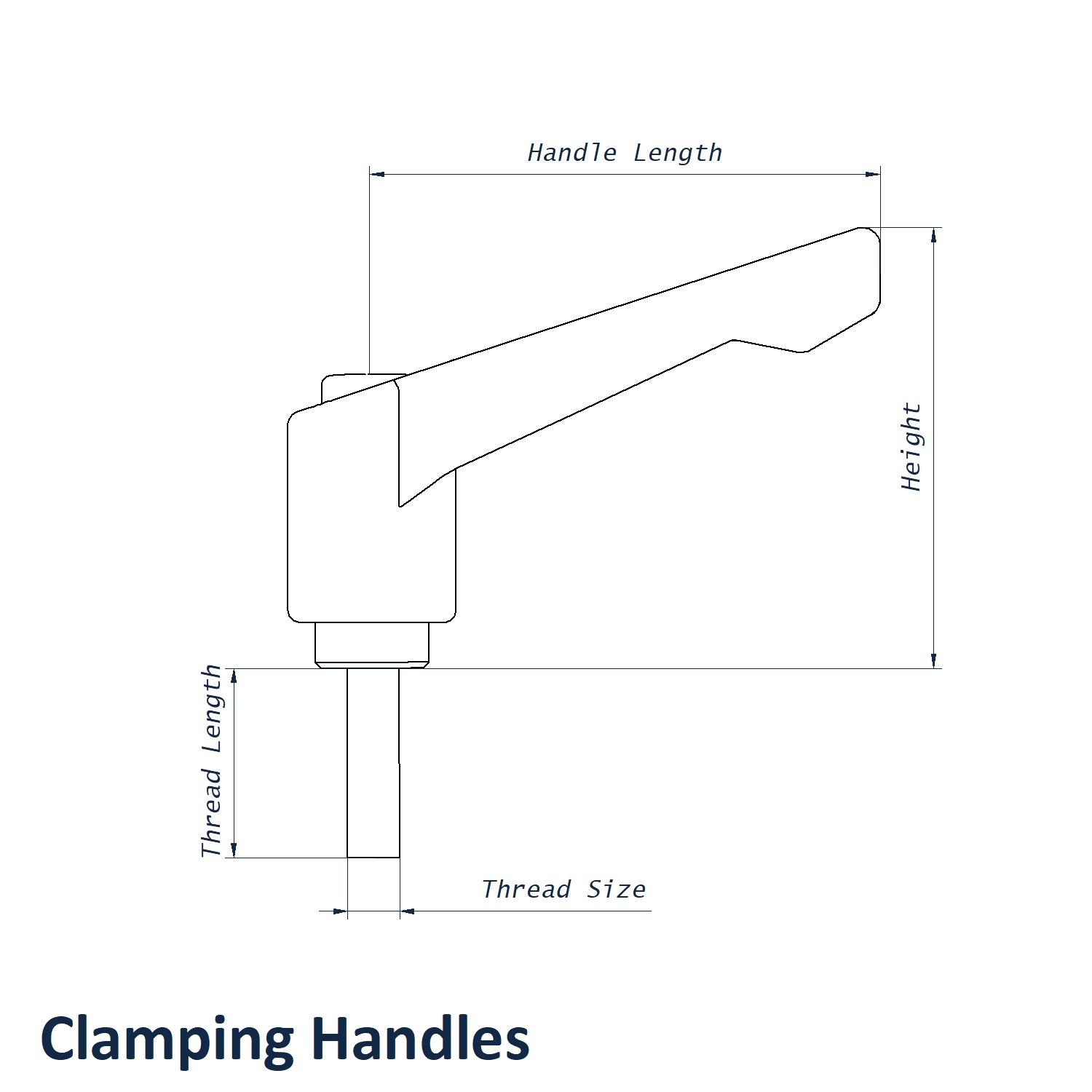

M5 Female Nylon Clamping Handle Dimensions
- Thread & Length: M5
- Thread Type: Female
- Handle Length: 42mm
- Height: 38mm
- Colour: Black
- Material: Steel/Nylon
Key Benefits
- Indexed ratchet mechanism allows the lever position to be reset after tightening.
- Allen key access supports controlled fixing and adjustment during installation.
- M5 female thread provides the specified connection for the clamping assembly.
- 38mm overall height defines the installed handle profile.
Browse more nylon indexing handles to compare male and female threads, handle lengths and thread sizes. If you need help selecting the correct clamping handle, call us on 01233 713581.
| Code | Material | Colour | Height | Thread Type | Handle Length | Thread & Length | Stock | |
|---|---|---|---|---|---|---|---|---|
| HW174 | Steel/Nylon | Black | 38mm | Female | 42mm | M6 |
Checking...
|
|
| HW175 | Steel/Nylon | Black | 50mm | Female | 65mm | M6 |
Checking...
|
|
| HW176 | Steel/Nylon | Black | 50mm | Female | 65mm | M8 |
Checking...
|
|
| HW177 | Steel/Nylon | Black | 60mm | Female | 83mm | M8 |
Checking...
|
|
| HW178 | Steel/Nylon | Black | 60mm | Female | 83mm | M12 |
Checking...
|
|
| HW179 | Steel/Nylon | Black | 60mm | Female | 83mm | M10 |
Checking...
|
|
