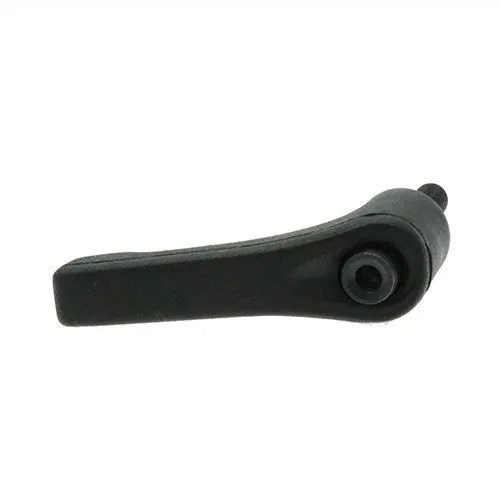

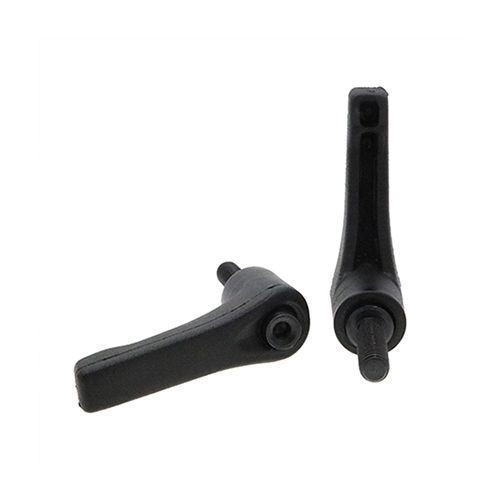

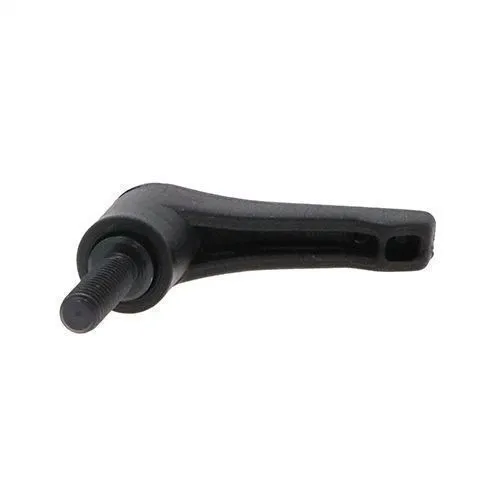

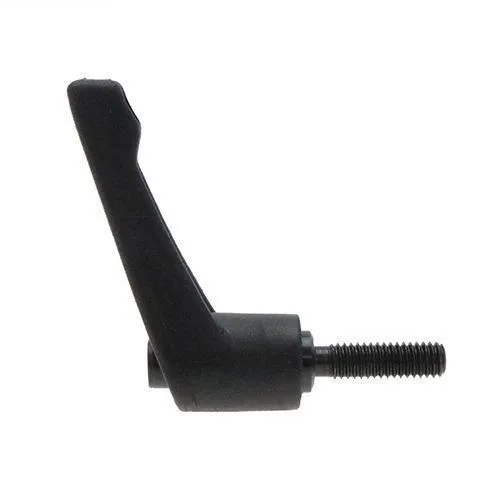

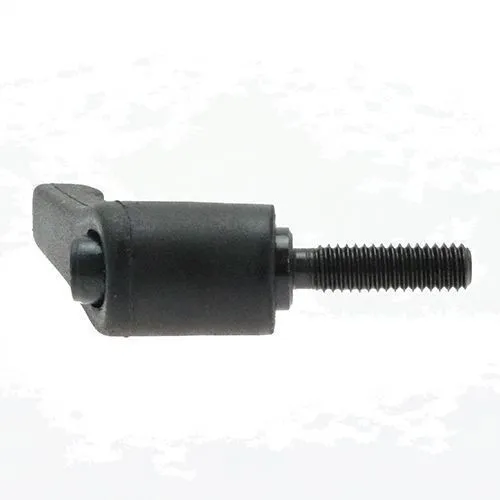

Nylon Clamping Handle - HW188

Product code: HW188
View All Specifications
Nylon Clamping Handle - HW188
Nylon Clamping Handle - HW188
Nylon Clamping Handle - HW188
Nylon Clamping Handle - HW188
Nylon Clamping Handle - HW188
Nylon Clamping Handle - HW188
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £6.18 £7.42
10 - 24 £5.03 £6.03
25 - 49 £4.63 £5.56
50 - 99 £4.02 £4.82
100 - 499 £3.24 £3.89
500 + £2.78 £3.34

£7.42 / each


Up to 13 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 605 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
605 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread & Length M10 x 20mm
Thread Type Male
Handle Length 83mm
Height 60mm
Material Steel/Nylon
Colour Black

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M10 x 20mm Male Nylon Clamping Handle | 83mm Handle | Black Steel/Nylon

For packaging machinery and production-line adjustments, this M10 x 20mm ratchet clamping handle provides a threaded clamping stud and 83mm operating lever in one assembly. The indexed mechanism helps users tighten the fixing then move the handle to a more convenient resting position. The Steel/Nylon construction combines a steel threaded component with a Nylon operating handle for lightweight manual clamping and adjustment.

What Are Nylon Clamping Handles?

Nylon Clamping Handles are adjustable hand-operated levers used to clamp, secure or reposition machine components. Their indexed ratchet mechanism allows the handle to be repositioned without altering the threaded clamping point which is particularly useful where space is restricted.

Our broader threaded clamping handles range includes alternative ergonomic, metal and specialist styles for different clamping requirements.

Common Applications

  • Machine Building: Locks adjustable components, guards, guides and stops in position on suitable machinery.
  • Jigs and Fixtures: Provides repeatable hand adjustment for workholding fixtures, locating devices and production tooling.
  • Toolmaking: Secures adjustable plates, brackets and fixture components where quick manual repositioning is required.
  • Industrial Equipment: Provides a lightweight hand-operated clamp for suitable production, packaging and maintenance machinery.

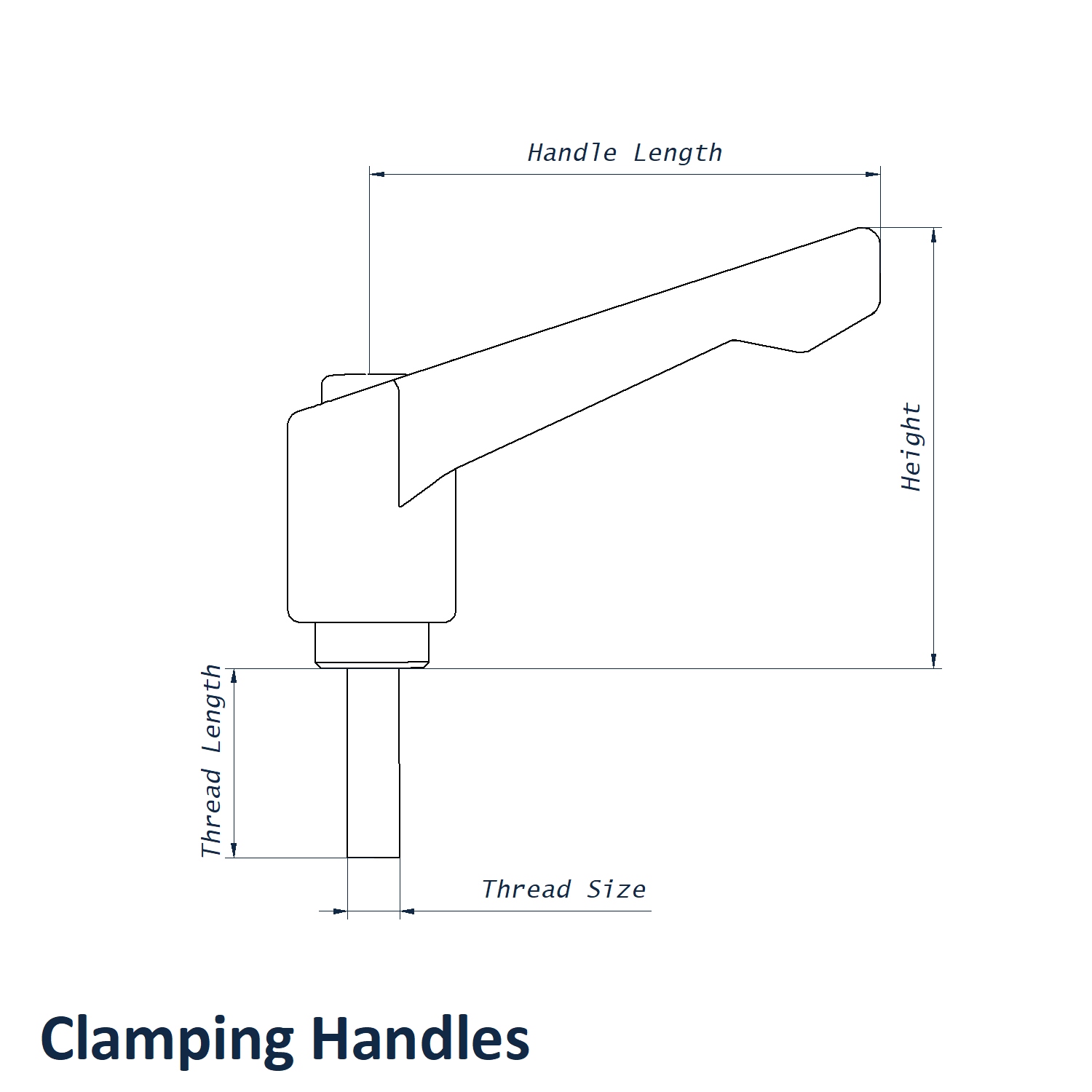

M10 x 20mm Male Nylon Clamping Handle Dimensions

  • Thread & Length: M10 x 20mm
  • Thread Type: Male
  • Handle Length: 83mm
  • Height: 60mm
  • Colour: Black
  • Material: Steel/Nylon

Key Benefits

  • Indexed ratchet mechanism allows the lever position to be reset after tightening.
  • Allen key access supports controlled fixing and adjustment during installation.
  • M10 x 20mm male thread provides the specified connection for the clamping assembly.
  • 60mm overall height defines the installed handle profile.

View our adjustable nylon clamping handles in other thread sizes and handle lengths. If you are unsure which option suits your machinery or fixture, contact our team on 01233 713581.
